When selecting a premium automotive oscilloscope for engine tuning, it’s vital to balance performance, usability, and durability. The Micsig Automotive Tablet Oscilloscope ATO1004 stands out for its large touchscreen and versatile channels, making it ideal for complex diagnostics. The Hantek 6254BE offers impressive bandwidth at a competitive price, perfect for professionals needing detailed waveforms. However, higher-end models often come with tradeoffs like complexity or cost. Continue reading for a detailed comparison to help you find the best fit for your tuning needs.
Get business pricing on garage and car supplies
- Business-only prices and quantity discounts
- Tax-exempt purchasing
- Multiple users, one account, clear invoices
Complete the kit
Key Takeaways
- High bandwidth and multiple channels are essential for detailed engine diagnostics, as seen in the Hantek 6254BE and Micsig 12-bit models.
- Portability varies greatly; handheld options like the Micsig SATO1004 excel for field use, while benchtop models offer more features but less mobility.
- Price often correlates with features: more channels and higher sampling rates typically come at a premium.
- Ease of use and display quality are critical; touchscreen interfaces like on the TOPDON Phoenix Scope simplify complex measurements.
- Compatibility with sensors and accessories influences versatility; models with extensive sensor support like the Hantek 8-channel are more adaptable.
| premium automotive oscilloscope options for engine tuning | Channels | Compatibility |
|---|---|---|
| Micsig Automotive Tablet Oscil | 4 | — |
| Hantek 6254BE Digital Oscillos | 4 | Windows 7/8/10/11 |
| Micsig 12-bit High Resolution | 4 | — |
| Hantek 6074BE Digital Oscillos | 4 | Windows 10/8/7 |
| TOPDON Phoenix Scope | 4 | Phoenix Max / Smart / Elite / Lite series |
| Hantek 8 Channels Automotive O | — | — |
| Autel MaxiScope MP608 4-Channe | 4 | Autel Tablet & Windows PC |
| Micsig SATO1004 Portable Handh | — | — |
More Details on Our Top Picks

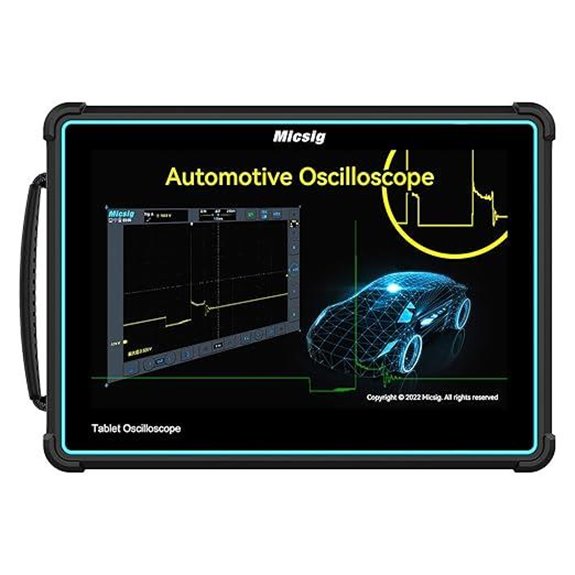

Micsig Automotive Tablet Oscilloscope ATO1004, 4 Channels, 10.1-Inch Touchscreen
The Micsig ATO1004 stands out as the most comprehensive option for professional automotive diagnostics due to its large, high-resolution touchscreen and versatile connectivity. Compared with the Hantek 6254BE, it offers a much more intuitive interface, making complex tests easier to perform, though it comes with a higher price tag and a heavier form factor. Its four channels and support for various test types make it ideal for advanced troubleshooting, but the reliance on battery power can limit long-term use without charging. This model is best suited for experienced technicians who need a portable, all-in-one diagnostic tool and are willing to handle its complexity.
Pros:- Large, high-resolution 10.1-inch touchscreen simplifies complex diagnostics
- Versatile connectivity including Wi-Fi, HDMI, and USB for flexible testing setups
- Supports a wide range of automotive diagnostics, including sensors and network communications
Cons:- Battery life can be inconsistent with intensive use
- Its advanced features might be overwhelming for novice users
Best for: Professional automotive technicians needing a portable, all-in-one diagnostic display with touchscreen control.
Not ideal for: Beginners or hobbyists who prefer simple, standalone oscilloscopes without extensive connectivity options.
- Display:10.1-inch 1280×800 TFT-LCD
- Channels:4
- Storage:32GB
- Waveform Depth:110 Mpts
- Battery:7.4V, 7500mAh, up to 5 hours
- Ports:Wi-Fi, Type-C, LAN, HDMI, USB, GND, DC
Our verdict“This oscilloscope is perfect for experienced professionals seeking a portable, feature-rich diagnostic tool with a user-friendly interface.”
Hantek 6254BE Digital Oscilloscope 250MHz Bandwidth Automotive Oscilloscope
The Hantek 6254BE offers a compelling balance of performance and affordability, with its 250MHz bandwidth and 1GSa/s sampling rate making it suitable for detailed automotive diagnostics. Unlike the Micsig AHO14-200, it lacks a built-in display, requiring connection to a Windows PC, which can be less convenient but keeps costs down. Its portability and automatic measurement features make it a practical choice for mobile technicians, though it is limited to Windows OS, excluding Mac or Linux users. This model is ideal for users who prioritize high performance at a more accessible price point and are comfortable working with a connected PC interface.
Pros:- High bandwidth and sampling rate enable detailed signal analysis
- Supports multiple automatic measurements and waveform recordings
- Portability and compatibility with Windows systems make it versatile for field use
Cons:- Requires a Windows PC, limiting portability for standalone use
- No native display, adding extra setup complexity
Best for: Automotive professionals who need high-bandwidth diagnostics on a budget and are comfortable using a Windows-based PC.
Not ideal for: Hobbyists or beginners seeking a standalone, easy-to-use device with a built-in display.
- Channels:4
- Bandwidth:250MHz
- Sampling Rate:1GSa/s
- Input Sensitivity:2mV-10V/DIV
- Interface:USB 2.0
- Compatibility:Windows 7/8/10/11
Our verdict“This oscilloscope offers high performance for experienced users who prioritize value and are comfortable with PC-based testing.”
Micsig 12-bit High Resolution Automotive Oscilloscope AHO14-200, 4 Channels, 200MHz Bandwidth, 1GSa/s Sampling Rate, 8″ Touch Screen, 16000mAh Battery, Master Kit
The Micsig AHO14-200 excels in capturing digital signals with its 12-bit resolution and rugged design, making it a top choice for field technicians performing precise diagnostics. The 8-inch HD touchscreen enhances usability compared to the smaller displays of other high-performance models like the Hantek 6074BE, though it adds weight and complexity. Its weather-resistant build and long battery life make it suitable for demanding environments, but the device’s weight and feature depth may require some training. It’s best suited for professionals needing detailed digital analysis in challenging conditions.
Pros:- 12-bit ADC delivers highly detailed digital signals
- Rugged, weather-resistant design for field durability
- Large 8-inch touchscreen simplifies complex measurements
- Long battery life supports extended field use
Cons:- Relatively heavy and possibly cumbersome for extended handheld use
- Complex features may require additional training
Best for: Experienced technicians requiring high-resolution, durable equipment for digital signal debugging in rugged environments.
Not ideal for: Hobbyists or newcomers who prefer lightweight, simple devices with straightforward interfaces.
- Channels:4
- Bandwidth:200MHz
- Sampling Rate:1GSa/s
- Resolution:12-bit
- Memory Depth:110M points
- Display:8-inch HD Touch Screen
- Battery:16000mAh
Our verdict“This scope is tailored for professionals demanding high-fidelity digital diagnostics in tough conditions, accepting the tradeoff of added weight.”
Hantek 6074BE Digital Oscilloscope 70MHz 1GSa/s 4CH USB Diagnostic Tool
The Hantek 6074BE combines multiple functions into one compact device, offering a 70MHz bandwidth with 4 channels and a 1GSa/s sampling rate. Compared with the higher-bandwidth options like the Hantek 6254BE, it provides broader utility for hobbyists and professionals alike, including multimeter and waveform generator functions. Its reliance on a Windows PC, however, limits its portability and user-friendliness for field use. This device makes sense for those seeking an all-in-one troubleshooting tool that can handle a variety of electronic diagnostics but is less suitable for standalone, high-frequency digital analysis.
Pros:- Multi-function capabilities including multimeter and waveform generator
- Supports automatic measurements and waveform recordings
- Portable with a high sampling rate for general testing
Cons:- Requires familiarity with software-based tools
- Limited to Windows OS, reducing flexibility for some users
Best for: Technicians needing a multi-function, portable diagnostic tool compatible with Windows for diverse testing tasks.
Not ideal for: Users looking for standalone, high-bandwidth oscilloscopes or those without a Windows environment.
- Bandwidth:70MHz
- Sampling Rate:1GSa/s
- Channels:4
- Input Sensitivity:2mV-10V/DIV
- Display:High-resolution colour LCD
- Compatibility:Windows 10/8/7
Our verdict“This tool is ideal for versatile, multi-purpose diagnostics where portability and broad functionality are priorities, despite its OS limitations.”
TOPDON Phoenix Scope, 4 Channel Automotive Oscilloscope with Accessories
The TOPDON Phoenix Scope offers advanced features like waveform storage, FFT analysis, and customizable auto measurements, making it suitable for detailed automotive diagnostics. Unlike the Micsig ATO1004, which emphasizes touchscreen control, the Phoenix excels in advanced signal analysis with fast storage and compatibility with various Phoenix diagnostic tools. Its trigger functions and user-defined settings are tailored for experienced technicians aiming for precision, though it requires specific accessories and may not be as intuitive for casual users. This scope is best for those performing in-depth troubleshooting where signal integrity and analysis speed matter most.
Pros:- Supports advanced waveform storage and FFT analysis
- Fast save times improve workflow efficiency
- Compatible with multiple Phoenix diagnostic tools
- Customizable system settings for tailored diagnostics
Cons:- Limited input to specific Phoenix diagnostic systems
- Input methods may be limited without additional accessories
- Designed mainly for automotive use, less versatile for other applications
Best for: Automotive professionals performing detailed circuit analysis with a need for fast waveform storage and customizable measurements.
Not ideal for: Beginners or those seeking a simple, plug-and-play solution without needing extensive signal analysis features.
- Memory Depth:50M
- Channels:4
- Compatibility:Phoenix Max / Smart / Elite / Lite series
- Waveform Storage:Yes
- FFT Analysis:Yes
- Auto Measurements:23 types
Our verdict“This scope suits experienced automotive technicians demanding fast, detailed signal analysis within a specialized diagnostic ecosystem.”

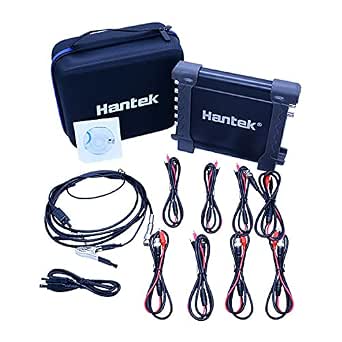

Hantek 8 Channels Automotive Oscilloscope with 80 Types Ignition Sensor
This Hantek model stands out for its ability to handle a wide variety of vehicle testing tasks with 8 channels and over 80 diagnostic functions, including ignition, sensors, and bus detection. Compared with the Autel MaxiScope MP608, it offers more channels—ideal for complex engine diagnostics—though its bulkier design makes it less portable. The scope excels in waveform recording and report generation, streamlining long-term testing and documentation, which is less straightforward on the Autel’s more streamlined interface. However, its setup can be intimidating for those new to oscilloscopes, and the limited detailed specs mean some users may find it hard to gauge its full capabilities at a glance. This pick makes the most sense for professionals performing comprehensive vehicle diagnostics who can handle a slightly less portable device.
Pros:- Multiple diagnostic functions covering ignition, sensors, bus detection, and more
- Supports waveform recording and report generation, saving time on long-term testing
- Includes essential accessories like high-pressure ignition probes and testing clips
Cons:- Bulkier design reduces portability, making it less convenient for field use
- Complex setup may be overwhelming for users new to oscilloscopes
- Limited detailed technical specs may hinder precise capability assessment
Best for: Advanced technicians needing multi-function testing and waveform analysis for complex engine troubleshooting
Not ideal for: Beginners or hobbyists who prioritize portability and simple setup over extensive diagnostic features
- Number of Channels:8
- Supported Functions:Ignition, Sensor, Bus detection, Starter, Charging circuits
- Connectivity:USB 2.0
- Dimensions:7.48 x 6.57 x 1.38 inches
- Weight:4.33 pounds
- Included Accessories:High pressure ignition probe, testing clips, USB cable, software CD, carry case
Our verdict“Best suited for professionals requiring a versatile, multi-channel scope for detailed vehicle diagnostics.”
Autel MaxiScope MP608 4-Channel Automotive Oscilloscope
Compared with the Hantek, the Autel MaxiScope MP608 offers 4 channels with high measurement accuracy, making it ideal for detailed engine analysis. Its 12-bit resolution and ±1% accuracy provide a level of precision that benefits professionals focused on exact diagnostics, especially when paired with its multiple visualization modes. The seamless integration with tablets and PCs, along with cloud features, enhances flexibility, but the complex interface may require training, making it less suitable for users who prefer plug-and-play simplicity. Its higher cost can be a barrier for smaller shops or hobbyists with less frequent diagnostic needs. This scope makes the most sense for users who value precision and connectivity over raw channel count and are willing to handle a steeper learning curve.
Pros:- High measurement accuracy with 12-bit resolution
- Multiple visualization modes for comprehensive data analysis
- Supports tablet and PC connectivity with cloud synchronization
Cons:- Interface can be complex, requiring training for effective use
- Higher price point may not suit casual or hobbyist users
- Limited to 4 channels, which may be restrictive for very complex testing
Best for: Experienced technicians needing precise measurements and versatile visualization options for engine diagnostics
Not ideal for: Beginners or casual testers who seek straightforward operation without complex interface or high cost
- Measurement Accuracy:±1%
- Vertical Resolution:12-bit
- Channels:4
- Compatibility:Autel Tablet & Windows PC
Our verdict“Ideal for professionals prioritizing high-precision diagnostics and versatile data analysis tools.”
Micsig SATO1004 Portable Handheld Automotive Oscilloscope
The Micsig SATO1004 stands out for its portability, offering a handheld design with an integrated Android OS that simplifies on-the-go diagnostics. Unlike the larger, more feature-rich options like the Hantek or Autel, this model emphasizes mobility without sacrificing core functionality, supporting remote operation via smartphone app and multiple connectivity options. Its compact size makes it perfect for fieldwork or quick checks, but the limited technical details and unknown battery life could be drawbacks for users needing extended, heavy-duty diagnostics. Its focus on remote operation and portability makes it less ideal for detailed, long-term testing projects where more channels or advanced features are required. This makes it best suited for mobile technicians or DIYers who value convenience over extensive analytical capabilities.
Pros:- Portable and easy to operate in various vehicle environments
- Supports remote operation via smartphone app
- Multiple connectivity options including Wi-Fi and USB
Cons:- Limited details on battery life and runtime
- No specific price information, which could be a concern for budget-conscious buyers
- Limited technical specs may restrict complex diagnostic use
Best for: Mobile mechanics or technicians needing quick, portable diagnostics in the field
Not ideal for: Shop-based professionals or users requiring extensive testing features and long-term data collection
- Operating System:Android
- Storage:32GB internal
- Connectivity:Wi-Fi, Type-C, LAN, HDMI, USB
- Power:DC Power
- I/O Ports:Wi-Fi, Type-C, LAN, HDMI, USB
Our verdict“Best suited for mobile diagnostics and quick testing where portability and remote control are priorities.”
How We Picked
These products were evaluated based on their technical specifications, build quality, and usability in real-world engine tuning scenarios. Priority was given to models offering high bandwidth, multiple channels, and reliable sampling rates, as these directly impact diagnostic accuracy. We also considered ease of use, portability, and accessory support to ensure the options suit professional and serious DIY tuners alike. The ranking reflects a balance between performance and value, highlighting models that excel in precision without unnecessary complexity or cost.| premium automotive oscilloscope options for engine tuning | Compatibility |
|---|---|
| Micsig Automotive Tablet Oscil | — |
| Hantek 6254BE Digital Oscillos | Windows 7/8/10/11 |
| Micsig 12-bit High Resolution | — |
| Hantek 6074BE Digital Oscillos | Windows 10/8/7 |
| TOPDON Phoenix Scope | Phoenix Max / Smart / Elite / Lite series |
| Hantek 8 Channels Automotive O | — |
| Autel MaxiScope MP608 4-Channe | Autel Tablet & Windows PC |
| Micsig SATO1004 Portable Handh | — |
Factors to Consider When Choosing Premium Automotive Oscilloscope Options For Engine Tuning
Choosing the right premium automotive oscilloscope involves considering several key factors. Beyond raw specifications, understanding how each feature impacts engine diagnostics can save money and improve results. This guide outlines the main factors to evaluate, helping you identify the model that best matches your expertise and needs.Bandwidth and Sampling Rate
High bandwidth (measured in MHz) allows you to capture fast ignition events and sensor signals accurately. A sampling rate of at least 1 GSa/s (giga samples per second) ensures detailed waveform capture, revealing subtle engine issues. Opting for higher bandwidth and sampling rates generally increases cost but is essential for precise diagnostics on modern engines with rapid electronic signals.
Channel Count and Input Types
Multiple channels enable simultaneous monitoring of various engine sensors, which is critical for correlating data points. Four channels are standard among high-end models, but some offer more for complex setups. Compatibility with ignition sensors, MAP/MAF sensors, and other inputs varies; selecting a scope with versatile input types can prevent future upgrade costs and expand diagnostic capabilities.
Display and Usability
An intuitive interface, preferably with a touchscreen, reduces setup time and minimizes user error. High-resolution displays allow for clearer waveform analysis, especially when diagnosing intricate engine behaviors. Consider the size and portability—larger screens are easier to interpret but may sacrifice mobility, an important factor for on-site tuning or field work.
Build Quality and Durability
Premium scopes should withstand the rigors of automotive environments, including vibrations, dust, and temperature fluctuations. Rugged construction and reliable connectors ensure longevity, making them a worthwhile investment. Cheaper models may lack durability, leading to repair costs or replacement over time, especially for professional use.
Additional Features and Accessories
Features like battery operation, extensive sensor support, and included accessories add value. A built-in battery, such as on the Micsig 12-bit model, offers portability for field diagnostics. Compatibility with various sensors and the availability of software updates can significantly enhance the scope’s versatility, justifying a higher price point.
Frequently Asked Questions
Can I use a general-purpose oscilloscope for engine tuning?
While a general-purpose oscilloscope can sometimes be used for basic engine diagnostics, it often lacks the specialized features needed for detailed automotive work. High bandwidth, multiple channels, and automotive-specific inputs are critical for capturing rapid ignition signals and sensor data accurately. Investing in a scope designed for engine tuning ensures more reliable results and reduces troubleshooting time.
What is the most important feature for a premium automotive oscilloscope?
The most vital feature is high bandwidth combined with a fast sampling rate, as these determine the scope’s ability to accurately reproduce rapid engine signals. Without sufficient bandwidth, you risk missing critical waveform details. For engine tuning, these specs directly impact diagnostic precision, making them a priority over other features like display size or number of channels alone.
Is portability more important than advanced features?
Portability is crucial if you frequently perform on-site diagnostics or work in the field. However, it often comes at the expense of some advanced features like higher bandwidth or more channels. If your work is primarily in a workshop, prioritizing advanced specifications over portability may yield better diagnostic results. Conversely, mobile mechanics need a balance, favoring models like handheld scopes with good performance.
How much should I expect to spend on a premium automotive oscilloscope?
Premium automotive oscilloscopes typically range from around $2,000 to over $5,000, depending on their capabilities. Higher-end models with more channels, faster sampling, and automotive-specific features tend to be more expensive. It’s important to match the scope’s specs to your actual diagnostic needs — paying more for features you’ll use ensures better value and longer-term satisfaction.
Are there specific brands I should focus on?
Brands like Hantek, Micsig, and Autel are well-regarded in the automotive oscilloscope market, offering reliable performance and good support. Each has its strengths: Hantek often provides higher bandwidth options; Micsig offers portable and user-friendly designs; Autel is known for integrated automotive diagnostics. Focusing on reputable brands reduces the risk of compatibility issues and ensures access to technical support and updates.
Conclusion
For professional engine tuning, the Micsig 12-bit High Resolution Automotive Oscilloscope offers a well-rounded combination of high performance and usability, making it the best overall choice. Budget-conscious technicians who need reliable diagnostics without breaking the bank should consider the Hantek 6254BE for its impressive specs at a competitive price. Beginners or those primarily working in the field will benefit from portable options like the Micsig SATO1004, which balances ease of use with advanced features. For high-end, feature-rich diagnostics, the Hantek 8 Channels Automotive Oscilloscope provides extensive sensor support and versatility, suited for complex setups. Ultimately, your choice should align with your specific tuning needs, workspace environment, and budget constraints.
