Key Takeaways
- Airflow (CFM) is the single biggest differentiator: units under 200 CFM suit soldering and light TIG, while 1000+ CFM units are required for heavy MIG and stick welding.
- H13 HEPA filters are the gold standard for capturing fine welding fume particulate, but carbon layers are essential for odor control — the best units combine both.
- Portable benchtop units like the VEVOR and BAOSHISHAN are ideal for hobbyists, but industrial shops should prioritize wall-mounted or dual-arm extractors to keep hoses out of the way.
- Filter replacement cost varies wildly across this roundup — some budget units use cheap multi-layer pads, while premium HEPA cartridges can cost several times the unit’s initial price.
- Noise levels matter more than most buyers expect: a 70 dB extractor running all day is far more tolerable than an 80 dB unit, and soundproofed chambers (like the 180W model) are a real advantage.
| JJ-M131 Fume Extractor |  | Best for Beginners | Filtration System: 3-stage (Pre-filter, HEPA, Activated Carbon) | Airflow: 180-200m³/h | Noise Level: Below 50dB | VIEW ON AMAZON | See Our Full Breakdown |
| Solder Fume Extractor 70W |  | Best Compact Pick | Power: 70 watts | Airflow: 155m³/h | Filter System: Primary filter cotton, H13 HEPA, activated carbon | VIEW ON AMAZON | See Our Full Breakdown |
| VEVOR Solder Fume Extractor |  | Best Value for Small Shops | Power: 150W | Airflow: 165 CFM | Filtration Efficiency: 99.91% | VIEW ON AMAZON | See Our Full Breakdown |
| FumeClear FC-100A with Remote |  | Best Remote Convenience | Weight: 20.8 pounds | Dimensions: 10.6 x 8.7 x 10.8 inches | Power Source: 110 volts AC | VIEW ON AMAZON | See Our Full Breakdown |
| FumeClear FC-100A (Non-Remote) |  | Best for Quiet Benchtop Use | Maximum Power: 100W | Filtration Efficiency: 99.97% | Filtration Layers: 3 layers + 10 pre-filters | VIEW ON AMAZON | See Our Full Breakdown |
| Extract-All Portable Dual-Arm Fume Extractor for Industrial Applications |  | Best Heavy-Duty Portable | Weight: 190 pounds | Dimensions: 48 x 54 x 40 inches | Power: 1.5 HP, 115/1/60, 3500 RPM | VIEW ON AMAZON | See Our Full Breakdown |
| Extract-All Wall-Mounted Dust Absorber for Air Purification, 6″ x 10′ Fume Extraction Arm with 180° Swing |  | Best Wall-Mounted Arm | Weight: 22 lbs | Frame Material: 23-Gauge Galvanized Steel | Size: 6″ x 10′ | VIEW ON AMAZON | See Our Full Breakdown |
| Industrial Welding Fume Extractor with H13 Filter and 1700 CFM Suction |  | Best High-CFM Industrial | Filtration Efficiency: 99.9% | Suction Power: 1700 CFM | Weight: 331 pounds | VIEW ON AMAZON | See Our Full Breakdown |
| NT-P1 Solder Fume Extractor, 150CFM, H13 HEPA Carbon Dust Odors Filtration |  | Best Compact for Precision Work | Airflow: 150 CFM (250 m³/h) | Filter Type: H13 HEPA, activated carbon | Motor Power: 100W | VIEW ON AMAZON | See Our Full Breakdown |
| BAOSHISHAN 100W Solder Fume Extractor 240m³/h Strong Suction |  | Best Value with Washable Filters | Power: 100W | Air Volume: 240m³/h | Filter Type: 3-layer washable filters with activated carbon | VIEW ON AMAZON | See Our Full Breakdown |
| Metcal BVX-250 Kit Two‑Station Fume Extraction System with Arm and Nozzles |  | Best Portable Two-Station System | Manufacturer: OK INTERNATIONAL | Part Number: BVX-250-KIT | Item Weight: 16.65 pounds | VIEW ON AMAZON | See Our Full Breakdown |
| Extract-All Portable Fume Extractor and Source Capture – Removes Smoke, Dust, Fumes, and Airborne Contaminants from Industrial Applications |  | Best Heavy-Duty Industrial Workhorse | Weight: 160 pounds | Dimensions: 20″ W x 20″ D x 36″ H | Power: 350W, 120V/1/60, 2940 RPM | VIEW ON AMAZON | See Our Full Breakdown |

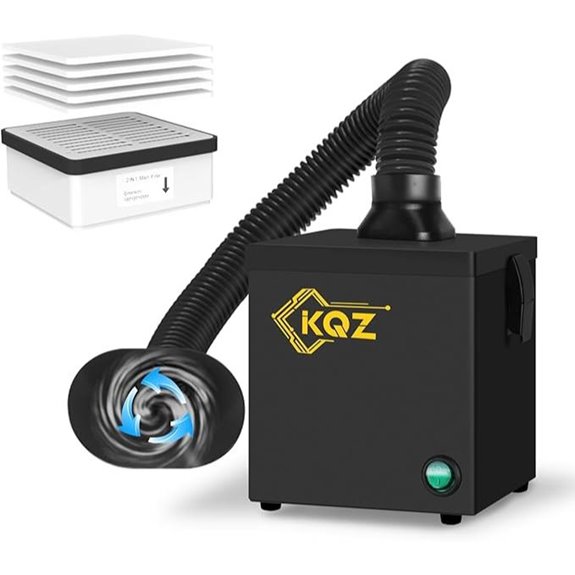

| KQZ B1 Solder Fume Extractor 168m³/h Smoke Absorber with H13 HEPA |  | Best Compact Value for Light-Duty Work | Airflow: 168 m³/h | Filtration: H13 HEPA + activated carbon | Pre-Filter Thickness: 9mm | VIEW ON AMAZON | See Our Full Breakdown |
| Solder Fume Extractor 180W 320m³/h with HEPA & Carbon Filters, Soundproof Chamber, Downward Exhaust |  | Best Quiet Performer for Professional Benches | Power: 180W brushless motor | Airflow: 320 m³/h | Filtration: H13 HEPA, high-iodine carbon, double-thickness pre-filter | VIEW ON AMAZON | See Our Full Breakdown |
| Dayton 3AA22 Fume and Smoke Exhauster |  | Best High-Capacity Exhauster for Large Shops | Type: Industrial Fume and Smoke Exhauster | Motor Power: 1.5 hp | Voltage: 115/230V AC | VIEW ON AMAZON | See Our Full Breakdown |
| fume extractors for welding shop | Weight | Dimensions | Power |
|---|---|---|---|
| JJ-M131 Fume Extractor | 11.03 pounds | 15 x 10 x 9.5 inches | 70W |
| Solder Fume Extractor 70W | 7.7 pounds | 11.1 x 10.1 x 9.4 inches | 70 watts |
| VEVOR Solder Fume Extractor | 26.2 pounds | 11 x 11 x 16.9 inches | 150W |
| FumeClear FC-100A with Remote | 20.8 pounds | 10.6 x 8.7 x 10.8 inches | — |
| FumeClear FC-100A | 19.51 pounds | 10.6 x 8.7 x 10.8 inches | — |
| Extract-All Portable Dual-Arm | 190 pounds | 48 x 54 x 40 inches | 1.5 HP, 115/1/60, 3500 RPM |
| Extract-All Wall-Mounted Dust | 22 lbs | — | — |
| Industrial Welding Fume Extrac | 331 pounds | 25.59 x 25.59 x 47.24 inches | 1.1 KW |
| NT-P1 Solder Fume Extractor | 18.86 pounds | 10.6" x 9.5" x 10.1" | — |
| BAOSHISHAN 100W Solder Fume Ex | 21.5 pounds | — | 100W |
| Metcal BVX-250 Kit Two‑Station | — | — | — |
| Extract-All Portable Fume Extr | 160 pounds | 20" W x 20" D x 36" H | 350W, 120V/1/60, 2940 RPM |
| KQZ B1 Solder Fume Extractor 1 | 4 pounds | 9.06 x 8.7 x 6.26 inches | — |
| Solder Fume Extractor 180W 320 | — | — | 180W brushless motor |
| Dayton 3AA22 Fume and Smoke Ex | 62 lb | — | — |
More Details on Our Top Picks
JJ-M131 Fume Extractor
The JJ-M131 is the most approachable entry point in this roundup. Its 3-stage filtration with HEPA and activated carbon captures 99.97% of particles down to 0.3 microns, which is plenty for hobbyist soldering, laser engraving, or light woodworking. At just 11 pounds and with a noise level below 50dB, it won’t dominate a small bench or demand ear protection. Compared with the VEVOR unit, the JJ-M131 trades raw power and adjustable speed for simplicity and a lower footprint — you get a fixed airflow of 180-200m³/h that’s adequate for occasional work but not for continuous heavy fume generation. The lack of an airflow dial means you can’t dial down suction for delicate tasks, and filter replacement is on you to track. Still, for someone setting up their first dedicated fume station, this is a forgiving, quiet, and versatile choice that doesn’t overwhelm the workspace.Pros:- High-efficiency 3-stage filtration captures 99.97% of particles as small as 0.3μm
- Quiet operation below 50dB suits noise-sensitive environments
- Lightweight and compact enough for a cluttered hobby bench
- Versatile enough for soldering, laser engraving, and woodworking
Cons:- No adjustable airflow speed limits control over suction strength
- Filter replacement required regularly for consistent performance
- Limited to indoor use; no option for ducting or external exhaust
Best for: Hobbyists and beginners who need a quiet, straightforward fume extractor for occasional soldering, laser engraving, or craft work at a small bench.
Not ideal for: Professional welders or shops with continuous high-volume fume output — the fixed airflow and 70W motor will struggle to keep up.
- Filtration System:3-stage (Pre-filter, HEPA, Activated Carbon)
- Airflow:180-200m³/h
- Noise Level:Below 50dB
- Power:70W
- Weight:11.03 pounds
- Dimensions:15 x 10 x 9.5 inches
- Voltage:110V
Our verdict“A forgiving, quiet starter unit for hobbyists who want effective filtration without complexity or high power demands.”
Solder Fume Extractor 70W
If bench space is at a premium, this 70W extractor is the most space-efficient option in the lineup. Its 360° rotating hose and compact 11.1 x 10.1 x 9.4-inch footprint let it tuck into tight corners while still reaching across a small work area. The multi-stage filtration — primary cotton, H13 HEPA, and activated carbon — matches the JJ-M131’s particle capture for fumes and odors, but the adjustable hose gives you more precise placement than the JJ-M131’s fixed intake. That said, the 155m³/h airflow is the weakest of the five units here, so it’s best for intermittent soldering rather than prolonged welding sessions. At 7.7 pounds, it’s the lightest model we’ve covered, making it easy to move between stations. The tradeoff for that portability is a smaller carbon filter that will need more frequent swaps if you run it daily. For a home studio or a second bench in a larger shop, this is a nimble, unobtrusive workhorse.Pros:- Compact and lightweight at 7.7 pounds for easy repositioning
- 360° rotating hose allows precise fume capture placement
- H13 HEPA plus activated carbon filtration removes both particles and odors
- Quiet operation at ≤50dB suits small indoor spaces
Cons:- Lowest airflow in this roundup at 155m³/h limits heavy-duty use
- Smaller filter media means more frequent replacement under regular use
- No adjustable airflow control — just on/off
Best for: Small workshops, home studios, or secondary benches where space is tight and you need a lightweight, repositionable fume extractor for light soldering and lab work.
Not ideal for: Heavy-duty welding or continuous production work — the 70W motor and 155m³/h airflow won’t handle sustained high fume volumes.
- Power:70 watts
- Airflow:155m³/h
- Filter System:Primary filter cotton, H13 HEPA, activated carbon
- Hose Rotation:360°
- Noise Level:≤50dB
- Weight:7.7 pounds
- Dimensions:11.1 x 10.1 x 9.4 inches
- Material:Aluminium
- Voltage:110 volts
Our verdict“A space-saving, portable option for hobbyists and small studios that need flexible fume capture without bulky equipment.”

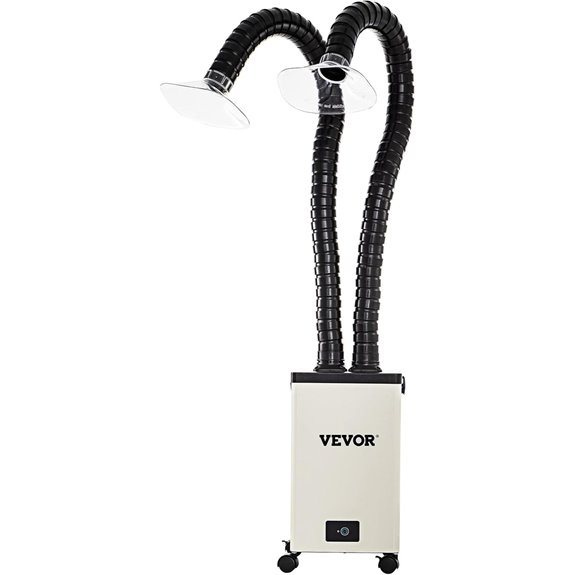

VEVOR Solder Fume Extractor
The VEVOR stands out as the best power-to-dollar balance in this batch. Its 150W motor pushes 165 CFM (about 280m³/h) through a 3-stage cotton, HEPA, and activated carbon system that captures 99.91% of particles — a meaningful step up from the 70W units like the JJ-M131 or the compact Solder Fume Extractor. You also get adjustable speed control, which neither of those smaller units offers, letting you match suction to the task at hand. The lockable wheels and 1.2-meter hose add mobility that the fixed benchtop FumeClear models lack, making it easier to move between workstations in a small shop. The tradeoff is size and noise: at 26.2 pounds and 63dB, it’s the heaviest and loudest of the five, so it’s not ideal for a quiet home office. Filter condition also affects max airflow, so you’ll need to monitor replacement intervals to maintain that 165 CFM rating.Pros:- 150W motor delivers 165 CFM for strong suction on moderate fume loads
- Adjustable speed control lets you fine-tune airflow for different tasks
- Lockable wheels and 1.2m hose provide easy mobility across a shop
- High filtration efficiency of 99.91% with replaceable 3-stage filters
Cons:- Heavier and bulkier than other compact options at 26.2 pounds
- Noise level of 63dB is the loudest in this roundup
- Maximum airflow depends on filter condition — performance drops as filters clog
Best for: Small welding or DIY shops that need more power and adjustability than a compact unit, plus the ability to move the extractor between work areas.
Not ideal for: Noise-sensitive environments like home offices or apartments — the 63dB output is noticeably louder than the sub-50dB competitors.
- Power:150W
- Airflow:165 CFM
- Filtration Efficiency:99.91%
- Filter System:Cotton, HEPA, Activated Carbon
- Maximum Rotation Speed:4500 RPM
- Noise Level:63 dB
- Dimensions:11 x 11 x 16.9 inches
- Weight:26.2 pounds
- Hose Length:1.2 meters
Our verdict“A practical, mobile workhorse for small shops that want more power and adjustability without stepping up to industrial-scale units.”

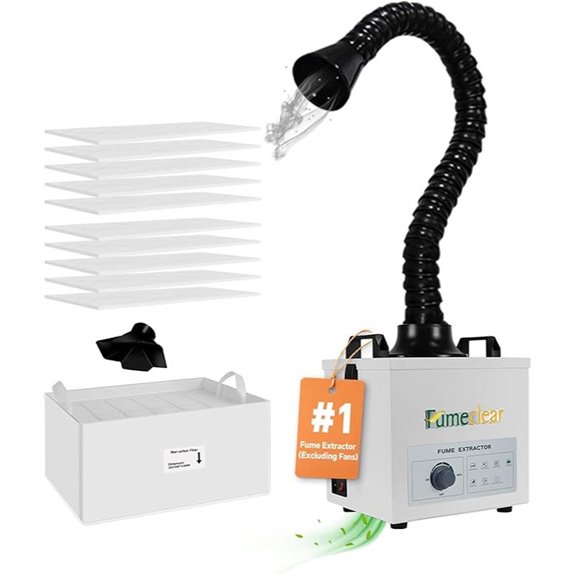

FumeClear FC-100A with Remote
The remote control on this FumeClear FC-100A is the differentiator that sets it apart from the otherwise identical non-remote version. Being able to adjust suction or power from across the room without leaving your welding position is a genuine workflow advantage, especially when you’re wearing gloves or holding a torch. Under the hood, it’s the same 100W motor and 200m³/h suction as the standard FC-100A, with a 3-stage filter system that includes high-iodine activated carbon — rated for 3000 hours of use, which is excellent longevity compared with the smaller filters in the JJ-M131 or Solder Fume Extractor. The 20.8-pound weight is heavier than those compact units but still manageable for a benchtop. The tradeoff is that this unit is still aimed at small soldering and light welding, not large laser engravers or high-volume industrial fume extraction. If remote operation isn’t a priority, you can save the extra cost with the non-remote version, but for convenience-focused shops, this is the pick.Pros:- Remote control allows convenient operation from across the workbench
- High-efficiency 3-stage filtration removes 99.97% of harmful particles
- Powerful 100W motor with 200m³/h suction for small-to-medium fume loads
- Long-lasting filters rated up to 3000 hours of use
Cons:- Not suitable for large laser engravers or high-volume fume sources
- Heavier than compact alternatives at 20.8 pounds, though still benchtop-friendly
- Filter replacement still required after extended use, despite long lifespan
Best for: Welding and soldering professionals who work in awkward positions and want to adjust the extractor without breaking their stance or removing gloves.
Not ideal for: Budget-conscious buyers who don’t need remote operation — the non-remote FC-100A offers the same filtration for less.
- Weight:20.8 pounds
- Dimensions:10.6 x 8.7 x 10.8 inches
- Power Source:110 volts AC
- Wattage:100 watts
- Filtration:3-stage with high iodine activated carbon, pre-filters, HEPA
- Suction Power:200 m³/h
- Included Components:Fume extractor, remote control
Our verdict“A convenient, feature-rich benchtop extractor for professionals who value remote control and solid filtration without moving to industrial scale.”
FumeClear FC-100A (Non-Remote)
If you don’t need the remote feature, this standard FumeClear FC-100A delivers the same core performance as its remote-equipped sibling at a lower cost. It’s the quietest option in this roundup alongside the JJ-M131, with a low-noise design that makes it comfortable for extended soldering sessions in a home office or shared space. The 100W motor and 200m³/h suction are identical to the remote version, and the 3-stage filtration with high-iodine activated carbon captures 99.97% of particles while the carbon filter lasts up to 3000 hours — far longer than the filters in the compact 70W Solder Fume Extractor. Weighing 19.51 pounds, it’s a bit heavier than the JJ-M131 but still easy to place on a bench. The tradeoff is the same limitation as the remote model: it’s built for small-scale soldering and light welding, not industrial fume volumes. For a straightforward, dependable benchtop extractor without extra frills, this is the most sensible pick.Pros:- Effective 3-stage filtration with high iodine activated carbon for 99.97% efficiency
- Powerful suction of up to 200m³/h for small workspaces
- Compact and low-noise design ideal for benchtop use
- CE and FCC certified for safety compliance
Cons:- Not suitable for large laser engravers or high-volume fume extraction
- Carbon filter lasts approximately 3000 hours before replacement is needed
- Limited to small-scale soldering and workshop applications — no heavy-duty capacity
Best for: Bench-focused welders and electronics hobbyists who want reliable, quiet filtration without paying extra for remote control or advanced features.
Not ideal for: Users who need mobility or remote operation — this unit is fixed on a bench and lacks the VEVOR’s wheels or the remote model’s convenience.
- Maximum Power:100W
- Filtration Efficiency:99.97%
- Filtration Layers:3 layers + 10 pre-filters
- Filter Type:High iodine activated carbon
- Service Life of Carbon Filter:3000 hours
- Suction Power:200 m³/h
- Dimensions:10.6 x 8.7 x 10.8 inches
- Weight:19.51 pounds
- Model Number:FC-100A
Our verdict“A dependable, quiet benchtop extractor for small soldering tasks that delivers strong filtration without unnecessary extras.”
Extract-All Portable Dual-Arm Fume Extractor for Industrial Applications
This dual-arm unit is the workhorse of the group. The multi-stage filtration with spark-trap baffle is a standout for welding shops that generate hot sparks and heavy smoke — something the compact NT-P1 or BAOSHISHAN units can’t handle. The 1.5 HP motor and 72-inch rigid flex arms give you serious reach and capture power across two workstations. Compared with the wall-mounted Extract-All arm (Product 7), this portable version offers flexibility to move between bays, though the 190-pound weight means you’ll want a smooth floor and maybe a second person to reposition it. At 73 dB it’s louder than the NT-P1’s whisper-quiet operation, but that’s the tradeoff for industrial-grade airflow. The steel frame and 3-year warranty suggest this is built to outlast lighter alternatives.
Pros:- Dual 72-inch rigid flex arms cover two workstations simultaneously
- Spark-trap baffle extends filter life in high-heat applications
- Steel frame with rust-resistant finish survives harsh shop environments
- UL and CE approved electrical components for safety compliance
Cons:- 190-pound weight makes repositioning a two-person task even with casters
- 73 dB noise level can be intrusive in smaller or shared spaces
- No built-in filter replacement indicator — you’ll need to track maintenance manually
Best for: Fabrication shops with multiple welding stations that need to capture heavy smoke, dust, and sparks from two positions without permanent installation.
Not ideal for: Small home workshops or hobbyists — the size, weight, and noise level are overkill for occasional light welding, and the 115V power draw may trip residential circuits.
- Weight:190 pounds
- Dimensions:48 x 54 x 40 inches
- Power:1.5 HP, 115/1/60, 3500 RPM
- Noise Level:73 dB
- Filter Type:Multi-stage (Spark-Trap Baffle, Pleated, Mini-Pleat)
- Arms:2 x 4″ Ø x 72″ rigid flex
- Warranty:3 years
Our verdict“If you need to extract fumes from two welding bays at once and have the floor space and manpower to move a heavy machine, this dual-arm unit is your best bet.”

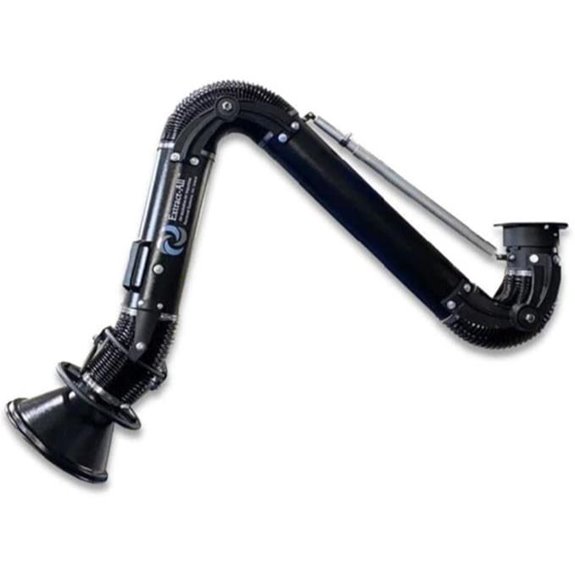

Extract-All Wall-Mounted Dust Absorber for Air Purification, 6″ x 10′ Fume Extraction Arm with 180° Swing
If you want fume capture without sacrificing floor space, this wall-mounted arm is a smart pick. The 10-foot reach and 180° swing let you position the hood precisely over a weld joint, and the self-locking joints hold position without sagging — a real advantage over the rigid dual arms on the portable Extract-All (Product 6), which can’t articulate as freely. The 23-gauge galvanized steel frame feels sturdy, and the expanded-diameter capture hood pulls in more air at the source. However, this is an arm only — you’ll need to connect it to an existing dust collector or central vacuum system. That’s a limitation compared with the self-contained Industrial Welding Fume Extractor (Product 8), which has its own blower and filter. The 22-pound weight is manageable, but your wall must be reinforced to handle the leverage when the arm is fully extended.
Pros:- 10-foot reach covers large work areas from a single wall mount
- Self-locking joints hold position precisely during long welds
- Galvanized steel resists corrosion in industrial environments
- 180° swing allows easy repositioning across the workstation
Cons:- Requires external blower or dust collector — not a complete system
- Wall mounting must be reinforced to handle the extended arm’s leverage
- PVC hose may not withstand extreme heat if placed too close to the arc
Best for: Shops with a central filtration system that need a flexible, long-reach capture arm mounted permanently at a dedicated welding station.
Not ideal for: Buyers looking for a plug-and-play standalone unit — this arm requires external suction and won’t work out of the box.
- Weight:22 lbs
- Frame Material:23-Gauge Galvanized Steel
- Size:6″ x 10′
- Hose Material:Black PVC
- Arm Swing:180°
Our verdict“For shops with an existing central vacuum system, this arm offers the best reach and flexibility without taking up floor space.”
Industrial Welding Fume Extractor with H13 Filter and 1700 CFM Suction
This is the most powerful standalone unit in this batch, and it shows. The 1700 CFM suction and H13 filter with 99.9% efficiency put it a class above the Extract-All portable (Product 6), which relies on a smaller motor and multi-stage but not HEPA-level filtration. The all-copper silent fan motor is a nice touch — it runs quieter than you’d expect for this airflow, though the 331-pound weight and 220V requirement mean you need a dedicated industrial circuit and a forklift or pallet jack to move it. The stainless steel suction arms resist weld spatter better than the PVC hose on the wall-mounted Extract-All arm (Product 7). If you’re running heavy MIG or stick welding all day, this will keep the air clean without bogging down. Just be ready for the footprint and power constraints.
Pros:- 1700 CFM suction handles heavy smoke from large weldments
- H13 filter captures 99.9% of particulate matter for superior air quality
- All-copper silent fan motor reduces noise compared to standard industrial units
- Stainless steel suction arms resist corrosion and weld spatter
Cons:- 331-pound weight requires heavy-duty moving equipment
- 220V power source isn’t available in most residential or light-commercial shops
- Large footprint (25.59 x 25.59 inches) consumes significant floor space
Best for: Industrial fabrication facilities with 220V power and heavy continuous welding that need maximum suction and HEPA-grade filtration.
Not ideal for: Small shops or hobbyists — the 220V requirement, massive weight, and large footprint make it impractical for typical garage or small workshop setups.
- Filtration Efficiency:99.9%
- Suction Power:1700 CFM
- Weight:331 pounds
- Dimensions:25.59 x 25.59 x 47.24 inches
- Voltage:220 volts
- Power:1.1 KW
- Body Material:Sprayed sheet metal cabinet, all-copper silent fan motor, stainless steel suction arms
Our verdict“If you have the power and space, this high-CFM unit delivers the most aggressive fume removal of any standalone extractor here.”
NT-P1 Solder Fume Extractor, 150CFM, H13 HEPA Carbon Dust Odors Filtration
When you’re doing TIG welding on small parts or precision soldering, you don’t need a 331-pound industrial monster like the B0H6SSZH6D — you need something that sits quietly beside your bench and pulls fumes away from your face. The NT-P1 does exactly that with 150 CFM and an H13 HEPA plus activated carbon filter that handles both particulates and odors. The 39-inch flexible tube is easy to aim at the work area, and the under-50 dB noise level means you can run it all day without ear fatigue — a clear advantage over the 73 dB Extract-All portable (Product 6). The tradeoff is capacity: this is strictly for light-duty tasks, not heavy welding that produces thick smoke. Filter replacements will be more frequent than the washable BAOSHISHAN (Product 10), but the HEPA rating gives you certified 99.97% filtration for fine particles.
Pros:- H13 HEPA plus activated carbon filters both particles and odors
- Compact 10.6-inch footprint fits easily on a crowded workbench
- Low noise operation under 50 dB is comfortable for extended use
- Versatile for soldering, laser engraving, and resin printing
Cons:- Replacement filters need frequent changing under heavy use, adding ongoing cost
- Limited to small workshop applications — not suitable for high-volume welding
- Only 39-inch tube length restricts positioning for larger workpieces
Best for: Electronics repair shops, jewelers, and hobbyists doing precision soldering or small TIG welds who need quiet, compact fume extraction with true HEPA filtration.
Not ideal for: Heavy welding operations with continuous thick smoke — the 150 CFM airflow will be quickly overwhelmed, and filter life will suffer.
- Airflow:150 CFM (250 m³/h)
- Filter Type:H13 HEPA, activated carbon
- Motor Power:100W
- Dimensions:10.6″ x 9.5″ x 10.1″
- Weight:18.86 pounds
- Tube Length:39.37″
- Filtration Material:High-density non-woven fabric, fiberglass
Our verdict“This is the right choice for precision work where quiet, clean air matters more than raw suction power.”
BAOSHISHAN 100W Solder Fume Extractor 240m³/h Strong Suction
The standout feature here is the 3-layer washable filter system — a genuine money-saver compared with the NT-P1’s disposable HEPA cartridges. You can rinse these filters and reuse them, which adds up fast for daily use. The 240 m³/h airflow (about 141 CFM) is slightly lower than the NT-P1’s 150 CFM, but the 360° bamboo pipe gives you more flexible positioning than the NT-P1’s fixed tube. The metal body feels more durable than the plastic housings on some cheaper solder extractors, and the 110V plug works in standard US outlets — unlike the 220V industrial unit (Product 8). The main drawback is that washable filters don’t capture ultra-fine particles as effectively as HEPA, so if you’re doing heavy TIG welding with chromium fumes, you’ll want the NT-P1’s certified H13 filter instead. Also, there’s no noise spec, so you may find it louder than expected in a quiet shop.
Pros:- Washable 3-layer filters eliminate recurring replacement costs
- 360° bamboo pipe allows precise fume capture from any angle
- Adjustable airflow lets you match suction to the task
- Compact metal body is portable and durable for workbench use
Cons:- Washable filters require regular cleaning to maintain performance — easy to forget
- 110V only, so it won’t work in 220V industrial settings without a converter
- No noise level specification — it may be louder than the NT-P1’s quiet operation
Best for: Budget-conscious hobbyists and light commercial users who want low ongoing costs thanks to washable filters, and need flexible hose positioning for soldering or small welding tasks.
Not ideal for: Professional welders working with toxic metals like stainless steel or galvanized steel where HEPA filtration is required for safety compliance.
- Power:100W
- Air Volume:240m³/h
- Filter Type:3-layer washable filters with activated carbon
- Size:11.5 x 9.65 x 12.8 inches
- Weight:21.5 pounds
- Material:Metal
- Voltage:110V
Our verdict“If you want to minimize filter expenses and need flexible positioning for light soldering or small welds, this washable-filter unit is the smart budget pick.”
Metcal BVX-250 Kit Two‑Station Fume Extraction System with Arm and Nozzles
The Metcal BVX-250 stands out as the only true two-station portable unit in this lineup, making it the obvious pick for electronics benches or small welding shops where multiple operators work side by side. Its HEPA‑13 filter with 99.97% efficiency matches the filtration quality of the KQZ B1, but the Metcal goes further by including a 5-foot arm and both rectangular and circular nozzles right out of the box. Compared with the heavier Extract-All portable, which weighs 160 pounds, the Metcal’s 16.65-pound frame lets you move it between stations without a cart. The LED status ring is a practical touch—you’ll know at a glance when the filter needs attention, something the KQZ lacks. The tradeoff is that the arm is fixed to the kit, and if you want to reconfigure it, arms are sold separately, which adds cost. For a shop that needs two simultaneous extraction points without dedicating permanent floor space, this is the most flexible option.Pros:- True two-station capability with included arm and nozzles
- HEPA-13 filtration at 99.97% efficiency for fine particulate
- Lightweight at 16.65 lb—easy to relocate between benches
- LED status ring gives clear filter-life feedback
Cons:- Arms sold separately for alternate configurations, limiting flexibility
- 16.65 lb may still be heavy for frequent overhead or shelf mounting
- Replacement filters add recurring cost without a pre-filter to extend life
Best for: Small to mid-size welding or soldering shops with two nearby workstations that need portable, high-efficiency fume capture without permanent installation.
Not ideal for: Large industrial floors requiring high CFM or long-reach arms—this unit’s airflow is modest and the 5-foot arm limits reach compared with the Dayton’s 9-foot arm.
- Manufacturer:OK INTERNATIONAL
- Part Number:BVX-250-KIT
- Item Weight:16.65 pounds
- Product Dimensions:1.6 x 1.49 x 1.43 inches
- Model Number:BVX-250-KIT
- Package Quantity:1
- Filter Type:HEPA-13 + activated carbon
- Included Arm:5-foot extraction arm with rectangular and circular nozzles
Our verdict“Buy the Metcal BVX-250 if you need a portable, two-station fume extraction solution with hospital-grade filtration and don’t mind the added cost of replacement filters.”
Extract-All Portable Fume Extractor and Source Capture – Removes Smoke, Dust, Fumes, and Airborne Contaminants from Industrial Applications
The Extract-All Portable is the only unit here built like a machine tool rather than a bench accessory. With a 160-pound all-steel chassis, 4-stage filtration including a spark-trap baffle, and a 6-foot adjustable arm on a caster base, it’s designed for continuous duty in welding, grinding, and powder mixing environments. Compared with the Dayton 3AA22, which moves 1,100 CFM but only filters through a basic exhauster, the Extract-All actually cleans the air with pleated and carbon filters—so you’re not just pushing fumes outside, you’re removing them from the workspace. The 71 dB noise level is louder than the 180W solder extractor’s sub-58 dB, but in a busy shop that’s acceptable. The real drawback is its bulk: at 160 pounds, you’ll need two people or a pallet jack to reposition it, and it’s overkill for a hobbyist bench. For a fabrication shop that welds daily and needs robust source capture without ducting, this is the most durable pick.Pros:- 4-stage filtration with spark-trap baffle handles welding sparks and heavy dust
- Mobile caster base and 6-foot adjustable arm allow flexible positioning
- 16-gauge steel with polyurethane powder coat resists rust and corrosion
- UL and CE approved electrical components for industrial safety
Cons:- 160-pound weight makes repositioning a two-person job
- 71 dB noise level can be intrusive in quieter environments
- Overkill for small-scale or occasional welding—size and power exceed light-duty needs
Best for: Industrial welding shops and fabrication facilities that need a mobile, heavy-duty fume extractor capable of handling sparks, dust, and high-volume contaminants.
Not ideal for: Home workshops or electronics benches where space is tight and the 160-pound weight and 71 dB noise level would be impractical.
- Weight:160 pounds
- Dimensions:20″ W x 20″ D x 36″ H
- Power:350W, 120V/1/60, 2940 RPM
- Noise Level:71 dB
- Filter Media:4-stage: Spark-Trap Baffle, Pleated, Mini-Pleat, Disposable Pleated Carbon
- Material:16-gauge steel, polyurethane powder coat
- Included Components:6-ft flexible arm, gooseneck support, 7-ft power cord, heavy-duty casters
- Applications:Welding, soldering, grinding, sanding, chemical processing, electronics
Our verdict“Choose the Extract-All Portable if you run a serious industrial operation that needs a rugged, mobile fume extractor with multi-stage filtration and can handle its size and noise.”
KQZ B1 Solder Fume Extractor 168m³/h Smoke Absorber with H13 HEPA
The KQZ B1 is the most budget-conscious option in this roundup, and it earns its place for hobbyists and light electronics work. Its 168 m³/h airflow is modest—about half of the 180W extractor’s 320 m³/h—but for soldering, small 3D printing, or occasional tack welding, it’s plenty. The H13 HEPA plus activated carbon dual-layer filtration claims 99.99% purification, which rivals the Metcal’s 99.97% at a fraction of the weight (4 pounds vs. 16.65). The adjustable gooseneck hose is handy for directing capture right at the smoke source, something the Dayton’s fixed arm can’t do with the same precision. The tradeoff is clear: this is not a shop-scale tool. It lacks the caster base and industrial build of the Extract-All, and its small footprint means you’ll need to keep it close to the work. If you’re a weekend welder or a bench technician who wants effective fume removal without dedicating floor space, this is the smart pick.Pros:- H13 HEPA + activated carbon filters capture 99.99% of fumes and odors
- Compact 4-pound design with adjustable gooseneck hose for precise positioning
- Versatile—works for soldering, 3D printing, and light welding
- Long-lasting filters with lower operating costs than industrial units
Cons:- Limited to small workspace use; not suitable for large industrial environments
- Requires regular filter replacement to maintain performance
- May produce noticeable noise during operation, though not as loud as the Extract-All
Best for: Hobbyists, electronics repair technicians, and small 3D printing setups that need an affordable, compact fume extractor for light soldering and occasional welding.
Not ideal for: Professional welding shops with continuous heavy fume generation—the 168 m³/h airflow and small filter area will struggle to keep up with sustained use.
- Airflow:168 m³/h
- Filtration:H13 HEPA + activated carbon
- Pre-Filter Thickness:9mm
- Voltage:110–220V
- Weight:4 pounds
- Dimensions:9.06 x 8.7 x 6.26 inches
- Power Source:DC
- Included Components:Duct, extractor, hood, main filter, pre-filter, tube, power cable, manual
Our verdict“The KQZ B1 is the right choice for budget-conscious hobbyists and light-duty workstations that need a portable, effective fume extractor without industrial bulk.”
Solder Fume Extractor 180W 320m³/h with HEPA & Carbon Filters, Soundproof Chamber, Downward Exhaust
This 180W extractor hits a sweet spot that none of the other units do: it delivers 320 m³/h of airflow—nearly double the KQZ B1—while keeping noise below 58 dB thanks to its soundproof chamber and downward exhaust. That makes it ideal for indoor shops or shared spaces where the 71 dB of the Extract-All or the 86 dBA of the Dayton would be disruptive. The 3-stage filtration with H13 HEPA and high-iodine carbon captures 99.997% of particles and VOCs, which is the highest efficiency claim in this batch. The all-metal construction and swivel casters with brakes give it a professional feel, and the stepless speed adjustment lets you dial in suction for delicate soldering or heavier welding. The main drawbacks are size and filter cost—it’s larger than the KQZ and requires dedicated bench space, and replacement filters aren’t cheap. Compared with the Metcal, which offers two stations, this is a single-station unit, but its superior airflow and quiet operation make it the better choice for a serious one-operator bench.Pros:- 320 m³/h airflow with quiet operation below 58 dB
- 3-stage filtration captures 99.997% of particles and VOCs
- Durable all-metal construction with swivel casters and brakes
- Stepless speed adjustment and 5-year warranty
Cons:- Replacement filters can be costly over time, despite extended pre-filter life
- Large footprint requires dedicated bench or floor space
- Filter replacement schedule extends to Oct 30, 2026—you’ll need to plan ahead
Best for: Professional electronics repair shops, small fabrication studios, and serious hobbyists who need high airflow and quiet operation in an indoor environment.
Not ideal for: Multi-operator welding stations that need simultaneous extraction—this is a single-arm unit, so you’d need multiple units to cover two work areas.
- Power:180W brushless motor
- Airflow:320 m³/h
- Filtration:H13 HEPA, high-iodine carbon, double-thickness pre-filter
- Noise Level:Below 58 dB
- Exhaust Design:Downward-sloping rear vent
- Construction:All-metal
- Mobility:Swivel casters with brakes
- Adjustable Speed:Stepless
- Warranty:5 years
Our verdict“Select this 180W extractor if you prioritize quiet, high-capacity fume removal for a professional single-station bench and are willing to invest in filter maintenance.”
Dayton 3AA22 Fume and Smoke Exhauster
The Dayton 3AA22 is the brute-force option in this roundup, and it’s the right tool when you need to move serious air. With a 1.5 hp motor pushing 1,100 CFM, it dwarfs every other unit here—the 180W extractor manages 320 m³/h (about 188 CFM), so the Dayton moves roughly six times the volume. That makes it the go-to for large welding bays where fumes spread quickly and source capture alone isn’t enough. The 9-foot extraction arm is the longest in this lineup, giving you far more reach than the Metcal’s 5-foot arm or the Extract-All’s 6-foot arm. The fiberglass housing is corrosion-resistant and built for industrial abuse. But there are real compromises: at 86 dBA, it’s the loudest unit by a wide margin, and it’s a fume exhauster, not a filter—it pushes smoke outside rather than cleaning it, so you need proper venting. At 62 pounds, it’s heavy but manageable with two people. For a shop that already has exhaust ducting and needs high-volume removal, this is the workhorse.Pros:- Powerful 1.5 hp motor with 1,100 CFM airflow for high-volume extraction
- 9-foot extraction arm provides excellent reach and positioning flexibility
- Durable fiberglass housing resists corrosion and industrial wear
- Effective for welding, brazing, and soldering fume removal
Cons:- 86 dBA noise level is extremely loud—ear protection is a must
- Heavy at 62 lb, requiring assistance for setup or repositioning
- Exhausts fumes rather than filtering them, so it’s unsuitable for recirculating indoor air
Best for: Large fabrication shops and welding bays that need to exhaust high volumes of smoke and fumes through ducting, with a long-reach arm for flexible positioning.
Not ideal for: Indoor workshops without exterior venting—this unit doesn’t filter air, it exhausts it, so you’ll need a dedicated exhaust path.
- Type:Industrial Fume and Smoke Exhauster
- Motor Power:1.5 hp
- Voltage:115/230V AC
- Max CFM:1,100
- Max Fume Temp:180°F
- Sound Level:86 dBA
- Hose Length:9 ft
- Weight:62 lb
- Housing Material:Fiberglass
Our verdict“Buy the Dayton 3AA22 if you run a large welding shop with existing exhaust ducting and need maximum airflow and reach to clear heavy smoke quickly.”
How We Picked
To rank these 15 fume extractors, I evaluated each unit against the specific demands of a welding shop — not just soldering stations. The primary criteria were airflow capacity (CFM or m³/h) and capture velocity, since welding produces far more smoke and particulate than electronics work. I also weighed filtration quality (HEPA grade, carbon layers, number of stages), portability and mounting options, noise output, filter replacement cost, and build durability for shop environments. Units that could handle continuous duty cycles scored higher than those meant for intermittent use.
The ranking logic places industrial-grade extractors with 1000+ CFM at the top for serious welding shops, followed by versatile mid-range units that balance power with footprint. Portable and benchtop models rank lower not because they’re poor products, but because they serve a narrower use case. I also factored in how easily filters can be sourced and replaced, since that affects long-term ownership costs. The result is a list that rewards real-world shop usability over raw specs.
Factors to Consider When Choosing Fume Extractors For Welding Shops
Choosing a fume extractor for a welding shop goes beyond picking the highest CFM number. The following factors will help you match a unit to your specific welding processes, shop size, and budget.
Airflow and Capture Velocity
Airflow, measured in CFM or m³/h, determines how much air the extractor can pull through the hose and filter. But what really matters is capture velocity — the speed at which air moves at the nozzle opening. For MIG and stick welding, you need at least 100 CFM at the nozzle to pull fumes away from the weld puddle. For TIG and soldering, 50-80 CFM is often enough. A high-CFM unit with a wide nozzle may have lower capture velocity than a smaller unit with a focused nozzle. Look for adjustable speed controls and flexible arms so you can position the nozzle close to the work. Don’t oversize — a 1700 CFM industrial unit in a small home shop will create excessive draft and noise.
Filtration Stages and Filter Types
Welding fume contains fine metal oxides, gases, and odors. A single-layer pre-filter won’t cut it. The best units use 3-stage filtration: a pre-filter for large particles, a HEPA or H13 filter for fine particulate, and an activated carbon layer for gases and odors. Some units add a fourth stage for chemical absorption. H13 HEPA captures 99.97% of particles at 0.3 microns, which is essential for welding fume. However, carbon filters saturate over time and need replacement — check the cost and availability before buying. Units with washable pre-filters extend the life of the expensive HEPA cartridge. Avoid extractors that only use foam or non-HEPA filters if you weld regularly.
Portability vs. Fixed Installation
Welding shops vary from single-bay garages to large fabrication floors. Portable benchtop units are easy to move between workstations but often have shorter arms and lower CFM. Wall-mounted extractors with articulated arms (like the Extract-All 6″ x 10′ model) save floor space and provide a wide reach, but they’re fixed to one location. Dual-arm units (like the Extract-All Portable Dual-Arm) allow two welders to work simultaneously, but they take up more space and cost more. Consider how many welding stations you have and whether you need to move the extractor around. For multi-station shops, a central system with multiple arms is more practical than several portable units.
Noise and Duty Cycle
Fume extractors run continuously while you weld. A unit that’s too loud can cause fatigue and make communication difficult. Look for noise ratings around 60-70 dB for benchtop units; industrial units may run louder but often have soundproofing. The 180W model in this roundup features a soundproof chamber, which is a standout for long welding sessions. Duty cycle is also important — a unit rated for continuous operation will last longer than one designed for intermittent use. Check whether the motor is brushless or brushed; brushless motors are quieter and last longer. If you weld for hours at a time, invest in a unit with a robust motor and thermal protection.
Filter Replacement Costs and Maintenance
The upfront price of a fume extractor is only part of the total cost. Filter replacement frequency and cost can add up quickly. H13 HEPA filters typically need replacement every 6-12 months depending on usage, and they can cost anywhere from $30 to $150. Carbon filters may need replacement every 3-6 months. Some units use proprietary filters that are hard to source, while others accept standard sizes. Check the filter part number and availability before buying. Units with washable pre-filters reduce waste and save money. Also consider how easy it is to clean the hose and nozzle — welding fume leaves sticky residue that can clog filters faster if not maintained.
Shop Size and Welding Processes
Your specific welding processes dictate the extractor you need. If you only do occasional TIG or soldering, a compact unit like the NT-P1 or KQZ B1 will suffice. For regular MIG or stick welding, you need a higher-CFM unit with a larger hose diameter (4 inches or more) to move enough air. The physical size of your shop matters too — a 20×20 garage can get away with a portable unit, but a 1000 sq ft fabrication shop needs a wall-mounted or ceiling-mounted system. Also consider ventilation: if your shop already has good cross-ventilation, a lower-CFM extractor can work; if it’s sealed, you’ll need more power to keep fume levels down.
Frequently Asked Questions
What CFM do I really need for welding fume extraction?
For light TIG welding and soldering, 100-200 CFM is sufficient. For MIG welding, you’ll want at least 300-500 CFM to capture fumes effectively at the source. For heavy stick welding or multiple welders working simultaneously, look for 1000 CFM or more. The key is capture velocity at the nozzle — you want the air moving fast enough to pull fumes away before they disperse. A 1700 CFM unit like the Industrial Welding Fume Extractor is overkill for a hobbyist but ideal for a busy fabrication shop. Measure the distance from your weld to the nozzle; the farther away, the more CFM you need.
Can I use a soldering fume extractor for welding?
Most soldering fume extractors are designed for low smoke volumes and have CFM ratings under 200. They can handle occasional light TIG welding, but they’ll quickly clog and underperform with MIG or stick welding, which produces far more particulate and gas. The filters in soldering units are typically smaller and not rated for the heavy metal oxides found in welding fume. If you weld regularly, invest in a unit specifically designed for welding, with HEPA filtration and higher airflow. Using a soldering extractor for welding is a common mistake that leads to poor air quality and premature filter failure.
How often do I need to replace the filters?
Filter life depends on usage frequency, welding intensity, and the filter type. Pre-filters should be cleaned or replaced monthly if you weld daily. HEPA filters typically last 6-12 months, but heavy MIG welding can shorten that to 3-6 months. Carbon filters saturate faster, often needing replacement every 2-4 months. Some units have filter life indicators, but most don’t — so monitor airflow reduction and odor breakthrough. If you notice less suction or fumes escaping, it’s time to replace filters. Washable pre-filters extend HEPA life, so prioritize units that offer them.
Is a portable fume extractor enough for a professional welding shop?
Portable extractors can work for shops with a single welding station or where you move between locations. However, they typically have shorter arms and lower CFM than wall-mounted or ceiling-mounted units, which limits their effectiveness for large parts or high welding duty. In a professional shop with multiple welders, a portable unit may not provide adequate coverage, and moving it around is cumbersome. Wall-mounted extractors with articulated arms (like the Extract-All 6″ x 10′) offer better reach and consistent positioning. For heavy industrial use, a stationary system with multiple arms is the better investment.
What’s the difference between HEPA and carbon filters, and do I need both?
HEPA filters capture solid particles like metal oxide fume, while carbon filters adsorb gases and odors. Welding produces both — the visible smoke is particulate, but the invisible gases (ozone, nitrogen oxides) are also harmful. A unit with only HEPA will remove particles but leave you smelling the weld. A unit with only carbon won’t capture fine particles. For proper protection, you need both. Look for a 3-stage system with a pre-filter, HEPA (ideally H13), and activated carbon. The best units in this roundup, like the Industrial Welding Fume Extractor and the 180W soundproof model, combine these stages for complete filtration.
Conclusion
After comparing all 15 fume extractors, the Industrial Welding Fume Extractor with H13 Filter and 1700 CFM is my best overall pick for serious welding shops — it has the airflow, filtration, and build quality to handle continuous heavy use. For the best value, the VEVOR Solder Fume Extractor delivers solid 165 CFM performance and 3-stage filtration at a price that fits most hobbyist budgets. If you want the premium experience, the Metcal BVX-250 two-station system offers exceptional build quality and quiet operation for professional electronics and light welding. Beginners should start with the Solder Fume Extractor 70W — it’s simple, safe, and affordable for learning the basics. For specific needs, the Extract-All Wall-Mounted unit is the best fixed-arm choice for multi-station shops, while the 180W soundproof model is ideal for anyone who spends long hours welding and values low noise. Match the unit to your shop size, welding process, and budget, and you’ll breathe easier.
Fall Picks
fall essentials
As an affiliate, we earn on qualifying purchases.
