If you’re looking for the best AC manifold gauge sets for accurate HVAC diagnostics in 2026, I recommend checking out options with durable construction, high-pressure ratings, and broad refrigerant compatibility like the Orion R1234yf and Lichamp models. Digital gauges and leak detectors also boost precision and efficiency. Investing in a set with quality hoses and ergonomic designs guarantees reliability and ease of use. Keep exploring, and you’ll find the perfect tools to improve your HVAC work.
Key Takeaways
- Prioritize gauge sets with high-precision, ±1.6% accuracy, and clear dual or multi-scale displays for reliable diagnostics.
- Choose durable, impact-resistant designs with alloy or reinforced plastics to withstand rugged HVAC environments.
- Ensure compatibility with a broad range of refrigerants like R134A, R410A, R1234YF, and R22 for versatile use.
- Opt for complete kits with high-pressure hoses, adapters, and storage cases for convenience and efficient workflow.
- Select models featuring safety features such as high-pressure ratings (up to 800 psi), leak detection, and shatter-proof components.
| BACOENG 3.6CFM AC Vacuum Pump & Gauge Set |  | Reliable HVAC Tool | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 800 psi | Compatibility with Refrigerants: R134a, R12, R410a | VIEW LATEST PRICE | See Our Full Breakdown |
| DUOYI 3-in-1 HVAC Digital Manifold & Gauge |  | User-Friendly Digital | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 550 psi | Compatibility with Refrigerants: R22, R410A, R32, R134a | VIEW LATEST PRICE | See Our Full Breakdown |
| Orion R1234yf AC Gauge Set with Hoses and Couplers |  | Professional-Grade | Number of Hoses: 4 hoses (including self-sealing can tap) | Pressure Range (Max PSI): Up to 800 psi | Compatibility with Refrigerants: R1234yf, R134a, R404a | VIEW LATEST PRICE | See Our Full Breakdown |
| Lichamp Automotive R134A/R1234YF/R404A Gauge Set |  | Automotive Specialist | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 800 psi | Compatibility with Refrigerants: R134a, R1234YF, R404A | VIEW LATEST PRICE | See Our Full Breakdown |
| HVAC Vacuum Pump & Manifold Gauge Set with Leak Detector |  | Heavy-Duty Performance | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 600 psi | Compatibility with Refrigerants: R134a, R12, R22, R502, R410a | VIEW LATEST PRICE | See Our Full Breakdown |
| Orion Motor Tech AC Gauge Set with Hoses |  | Beginner Friendly | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 600 psi | Compatibility with Refrigerants: R134a, R12, R22, R502 | VIEW LATEST PRICE | See Our Full Breakdown |
| Orion Motor Tech AC Gauge Set with Hoses | | Accurate & Durable | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 600 psi | Compatibility with Refrigerants: R134a, R12, R22, R502, R404A | VIEW LATEST PRICE | See Our Full Breakdown |
| 3-Way AC Manifold Gauge Set with Hoses and Couplers |  | All-in-One Solution | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 600 psi | Compatibility with Refrigerants: R134a, R22, R12, R502 | VIEW LATEST PRICE | See Our Full Breakdown |
| Hong Sen AC Manifold Gauge Set for R134a |  | Shop Ready | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 800 psi | Compatibility with Refrigerants: R134a, R1234yf, R410A | VIEW LATEST PRICE | See Our Full Breakdown |
| Automotive 3-Way Manifold Gauge Set for Refrigerants |  | Versatile Professional | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 600 psi | Compatibility with Refrigerants: R134a, R410A, R1234YF, R22, R404A | VIEW LATEST PRICE | See Our Full Breakdown |
| VEVOR 4-Way AC Gauge Set for Refrigerant Charging |  | Heavy-Duty Construction | Number of Hoses: 4 hoses (including extra black/others) | Pressure Range (Max PSI): Up to 800 psi | Compatibility with Refrigerants: R134A, R12, R22, R410A | VIEW LATEST PRICE | See Our Full Breakdown |
| Orion AC Gauge Set with Hoses and Couplers |  | Easy Operation | Number of Hoses: 4 hoses (various adapters included) | Pressure Range (Max PSI): Up to 800 psi | Compatibility with Refrigerants: R134A, R12, R22, R410A | VIEW LATEST PRICE | See Our Full Breakdown |
| Lichamp HVAC Gauges with Hoses and Refrigerant Set |  | Compact Reliability | Number of Hoses: 4 hoses (red, blue, yellow, black) | Pressure Range (Max PSI): Up to 800 psi | Compatibility with Refrigerants: R134a, R410A, R404A, R22 | VIEW LATEST PRICE | See Our Full Breakdown |
| HVAC Vacuum Pump & Gauge Set with Leak Detector |  | Premium Quality | Number of Hoses: 3 hoses (red, blue, yellow) | Pressure Range (Max PSI): Up to 600 psi | Compatibility with Refrigerants: R134a, R12, R22, R410a | VIEW LATEST PRICE | See Our Full Breakdown |
| Orion 4-Way Automotive AC Gauge Set with Hoses |  | Multi-Refrigerant Support | Number of Hoses: 4 hoses (color-coded with extra adapters) | Pressure Range (Max PSI): Up to 600 psi | Compatibility with Refrigerants: R134a, R22, R410A, R1234YF | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
BACOENG 3.6CFM AC Vacuum Pump & Gauge Set
If you’re looking for a reliable and durable AC vacuum pump and gauge set, the BACOENG 3.6CFM model is an excellent choice for HVAC professionals and serious DIY enthusiasts alike. Its alloy aluminum casing boosts durability, ensuring it withstands frequent use. The single-stage rotary vane design delivers efficient operation, while the high-volume cooling fan extends its lifespan during prolonged jobs. With a capacity of 3.6 CFM and included oil, it performs reliably across various applications. This complete kit also features a professional dial gauge, multiple hoses, adapters, and a tool bag, making it a versatile and convenient option for refrigerant servicing.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 800 psi
- Compatibility with Refrigerants:R134a, R12, R410a
- Hose Length:5 feet each
- Material Construction:Alloy aluminum casing
- Additional Features:Gauge can hang via hook
- Additional Feature:Alloy aluminum casing
- Additional Feature:Includes quick couplers/adapters
- Additional Feature:R134a-specific recharge kit
DUOYI 3-in-1 HVAC Digital Manifold & Gauge
The DUOYI 3-in-1 HVAC Digital Manifold & Gauge stands out as an ideal choice for both professional technicians and serious DIY enthusiasts who need a reliable, all-in-one tool. It combines refrigerant charging, vacuum testing, and leak detection in a compact design, saving time and space. Compatible with 24 refrigerants and featuring a NIST-certified database, it ensures accurate, professional results. The device’s ±0.5% pressure accuracy, wide temperature range, and intuitive digital display make diagnostics straightforward. Its ergonomic, shockproof casing and quick-connect fittings enhance usability, while safety features like a child-resistant battery compartment add peace of mind. It’s a versatile, efficient addition to any HVAC toolkit.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 550 psi
- Compatibility with Refrigerants:R22, R410A, R32, R134a
- Hose Length:5 feet each
- Material Construction:Durable plastic, metal components
- Additional Features:Backlit digital display
- Additional Feature:NIST-certified refrigerant database
- Additional Feature:Backlit digital display
- Additional Feature:Ergonomic shockproof casing

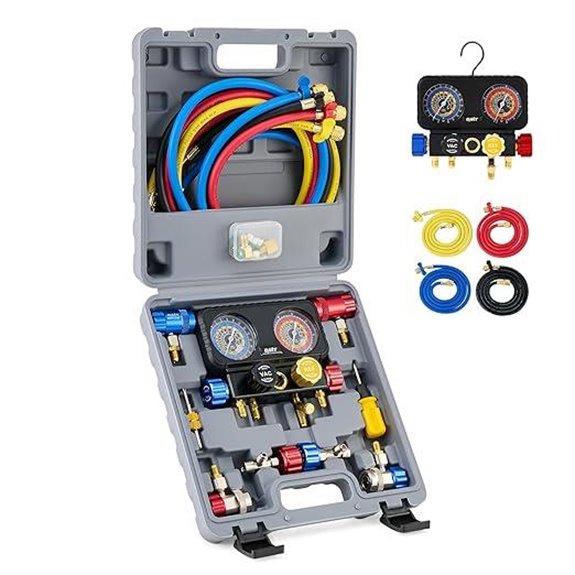

Orion R1234yf AC Gauge Set with Hoses and Couplers
For HVAC professionals and enthusiasts seeking reliable, precise refrigerant service, the Orion R1234yf AC Gauge Set with Hoses and Couplers stands out thanks to its all-inclusive component design. It features a complete 4-way manifold, four color-coded hoses supporting pressures up to 800 psi, and quick couplers for R1234yf and R134a. The set includes self-sealing can taps, adapters, and durable, oil-filled gauges that resist wear and shock. Made of sturdy aluminum with copper fittings, it ensures long-lasting performance and corrosion resistance. This gauge set is versatile, suitable for various refrigerants, and built for safety, accuracy, and durability over years of HVAC maintenance and diagnostics.
- Number of Hoses:4 hoses (including self-sealing can tap)
- Pressure Range (Max PSI):Up to 800 psi
- Compatibility with Refrigerants:R1234yf, R134a, R404a
- Hose Length:5 feet each
- Material Construction:Aluminum manifold with brass fittings
- Additional Features:Self-sealing can tap included
- Additional Feature:Reinforced pressure hoses
- Additional Feature:R1234yf and R134a adapters
- Additional Feature:Copper fittings corrosion-resistant

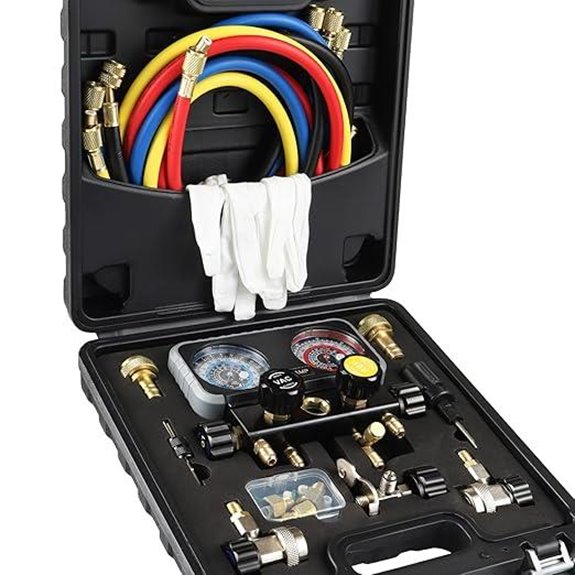

Lichamp Automotive R134A/R1234YF/R404A Gauge Set
Designed for automotive technicians and DIY enthusiasts alike, the Lichamp Automotive R134A/R1234YF/R404A Gauge Set offers versatile compatibility with common refrigerants. It’s perfect for charging, evacuation, diagnostics, and recovery in cars, garages, or mechanic shops. The large, colored dials display Fahrenheit readings, with ratings up to 800 psi (red) and 550 psi (blue), and a sight glass ensures precise refrigerant flow monitoring. The set includes four high-impact hoses, adapters, an adjustable can tap, and protective gloves, all built with durable brass and aluminum for heavy use. This detailed kit combines reliability, ease of use, and durability, making it a top choice for accurate HVAC diagnostics.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 800 psi
- Compatibility with Refrigerants:R134a, R1234YF, R404A
- Hose Length:5 feet each
- Material Construction:Brass fittings, aluminum body
- Additional Features:Leak detector included
- Additional Feature:Sight glass refrigerant flow
- Additional Feature:Heavy-duty brass/aluminum build
- Additional Feature:Extra-large colored dials

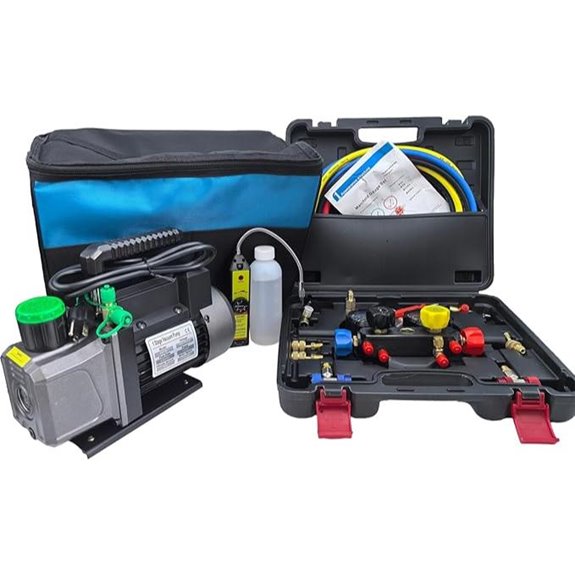

HVAC Vacuum Pump & Manifold Gauge Set with Leak Detector
If you’re serious about maintaining or repairing HVAC systems, the HVAC Vacuum Pump & Manifold Gauge Set with Leak Detector offers the dependable performance you need. Its 1/3 HP, 4.5 CFM single-stage vacuum pump efficiently evacuates systems, while the 4-way manifold gauge set provides high-accuracy, real-time monitoring. Compatible with refrigerants like R134a, R12, R22, R502, and R410a, it’s versatile for various applications. Features like all-copper motors, brass-fitted safety caps, and durable hoses ensure durability and safety. With built-in leak detection, a cooling fan, and extensive accessories, this set makes refrigerant recharging and system diagnostics faster and more precise.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 600 psi
- Compatibility with Refrigerants:R134a, R12, R22, R502, R410a
- Hose Length:5 feet each
- Material Construction:Brass, aluminum, PVC hoses
- Additional Features:Sight glass for oil monitoring
- Additional Feature:Built-in cooling fan
- Additional Feature:Includes vacuum oil
- Additional Feature:Leak detector included

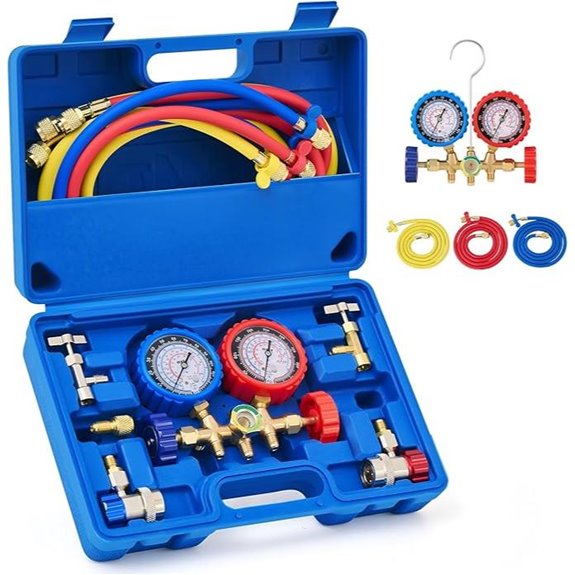

Orion Motor Tech AC Gauge Set with Hoses
The Orion Motor Tech AC Gauge Set with Hoses stands out as an excellent choice for both DIY enthusiasts and professional HVAC technicians thanks to its complete and durable design. It includes a 3-way gauge, three color-coded hoses, and versatile adapters, making refrigerant handling straightforward. The gauges are 68 mm and feature a hybrid antishock design with oil-filled cores, ensuring longevity and reliable readings. The PVC hoses are reinforced and rated for high pressure, suitable for R134a, R12, R22, and R502 refrigerants. With self-sealing and puncture-style can taps, it’s perfect for measuring system pressure, refilling, and maintenance tasks.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 600 psi
- Compatibility with Refrigerants:R134a, R12, R22, R502
- Hose Length:5 feet each
- Material Construction:Brass, PVC, reinforced hoses
- Additional Features:Puncture/self-sealing can taps
- Additional Feature:Puncture/self-sealing can taps
- Additional Feature:Hybrid antishock gauge design
- Additional Feature:Includes 1/4 to 1/2 adaptor
Orion Motor Tech AC Gauge Set with Hoses
The Orion AC Gauge Set with Hoses and Can Tap stands out as an excellent choice for both DIY enthusiasts and professional HVAC technicians who need a versatile, reliable tool. It includes a complete set of hoses—blue, red, and yellow—with quick couplers and an adapter, making setup straightforward. The gauges are durable, oil-filled, and designed with a hybrid antishock system, ensuring longevity and accurate readings. Equipped with both self-sealing and puncture-style can taps, it simplifies refrigerant canister handling. Suitable for R134a, R12, R22, and R502, this set is perfect for pressure measurement, evacuating, and refilling refrigerants efficiently.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 600 psi
- Compatibility with Refrigerants:R134a, R12, R22, R502, R404A
- Hose Length:5 feet each
- Material Construction:Brass, aluminum, PVC hoses
- Additional Features:Puncture and self-sealing can taps
- Additional Feature:68mm high/dial gauges
- Additional Feature:Dry and liquid-filled gauges
- Additional Feature:4 reinforced hose layers
3-Way AC Manifold Gauge Set with Hoses and Couplers
A Way AC Manifold Gauge Set with Hoses and Couplers stands out as an excellent choice for both professional technicians and serious home users who need reliable, durable tools for refrigerant maintenance. It supports four refrigerants—R134A, R22, R12, and R502—making it versatile for vehicle, household, and refrigerator systems. The set includes three reinforced hoses rated for 600 psi working pressure, with anti-slip clips and double-seal rings to prevent leaks. Its high-precision dual-phase fill and built-in calibration system ensure accurate measurements within ±1.6%. Crafted from durable aluminum and brass, it’s built to withstand extreme conditions, providing long-term reliability.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 600 psi
- Compatibility with Refrigerants:R134a, R22, R12, R502
- Hose Length:5 feet each
- Material Construction:Aluminum, brass, PVC hoses
- Additional Features:Full-cycle tools and accessories
- Additional Feature:Full-cycle HVAC maintenance
- Additional Feature:Heavy-duty sealing design
- Additional Feature:Transparent observation chamber

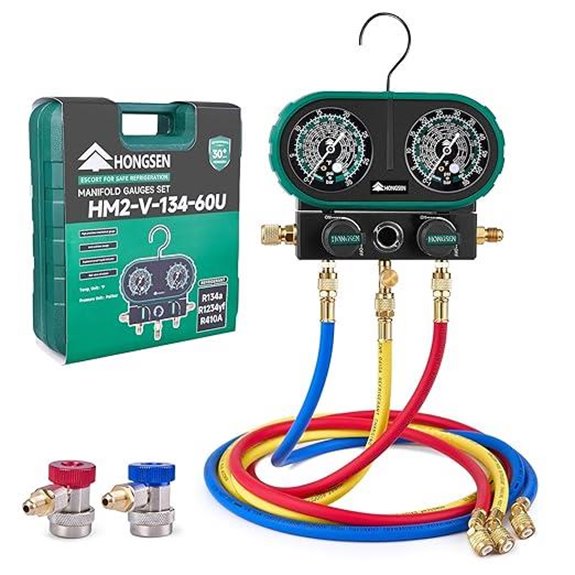

Hong Sen AC Manifold Gauge Set for R134a
Looking for a reliable manifold gauge set designed specifically for R134a refrigerant? The Hong Sen AC Manifold Gauge Set is an excellent choice. It features dual-scale gauges (up to 800 PSI) with shatter-resistant glass, ensuring durability during demanding shop tasks. Its easy-to-operate 90-degree ball valves and a durable switch make testing and charging straightforward. Constructed with impact-resistant brass and engineering plastic, it withstands tough environments. The kit includes high-quality hoses rated for 800 PSI MWP and 4000 PSI MBP, along with quick-connect couplers and a secure carry case. This gauge set offers precision, reliability, and convenience for all your R134a HVAC needs.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 800 psi
- Compatibility with Refrigerants:R134a, R1234yf, R410A
- Hose Length:5 feet each
- Material Construction:Brass, aluminum, high-quality hoses
- Additional Features:Foldable storage hook
- Additional Feature:Impact-resistant glass
- Additional Feature:Foldable storage hook
- Additional Feature:Precise ±1.6% measurement
Automotive 3-Way Manifold Gauge Set for Refrigerants
Automotive 3-Way Manifold Gauge Sets are ideal for both DIY enthusiasts and professional technicians who need reliable, precise control over refrigerant systems. These complete kits include a 3-valve manifold, color-coded hoses, quick-connect couplers, and a can tap, all stored in a portable case. Crafted with durable brass fittings, they resist corrosion and allow fine calibration. The high-pressure hoses handle up to 6000 PSI burst pressure, making refrigerant charging and evacuation safe and efficient. Universal quick-connect adapters ensure leak-proof connections across various refrigerants like R134A, R410A, and R1234YF. This versatile tool simplifies HVAC maintenance for all skill levels.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 600 psi
- Compatibility with Refrigerants:R134a, R410A, R1234YF, R22, R404A
- Hose Length:5 feet each
- Material Construction:Brass fittings, PVC hoses
- Additional Features:Complete set with adapters
- Additional Feature:Wide refrigerant compatibility
- Additional Feature:Brass adapter included
- Additional Feature:6000 PSI hose rating

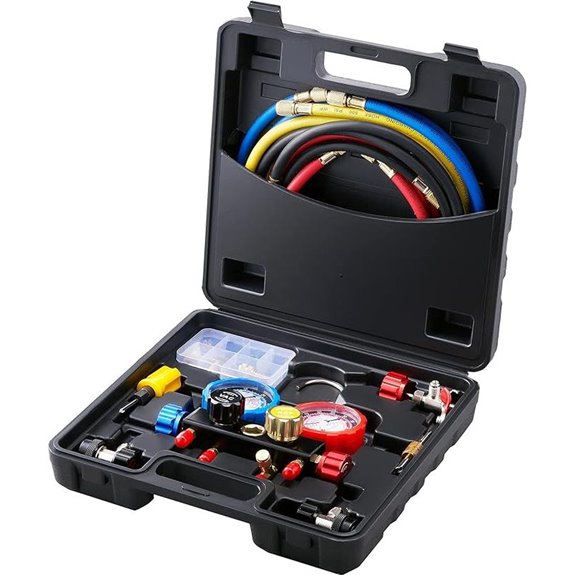

VEVOR 4-Way AC Gauge Set for Refrigerant Charging
The VEVOR 4-Way AC Gauge Set is an excellent choice for DIY enthusiasts and HVAC professionals who need a reliable tool for refrigerant charging and system maintenance. It supports refrigerants like R134A, R12, R22, and R410A, making it versatile for automotive, household AC, and refrigerator repairs. The set includes four reinforced PVC hoses rated up to 800 psi, plus quick couplers and adapters for easy connections. Its dry and liquid-filled gauges with calibration screws ensure ±1.6% accuracy, and the sight glass lets you monitor refrigerant during filling. Built from durable materials, this set promises longevity and reliable performance for both troubleshooting and routine maintenance.
- Number of Hoses:4 hoses (including extra black/others)
- Pressure Range (Max PSI):Up to 800 psi
- Compatibility with Refrigerants:R134A, R12, R22, R410A
- Hose Length:5 feet each
- Material Construction:Brass, aluminum, reinforced hoses
- Additional Features:Moisture indicator, gaskets included
- Additional Feature:Heavy-duty construction
- Additional Feature:Includes comprehensive accessories
- Additional Feature:Visual refrigerant monitoring

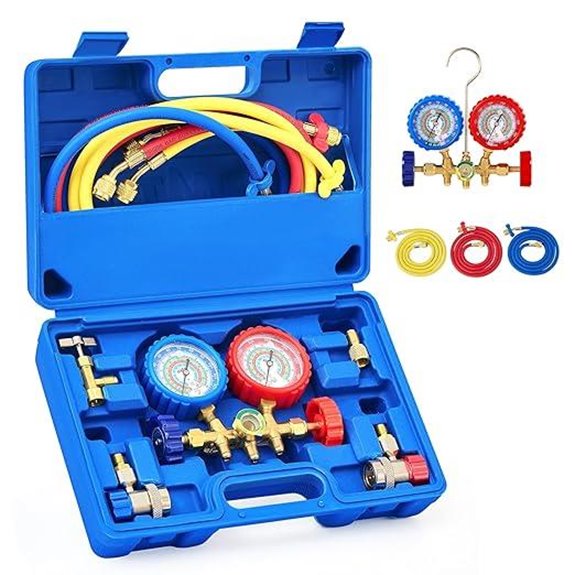

Orion AC Gauge Set with Hoses and Couplers
If you’re a DIY enthusiast or a professional technician seeking a versatile and reliable gauge set, the Orion AC Gauge Set with Hoses and Couplers stands out. It includes a 3-way gauge, three color-coded hoses, quick couplers, a trap adapter, and a puncture-style can tap, making it perfect for diagnostics, coolant recharge, and pressure measurement across various refrigerants like R134a, R12, R22, and R502. The hybrid gauges are durable, with shock-resistant oil-filled cores and dry dials for winter performance. Made from solid brass, ABS, and rubber, it’s built for heavy-duty use, with a moisture indicator and calibration screws for precise, reliable readings every time.
- Number of Hoses:4 hoses (various adapters included)
- Pressure Range (Max PSI):Up to 800 psi
- Compatibility with Refrigerants:R134A, R12, R22, R410A
- Hose Length:5 feet each
- Material Construction:Brass, aluminum, PVC
- Additional Features:Observation chamber, calibration screws
- Additional Feature:Moisture indicator gauge
- Additional Feature:4-layer reinforced hoses
- Additional Feature:Heavy-duty brass components

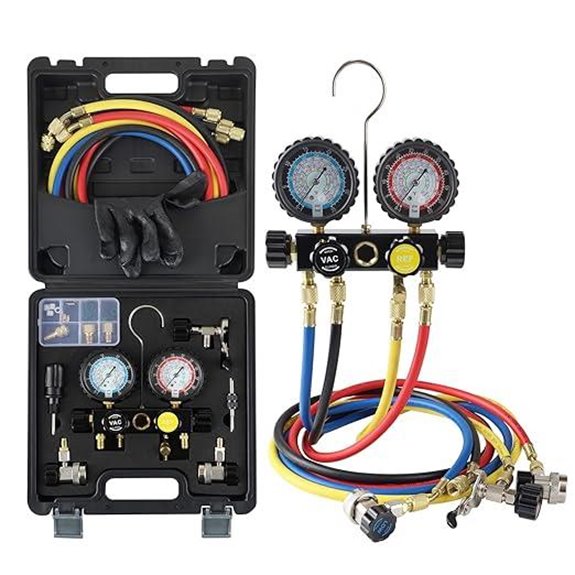

Lichamp HVAC Gauges with Hoses and Refrigerant Set
Lichamp HVAC Gauges with Hoses and Refrigerant Set stands out as an excellent choice for professional technicians who need a reliable, multifunctional tool for diagnosing and servicing automotive AC systems. This set includes a 4-way diagnostic gauge, four durable 5-foot hoses in different colors, quick couplers, and adapters, making it versatile for various tasks like charging, evacuation, and recovery. Its all-metal construction guarantees durability, while the easy-to-read pressure gauges and color-coded design simplify operation. Compatible with multiple refrigerants like R134A, R410A, R404A, and R22, it’s perfect for accurate diagnostics and efficient maintenance in any automotive HVAC repair shop.
- Number of Hoses:4 hoses (red, blue, yellow, black)
- Pressure Range (Max PSI):Up to 800 psi
- Compatibility with Refrigerants:R134a, R410A, R404A, R22
- Hose Length:5 feet each
- Material Construction:Brass, aluminum, PVC hoses
- Additional Features:Heavy-duty construction, multiple adapters
- Additional Feature:All-metal parts design
- Additional Feature:Easy assembly manual
- Additional Feature:Real-time coolant monitoring
HVAC Vacuum Pump & Gauge Set with Leak Detector
Professionals and serious DIY enthusiasts will appreciate the HVAC Vacuum Pump & Gauge Set with Leak Detector for its reliable performance and all-encompassing features. It includes a powerful 1/3 HP, 4.5 CFM single-stage vacuum pump with copper construction for durability, and an aluminum alloy casing that dissipates heat and resists corrosion. The manifold gauge features precise dial readings for temperature, pressure, and refrigerant flow, with three hoses rated for high pressure. The kit also includes essential accessories like a leak detector, core depressor, and adapters for various refrigerants. Its portable, organized case makes it easy to transport and store, ensuring professional-grade diagnostics every time.
- Number of Hoses:3 hoses (red, blue, yellow)
- Pressure Range (Max PSI):Up to 600 psi
- Compatibility with Refrigerants:R134a, R12, R22, R410a
- Hose Length:5 feet each
- Material Construction:Copper, brass, PVC hoses
- Additional Features:Leak detector, core depressor
- Additional Feature:Thickened storage case
- Additional Feature:Multiple system adapters
- Additional Feature:Leak detection capability
Orion 4-Way Automotive AC Gauge Set with Hoses
The Orion 4-Way Automotive AC Gauge Set with Hoses stands out as an ideal choice for both DIY enthusiasts and professional technicians seeking a complete and durable tool. It includes a 4-way gauge, color-coded hoses, quick couplers, and various adapters to handle R410a, R22, and R134a refrigerants. The hybrid anti-shock gauges with oil-filled cores provide accurate readings and resist wear. Constructed from sturdy brass, ABS, and rubber, it’s built for heavy-duty use. The color-coded hoses and moisture indicator make system monitoring straightforward. Whether measuring pressure, evacuating, or refilling, this set offers versatility and reliability for precise HVAC diagnostics.
- Number of Hoses:4 hoses (color-coded with extra adapters)
- Pressure Range (Max PSI):Up to 600 psi
- Compatibility with Refrigerants:R134a, R22, R410A, R1234YF
- Hose Length:5 feet each
- Material Construction:Brass, aluminum, reinforced hoses
- Additional Features:Multiple adapters, leak-proof couplers
- Additional Feature:Moisture indicator included
- Additional Feature:4 color-coded hoses
- Additional Feature:Heavy-duty rubber fittings
Factors to Consider When Choosing AC Manifold Gauge Sets
When selecting an AC manifold gauge set, I look at several key factors to ensure it meets my needs. Compatibility with different refrigerants, gauge accuracy, hose durability, ease of use, and build quality all play vital roles in my decision. Considering these points helps me find a reliable, efficient set that lasts.
Compatibility With Refrigerants
Ever wonder if your AC manifold gauge set is compatible with the refrigerant in your system? It’s crucial to confirm that the gauges, hoses, and couplers are rated for the specific refrigerant you’re working with, whether it’s R134a, R22, R410A, or R1234yf. Different refrigerants have unique pressure and temperature ranges, so check that your gauge set can handle these safely and accurately. Verify that the included adapters support your system’s fittings and connections to prevent leaks or damage. Using a manifold gauge set designed for your refrigerant not only guarantees precise readings but also ensures safety and durability during service. Compatibility is a critical factor that shouldn’t be overlooked when selecting the right gauge set for your HVAC diagnostics.
Gauge Accuracy and Range
Choosing an AC manifold gauge set with accurate readings is essential for effective diagnostics. I look for gauges that provide measurement accuracy within ±1.6% to guarantee pressure readings are reliable. It’s important that the gauges have a sufficient pressure range, typically from 0 to 800 PSI, so they can handle various refrigerant systems. Clear, easy-to-read dials with both high and low-pressure measurements help me quickly interpret data during service. I also check for calibration screws or systems that maintain long-term accuracy, preventing drift over time. Additionally, a sight glass or visual indicator is helpful for monitoring refrigerant flow. These features ensure I get precise, thorough diagnostics, saving time and reducing errors during HVAC repairs.
Hose Durability and Length
Hose durability plays a crucial role in ensuring reliable and safe HVAC service, as hoses made from reinforced PVC or rubber are better equipped to withstand wear, pressure, and environmental stressors. High-quality hoses support working pressures of at least 600 psi and burst pressures exceeding 3000 psi, providing safety during demanding tasks. The length of the hoses also matters; 5 to 6 feet offers better flexibility and reach for different system configurations. However, longer hoses can increase pressure drops if not properly reinforced. The thickness and layering, including reinforcement layers, directly impact lifespan and ability to handle high-pressure refrigerant flow. Choosing hoses with high-quality fittings and proper ratings helps prevent leaks and failures, ensuring system integrity and safety during repeated use.
Ease of Operation
When selecting an AC manifold gauge set, ease of operation should be a top priority because it directly affects the efficiency and safety of your work. Clear, labeled gauges and color-coded hoses help you identify connections quickly, saving time and reducing errors. Quick-connect fittings that snap on securely streamline setup and teardown, letting you focus on diagnostics instead of fiddling with fittings. User-friendly controls, like smooth valves and switches, allow precise regulation without complex adjustments, enhancing accuracy. Features like backlit displays or digital readouts improve visibility in low-light conditions, making readings easier and more accurate. Additionally, a straightforward manual or instructions guide helps you understand proper procedures, minimizing mistakes. Prioritizing ease of operation ensures smoother workflows and safer, more reliable diagnostics.
Build Quality and Materials
Build quality and materials considerably impact the durability and reliability of an AC manifold gauge set. I look for sets made from sturdy materials like brass, aluminum, or reinforced PVC, as they withstand high pressure and resist corrosion over time. All-metal bodies and reinforced hoses are essential for longevity and dependable performance in demanding HVAC tasks. Accurate gauges with oil-filled cores or shock-resistant designs help maintain calibration and deliver precise readings consistently. Additionally, impact-resistant shells and shatter-proof glass protect internal components in tough environments, reducing the risk of damage. High-pressure ratings, often up to 800 psi or more, ensure safety and prevent leaks during system servicing. Choosing a gauge set with solid build quality guarantees it will serve reliably through repeated use and challenging conditions.
Portability and Storage
Choosing an AC manifold gauge set that’s portable and easy to store can make a significant difference in your HVAC work. I look for models with a durable, lightweight design, often made from aluminum or plastic, to guarantee easy handling. A compact size helps me maneuver around tight spaces, while a well-organized storage case keeps hoses and accessories neat, making setup faster. Handles or straps are a big plus for comfortable transport, especially when I’m on the move for on-site repairs. I also prioritize impact-resistant, weatherproof cases that protect sensitive gauges from environmental damage. This way, I can confidently carry my tools without worry, knowing everything is secure and protected, which ultimately boosts my efficiency and professionalism in the field.
Additional Features and Accessories
Incorporating additional accessories like quick couplers, adapters, and can taps can substantially streamline your workflow by making refrigerant connections faster and more secure. These tools reduce the risk of leaks and save time during diagnostics or refilling. It’s also beneficial if the set includes leak detectors or refrigerant recovery tools, ensuring you can perform exhaustive system diagnostics and maintenance without needing extra equipment. Features like backlit displays and shock-resistant casings enhance usability in various environments, especially in low-light or rugged conditions. Durable hoses with reinforced layers and high-pressure ratings (up to 800 psi) boost safety and longevity. Finally, having storage cases or tool bags keeps accessories organized and protected, making transportation and storage hassle-free while ensuring your tools stay in top condition.
Frequently Asked Questions
What Is the Maximum Pressure Rating for These Gauge Sets?
The maximum pressure rating for these gauge sets typically ranges from 600 to 800 PSI, depending on the model. I always check the specifications before purchasing to guarantee they can handle the highest pressures I might encounter. It’s essential to use gauges within their rated limits to stay safe and get accurate readings. Always follow manufacturer guidelines and safety protocols when working with high-pressure HVAC systems.
How Compatible Are These Gauges With Different Refrigerant Types?
Think of these gauges as multilingual interpreters—they can communicate with various refrigerants. Most modern gauge sets are compatible with R-22, R-410A, and other common refrigerants, making them versatile tools for HVAC techs. I find that choosing a gauge set with adjustable ports and compatible fittings guarantees smooth diagnostics across different refrigerant types. It’s like having a universal translator that keeps your work efficient and accurate.
Do Any Models Include Built-In Digital Temperature Measurement?
Yes, some models do include built-in digital temperature measurement. I’ve found that these gauges offer quick, precise readings, making diagnostics more efficient. They typically feature a digital display that’s easy to read and can measure refrigerant temperatures directly. I recommend looking for models that combine digital temperature measurement with compatibility across various refrigerants, ensuring you get accurate results in diverse HVAC systems.
Are These Gauge Sets Suitable for Both Residential and Commercial HVAC Systems?
I’ve found that many AC manifold gauge sets are versatile enough for both residential and commercial HVAC systems. They’re designed with different port sizes and pressure ranges to handle various setups. I always double-check the specifications to guarantee compatibility. These gauges are reliable tools that help me diagnose issues accurately across different scales, making my work smoother whether I’m servicing a home system or a large commercial unit.
What Maintenance Is Recommended to Ensure Gauge Accuracy Over Time?
To keep my gauge sets accurate, I regularly calibrate them according to the manufacturer’s instructions and check for leaks or damage. I also store them in a clean, dry place and avoid exposing them to extreme temperatures. Periodic cleaning of the gauges and hoses prevents debris buildup. By following these steps, I guarantee my diagnostic tools stay precise, saving me time and preventing costly errors during HVAC repairs.
Conclusion
When choosing an AC manifold gauge set, I look for accuracy, durability, and ease of use. I want reliability, versatility, and clear readings. I seek quality, compatibility, and safety features. Ultimately, I want a tool that simplifies diagnostics, enhances efficiency, and guarantees precise results. By considering these factors, you can confidently select the best gauge set to keep your HVAC system running smoothly and efficiently.
