In 2026, I recommend the Hantek Automotive Diagnostic Oscilloscope, a versatile device perfect for engine tuning, offering high bandwidth and multiple channels. The 3-in-1 Portable Automotive Oscilloscope and Multimeter provide combo testing for efficient diagnostics. The Hantek 6074BE 70MHz scope delivers precise waveform analysis, while the HANMATEK DOS1104 guarantees portability with dependable multi-channel support. Keep exploring to discover more about these top options and how they fit your diagnostic needs.
Key Takeaways
- Look for oscilloscopes with ≥70MHz bandwidth to accurately capture high-frequency engine signals.
- Ensure models have 4+ channels and high-voltage input ranges up to ±400V for comprehensive diagnostics.
- Prioritize devices with USB, SD card storage, and user-friendly interfaces for efficient data management.
- Choose portable, rugged designs with built-in rechargeable batteries for reliable field use.
- Select oscilloscopes supporting multi-signal output and compatibility with diverse automotive sensors.
| Hantek Automotive Diagnostic Oscilloscope and DAQ |  | Best Automotive Diagnostic | Number of Channels: 8 channels | Bandwidth: Not specified | Sampling Rate: 2.4MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| 3-in-1 Portable Automotive Oscilloscope and Multimeter |  | Most Versatile | Number of Channels: 3 channels | Bandwidth: 50MHz | Sampling Rate: 250MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 6074BE 70MHz 4-Channel Digital Oscilloscope |  | Professional Grade | Number of Channels: 4 channels | Bandwidth: 70MHz | Sampling Rate: 1GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| HANMATEK DOS1104 4-Channel Portable Digital Oscilloscope |  | Top Portable Choice | Number of Channels: 4 channels | Bandwidth: 110MHz | Sampling Rate: 1GS/s | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks

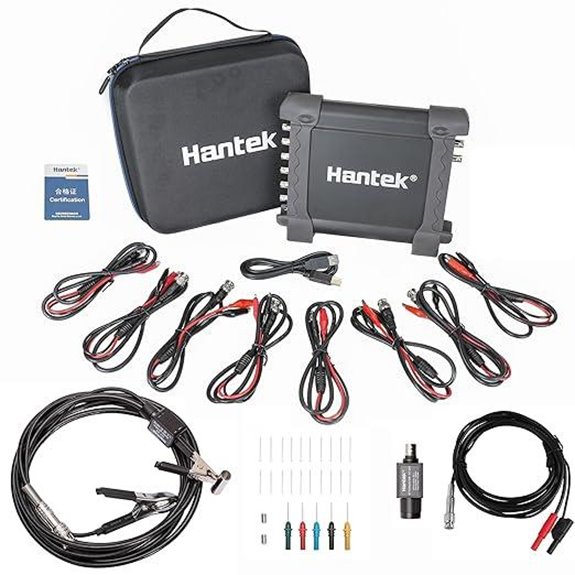

Hantek Automotive Diagnostic Oscilloscope and DAQ
If you’re looking for a versatile diagnostic tool that combines multiple functions into one device, the Hantek Automotive Diagnostic Oscilloscope and DAQ is an excellent choice. It features 8 channels, allowing me to monitor various signals simultaneously, with high-resolution 12-bit data and a 2.4MSa/s sampling rate. I can quickly diagnose ignition, sensors, and bus systems using over 80 built-in automotive functions. Its programmable signal generator helps simulate crankshaft or camshaft signals, making testing easier. Plus, with USB connectivity, I can connect it to my computer or smartphone for seamless data transfer and analysis, streamlining my troubleshooting process.
- Number of Channels:8 channels
- Bandwidth:Not specified
- Sampling Rate:2.4MSa/s
- Power Source:USB-powered
- Connectivity:USB 2.0
- Measurement Capabilities:Automotive diagnostics, programmable signal generation
- Additional Feature:Programmable signal generation
- Additional Feature:USB data transfer
- Additional Feature:Multi-purpose testing applications
3-in-1 Portable Automotive Oscilloscope and Multimeter
The in-1 Portable Automotive Oscilloscope and Multimeter stands out as an ideal choice for automotive technicians who need a versatile, compact tool for on-the-go diagnostics. This 3-in-1 device combines an oscilloscope, digital multimeter, and DDS signal generator, all in a tablet-style design with a bright 4.3-inch touchscreen. Its FPGA-based hardware guarantees reliable waveform capture and protection from overheating. With a 250MS/s sampling rate, 50MHz bandwidth, and voltage measurement up to ±400V, it handles a wide range of electronic tests. The multimeter offers high-precision readings, and the DDS generator provides customizable signals up to 10MHz, making it a thorough diagnostic tool.
- Number of Channels:3 channels
- Bandwidth:50MHz
- Sampling Rate:250MS/s
- Power Source:Built-in battery
- Connectivity:USB, touchscreen interface
- Measurement Capabilities:Multimeter, waveform generator, FFT analysis
- Additional Feature:Portable touchscreen design
- Additional Feature:Waveform FFT analysis
- Additional Feature:Versatile signal outputs
Hantek 6074BE 70MHz 4-Channel Digital Oscilloscope
Engine tuners seeking a versatile, portable testing tool will find the Hantek 6074BE particularly valuable. With its 70MHz bandwidth and four channels, it handles complex signals effortlessly. The 1GSa/s sampling rate ensures precise waveform capture, while high input sensitivity allows detailed diagnostics from 2mV to 10V per division. Its compatibility with Windows 10, 8, and 7, plus support for USB connectivity, makes it ideal for field use—whether on a mobile device or laptop. Designed for engine diagnostics, it inspects over 80 items, offers automatic measurements, waveform recording, and trigger functions. All this fits into a compact, user-friendly package for engine tuning on the go.
- Number of Channels:4 channels
- Bandwidth:70MHz
- Sampling Rate:1GSa/s
- Power Source:USB-powered
- Connectivity:USB 2.0
- Measurement Capabilities:Automatic measurement functions, waveform record
- Additional Feature:20 automatic measurement functions
- Additional Feature:Compatible with Windows
- Additional Feature:Waveform record and replay

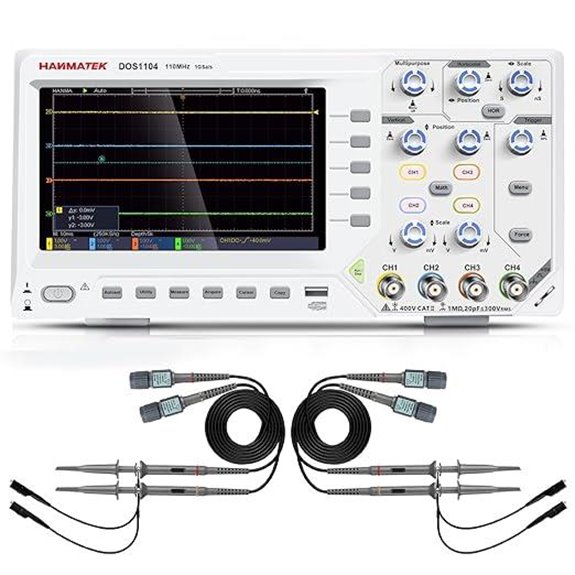

HANMATEK DOS1104 4-Channel Portable Digital Oscilloscope
For professionals seeking a portable yet powerful tool for engine tuning, the HANMATEK DOS1104 4-Channel Portable Digital Oscilloscope stands out with its 110 MHz bandwidth and 1 GS/s sampling rate. It features four channels, a flexible time base from 2 ns/Div to 1000 s/Div, and adjustable vertical scales from 5 mV/div to 5 V/div. Its 20K points of storage per acquisition and support for 16 waveform groups enable detailed analysis. The 7-inch color TFT display makes measurements clear, while built-in functions like a frequency meter and USB connectivity streamline data management. This scope combines portability with high performance for on-the-go engine diagnostics.
- Number of Channels:4 channels
- Bandwidth:110MHz
- Sampling Rate:1GS/s
- Power Source:DC supply
- Connectivity:USB, U disk, software support
- Measurement Capabilities:Automatic measurement, waveform capture
- Additional Feature:Built-in frequency meter
- Additional Feature:Multiple waveform tracking
- Additional Feature:Supports U disk storage
Factors to Consider When Choosing Premium Automotive Oscilloscope Options for Engine Tuning
When selecting a premium automotive oscilloscope for engine tuning, I focus on key factors like measurement bandwidth, channel options, and data connectivity. These features directly impact the device’s performance and usability during diagnostics. Understanding what to prioritize helps me choose the right tool for accurate and efficient tuning.
Measurement Bandwidth Range
Choosing the right measurement bandwidth is essential because it determines how accurately an oscilloscope can capture rapid signal changes during engine tuning. A higher bandwidth allows the scope to faithfully reproduce fast transients and high-frequency noise, which are critical for precise diagnostics. For automotive applications, a bandwidth of at least 50MHz is recommended, but 70MHz or higher is preferable for detailed tuning work. To avoid signal distortion, the bandwidth should be at least five times greater than the highest frequency component expected in the signals you test. Insufficient bandwidth can lead to signal attenuation and inaccurate readings, potentially causing misdiagnosis or improper tuning adjustments. Thus, selecting an oscilloscope with adequate measurement bandwidth ensures reliable, detailed waveform analysis essential for superior engine performance.
Channel and Input Options
Selecting the right channel and input options is crucial for effective engine tuning, as they directly impact your ability to accurately measure and analyze multiple signals simultaneously. Premium oscilloscopes typically offer four or more channels, allowing you to monitor various sensors and circuits at once for a thorough diagnosis. High input voltage ranges, up to ±400V, ensure you can test automotive electrical systems safely without damaging the device. Differential and single-ended inputs provide flexibility for complex circuit measurements. Adjustable input impedance and sensitivity settings help optimize signal clarity and accuracy. Additional features like trigger and auxiliary channels enhance your ability to capture precise signal events and perform detailed analysis. These options ensure your oscilloscope adapts to diverse engine tuning scenarios efficiently.
Data Storage and Connectivity
Having reliable data storage and connectivity options is essential for effective engine tuning with an oscilloscope. I look for devices that support USB, SD cards, or other storage options to easily save and transfer diagnostic data. High-speed interfaces like USB 3.0 or Ethernet are vital for quick data transfer, saving me time during busy sessions. I also verify that the oscilloscope offers compatible software or firmware to streamline data management, analysis, and reporting. Internal memory or expandable storage helps accommodate large waveform recordings, ensuring I don’t lose important data. Features like waveform screenshot capability and exporting options in formats like CSV or PNG are valuable for thorough documentation and sharing results with clients. These features make data handling efficient, accurate, and versatile.
Ease of Use Features
When evaluating premium automotive oscilloscopes for engine tuning, ease of use is a critical factor that can considerably impact workflow and accuracy. User-friendly interfaces with intuitive controls and clear displays make complex signal analysis more manageable. Features like automatic measurement modes and preset diagnostic functions help reduce setup time and minimize operator errors. Touchscreen functionality and graphical waveform visualization improve navigation and data interpretation, allowing technicians to focus on diagnostics instead of fighting with the device. Clear labeling of input channels, measurement options, and trigger settings enable quick adjustments during tuning sessions. Built-in help menus, tutorials, or guided calibration processes support technicians in efficiently utilizing advanced features, ensuring precise results without unnecessary frustration.
Signal Generation Capabilities
A premium automotive oscilloscope’s signal generation capabilities are vital for thorough engine diagnostics and tuning. It should offer a versatile signal generator that produces various waveforms like sine, square, triangle, and noise signals, enabling comprehensive testing of engine sensors and electronic systems. The maximum output frequency should reach at least 10MHz to accurately simulate engine signals such as crankshaft and camshaft pulses. Adjustable parameters like frequency, amplitude, duty cycle, and phase shift are essential for precise troubleshooting. Multi-channel signal generation allows simultaneous testing of multiple sensors or actuators, boosting efficiency. Additionally, supporting different output voltage levels, including LVTTL or similar standards, ensures compatibility with a wide range of automotive components, making your diagnostics more reliable and versatile.
Portability and Power
Choosing a portable automotive oscilloscope hinges on its ability to deliver reliable power and ease of transport. I look for models with a built-in rechargeable battery that lasts at least four hours, making sure I can work in the field without interruptions. Compact, lightweight designs, like tablet-style devices with integrated screens, make it simple to carry and set up in tight engine bays or on-site locations. Support for USB or external power sources extends usage when the internal battery runs low, which is vital during lengthy diagnostics. Low power consumption features help maintain consistent performance over extended sessions. Rugged casings and protective carry cases are essential for durability, safeguarding the oscilloscope during transport and in challenging environments. These features ensure dependable operation wherever I need to tune engines.
Frequently Asked Questions
What Features Distinguish the Best Oscilloscopes for Professional Engine Tuning?
The best oscilloscopes for professional engine tuning feature high bandwidth, fast sampling rates, and multiple channels to capture complex signals accurately. I look for models with intuitive interfaces, advanced triggering options, and precise measurement tools. Portability and durability are key, too, so I can work efficiently in various environments. These features guarantee I get reliable, detailed insights into engine performance, making tuning more precise and effective.
How Do Oscilloscopes Differ in Ease of Use for Beginners Versus Experts?
Oh, the joy of choosing an oscilloscope! For beginners, I find ease of use is all about simple interfaces and clear menus—think of it as a user-friendly GPS. Experts, on the other hand, revel in advanced features and customization, making it feel like a complex control panel. I’ve seen novice models overwhelm newbies, while professionals thrive on the depth of options. It’s all about what you need and your experience level!
What Maintenance Is Required to Keep Oscilloscopes Functioning Optimally?
To keep my oscilloscope working properly, I regularly clean the probes and screen, check calibration, and guarantee all connections are secure. I also update the firmware when needed and store the device in a dry, dust-free environment. Periodic inspections help me spot issues early, preventing costly repairs. Staying proactive with maintenance guarantees accurate readings and prolongs my oscilloscope’s lifespan, so I can rely on it for precise engine tuning.
Can These Oscilloscopes Connect to Other Diagnostic Tools or Software?
Yes, these oscilloscopes can connect to other diagnostic tools and software. I often use USB or Ethernet ports for seamless integration, allowing me to transfer data quickly. Many models also support Bluetooth or Wi-Fi, making wireless connections easy. This compatibility helps me analyze engine performance more effectively and streamline my workflow, ensuring I get accurate results and efficient diagnostics every time.
What Is the Typical Lifespan of a High-End Automotive Oscilloscope?
Think of a high-end automotive oscilloscope as a trusty steed; with proper care, it can serve you for well over a decade. Generally, these devices last between five to ten years, but top models with premium build quality and regular maintenance can easily reach 15 years or more. I’ve seen experts keep their oscilloscopes running smoothly, turning them into lifelong partners in their diagnostic journey.
Conclusion
So, there you have it—your ticket to becoming the Sherlock Holmes of engine tuning. These oscilloscopes are basically the supermodels of automotive diagnostics, ready to expose every secret your engine’s hiding. Whether you prefer the all-in-one marvel or the sleek portable, just remember: with these tools, you’ll diagnose faster than you can say “misfire.” Who knew tuning engines could be this glamorous? Now go on, impress your car—and yourself!
