If you’re looking for the 12 best automotive oscilloscopes for tuning in 2026, I recommend models that offer high bandwidth, multiple channels, portability, and advanced signal generation features. Devices like the FNIRSI DSO-510, Hantek 6074BE, and TOPDON Phoenix provide accurate diagnostics and versatile testing for modern vehicle electronics. These tools are user-friendly and perfect for precise troubleshooting. Keep going, and you’ll discover detailed insights to help you choose the perfect oscilloscopes for your needs.
Key Takeaways
- The list includes high-resolution, multi-channel oscilloscopes suitable for detailed automotive diagnostics and tuning.
- It features portable, handheld models ideal for field troubleshooting and quick signal analysis in vehicles.
- Automotive-specific oscilloscopes with 8-channel support complex signal testing and multi-system diagnostics.
- High-bandwidth, precision models are included for modern vehicle electronics and advanced electronic systems.
- Many devices incorporate built-in signal generators and testing functions to enhance comprehensive automotive troubleshooting.
| FNIRSI DSO-510 Handheld Oscilloscope & Signal Generator |  | Best Portable | Number of Channels: 2 channels | Bandwidth: 10 MHz | Sampling Rate: 48 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| FNIRSI 2C53P 3-in-1 Handheld Oscilloscope & Multimeter |  | Best All-in-One | Number of Channels: 2 channels | Bandwidth: 50 MHz | Sampling Rate: 250 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek Automotive Diagnostic Oscilloscope Kit |  | Automotive Specialist | Number of Channels: 8 channels | Bandwidth: 50 MHz | Sampling Rate: 2.4 MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| HANMATEK DOS1104 4-Channel Digital Oscilloscope |  | High-Performance | Number of Channels: 4 channels | Bandwidth: 110 MHz | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| FNRSI 2C53P Plus Portable 3-in-1 Oscilloscope and Multimeter |  | Versatile & Compact | Number of Channels: 2 channels | Bandwidth: 50 MHz | Sampling Rate: 250 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| FNIRSI 1013D Plus Portable Handheld Oscilloscope |  | User-Friendly | Number of Channels: 2 channels | Bandwidth: 100 MHz | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| 3-in-1 Handheld Oscilloscope with Multimeter |  | Multi-Function | Number of Channels: Dual (2 channels) | Bandwidth: 30 MHz (optional high-speed modes) | Sampling Rate: 200 MSa/s or 280 MSa/s (high-speed modes) | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 1008C 8CH USB Automotive Oscilloscope |  | Automotive Focused | Number of Channels: 8 channels | Bandwidth: 70 MHz | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| FNRSI 2in1 Portable Oscilloscope & Signal Generator |  | Budget Powerhouse | Number of Channels: 2 channels | Bandwidth: 10 MHz | Sampling Rate: 48 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| FNIRSI 2C53P 3-in-1 Handheld Oscilloscope & Multimeter | | Handheld Convenience | Number of Channels: 2 channels | Bandwidth: 50 MHz | Sampling Rate: 250 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 6074BE 70MHz Digital Oscilloscope (USB) |  | Professional-Grade | Number of Channels: 4 channels | Bandwidth: 70 MHz | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| TOPDON Phoenix Scope 4-Channel Oscilloscope |  | Automotive Expert | Number of Channels: 4 channels | Bandwidth: 70 MHz | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
FNIRSI DSO-510 Handheld Oscilloscope & Signal Generator
If you’re looking for a versatile and portable oscilloscope for automotive tuning, the FNIRSI DSO-510 stands out because it combines a handheld oscilloscope with a signal generator in one compact device. Its 2.8-inch TFT LCD provides clear visuals, supporting waveform scaling, suspension, and saving functions. With a 10 MHz bandwidth and 48 MS/s sampling rate, it handles both analog and digital signals effectively. The device offers auto trigger modes and measures voltages up to 400 V. Plus, its built-in signal generator produces 13 waveform types at up to 50 KHz, making it ideal for on-the-go testing and diagnostics.
- Number of Channels:2 channels
- Bandwidth:10 MHz
- Sampling Rate:48 MS/s
- Display Size:2.8-inch TFT
- Power Source:Built-in 1000mAh battery
- Signal Generator Output Frequency:50 KHz
- Additional Feature:Supports waveform saving/exporting
- Additional Feature:Infinite afterglow display
- Additional Feature:Long-lasting 1000mAh battery

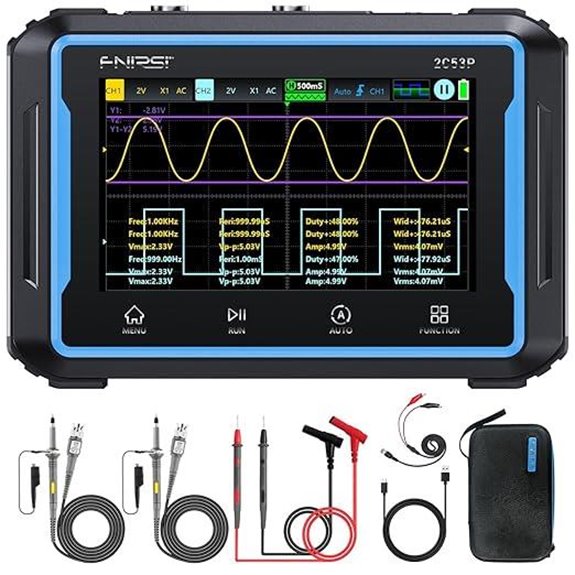

FNIRSI 2C53P 3-in-1 Handheld Oscilloscope & Multimeter
The FNIRSI 2C53P 3-in-1 Handheld Oscilloscope & Multimeter stands out for automotive enthusiasts and field technicians who need versatile, portable testing tools. Its compact design combines oscilloscope, multimeter, and DDS signal generator functions, all accessible via a clear 4.3-inch IPS touch screen. With 50 MHz bandwidth, 250 MS/s sampling rate, and support for five measurement modes, it handles both analog and digital signals precisely. The device’s waveform analysis, phase, and harmonic spectrum features make it perfect for diagnostics. Plus, its long-lasting 4000 mAh battery and quick auto-measure function assure efficiency during on-the-go troubleshooting.
- Number of Channels:2 channels
- Bandwidth:50 MHz
- Sampling Rate:250 MS/s
- Display Size:4.3-inch IPS
- Power Source:Built-in 4000 mAh battery
- Signal Generator Output Frequency:10 MHz
- Additional Feature:50 MHz bandwidth
- Additional Feature:FFT spectrum analysis
- Additional Feature:Automatic measurement modes

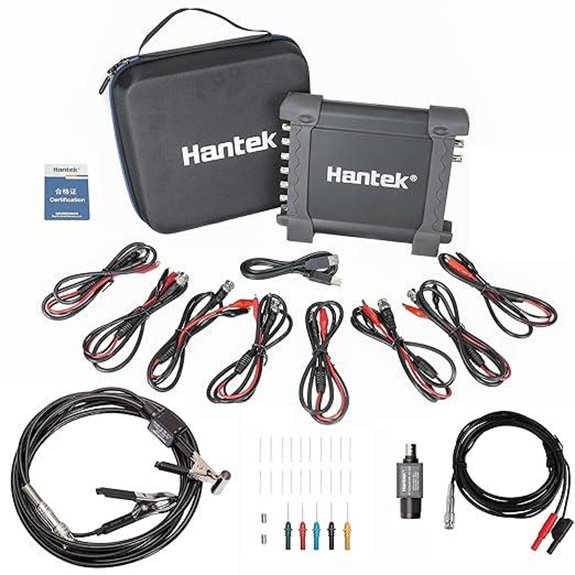

Hantek Automotive Diagnostic Oscilloscope Kit
Engineers and technicians seeking an all-in-one diagnostic tool will find the Hantek Automotive Diagnostic Oscilloscope Kit particularly compelling, thanks to its 8-channel design and versatile capabilities. It combines automotive diagnostics, general-purpose oscilloscope functions, and programmable signal generation in one package. With over 80 automotive diagnostic features, it quickly identifies faults in ignition, sensors, and bus systems. The oscilloscope offers 12-bit resolution, 4K memory, and a 2.4MSa/s sampling rate, making signal analysis straightforward. Its USB connectivity allows seamless data transfer to Android devices or computers, making it ideal for automotive repair, troubleshooting, and hobbyist projects.
- Number of Channels:8 channels
- Bandwidth:50 MHz
- Sampling Rate:2.4 MSa/s
- Display Size:7-inch TFT LCD
- Power Source:Powered via USB, no internal battery specified
- Signal Generator Output Frequency:10 MHz
- Additional Feature:8-channel automotive diagnostics
- Additional Feature:Programmable signal output
- Additional Feature:USB data storage support

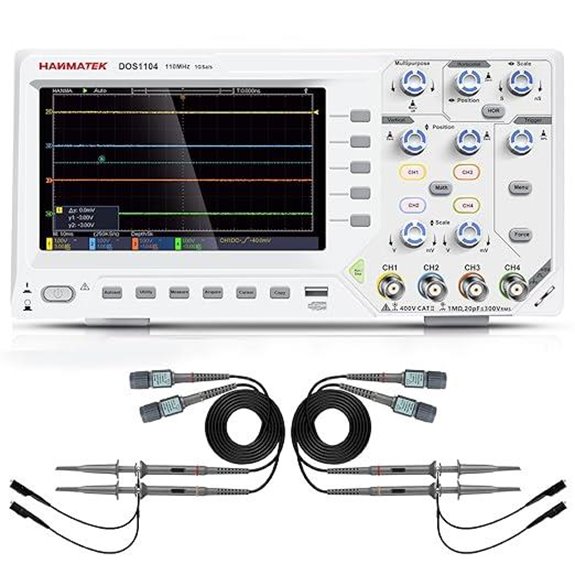

HANMATEK DOS1104 4-Channel Digital Oscilloscope
With its 110 MHz bandwidth and four channels, the HANMATEK DOS1104 is an excellent choice for automotive tuning professionals seeking precise, multi-signal analysis on the go. It offers a 1 GS/s real-time sampling rate and a flexible time base from 2 ns/Div to 1000 s/Div, ensuring detailed waveform capture. The vertical scale adjusts from 5 mV/div to 5 V/div, accommodating various signal levels. Its 20K sampling points and storage for 16 waveform groups support all-encompassing data analysis. The built-in frequency meter and current measurement functions add versatility, while the 7-inch color display and USB connectivity make it user-friendly and portable.
- Number of Channels:4 channels
- Bandwidth:110 MHz
- Sampling Rate:1 GSa/s
- Display Size:7-inch TFT LCD
- Power Source:Powered via DC supply
- Signal Generator Output Frequency:Up to 250 KHz
- Additional Feature:7-inch true color display
- Additional Feature:Cursor measurement modes
- Additional Feature:Supports waveform export

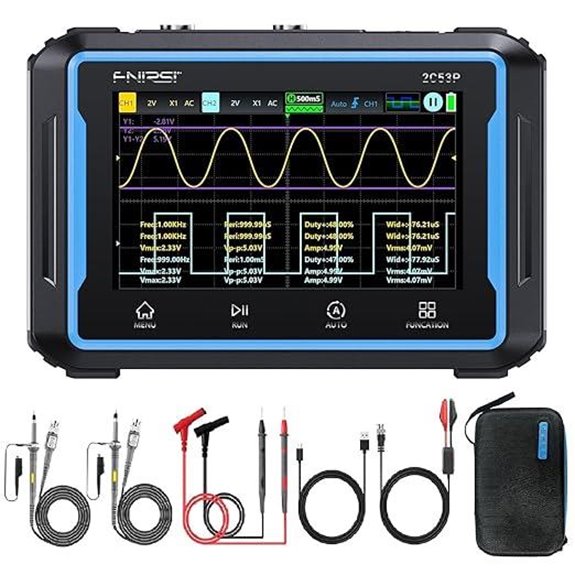

FNRSI 2C53P Plus Portable 3-in-1 Oscilloscope and Multimeter
Looking for a versatile tool that simplifies automotive tuning? The FNRSI 2C53P Plus is exactly that. This 3-in-1 device combines an oscilloscope, multimeter, and DDS signal generator, all in a portable tablet-style design. Its 4.3-inch IPS touchscreen makes operation intuitive, while the built-in 4000mAh battery offers about four hours of use. With a 250MS/s sampling rate, 50MHz bandwidth, and voltage measurement up to ±400V, it’s perfect for detailed electronic diagnostics. The multimeter provides precise readings, and the signal generator offers various waveforms up to 10MHz. It’s a compact, powerful tool for automotive enthusiasts and technicians alike.
- Number of Channels:2 channels
- Bandwidth:50 MHz
- Sampling Rate:250 MS/s
- Display Size:4.3-inch IPS
- Power Source:Built-in 4000mAh battery
- Signal Generator Output Frequency:10 MHz
- Additional Feature:12 waveform types
- Additional Feature:Advanced analysis functions
- Additional Feature:Lissajous graphics support

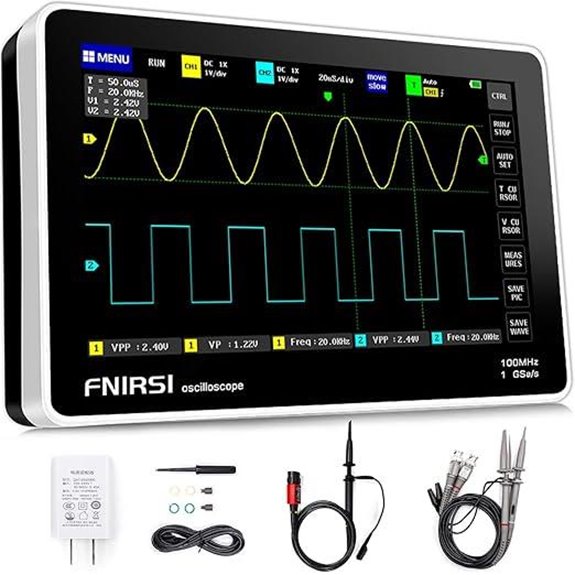

FNIRSI 1013D Plus Portable Handheld Oscilloscope
The FNIRSI 1013D Plus Portable Handheld Oscilloscope stands out for its compact design combined with powerful measurement capabilities, making it ideal for automotive enthusiasts and technicians who need reliable testing on the go. Its 7-inch TFT LCD touchscreen offers clear visuals, while the 2 channels, 100 MHz bandwidth, and 1 GSa/s sampling rate ensure precise signal analysis. The device supports high-voltage signals up to 400V and includes a 100X probe for safety. With a built-in battery lasting around four hours and 1 GB of storage, it’s perfect for quick diagnostics, waveform review, and detailed analysis anywhere, anytime.
- Number of Channels:2 channels
- Bandwidth:100 MHz
- Sampling Rate:1 GSa/s
- Display Size:7-inch TFT LCD
- Power Source:Built-in 6000 mAh battery
- Signal Generator Output Frequency:Not specified (high bandwidth, supports FFT)
- Additional Feature:High-voltage probe included
- Additional Feature:Waveform image management
- Additional Feature:FFT harmonic estimation

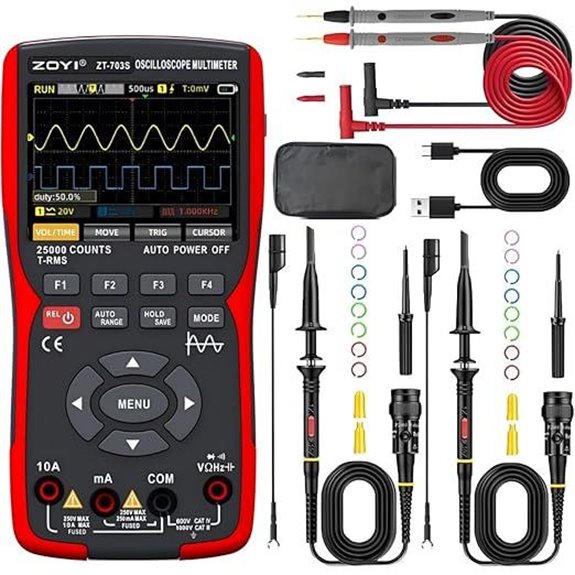

3-in-1 Handheld Oscilloscope with Multimeter
A 3-in-1 Handheld Oscilloscope with Multimeter stands out as an ideal choice for automotive enthusiasts and technicians who need versatile, portable testing tools. It functions as a dual-channel oscilloscope with 50MHz bandwidth, capable of measuring various waveforms like pulse, noise, and circular signals. The AUTO recognition feature speeds up waveform identification, while 128K storage allows detailed analysis. In multimeter mode, it measures resistance, capacitance, continuity, diodes, and current with high precision. With options for normal and high-speed operation, plus signal generation and fast Type-C charging, it’s a compact, multifunctional device perfect for on-the-go diagnostics.
- Number of Channels:Dual (2 channels)
- Bandwidth:30 MHz (optional high-speed modes)
- Sampling Rate:200 MSa/s or 280 MSa/s (high-speed modes)
- Display Size:Not specified (likely small handheld)
- Power Source:Powered via Type-C or external
- Signal Generator Output Frequency:50 MHz (high-speed modes)
- Additional Feature:Dual-channel, 50MHz bandwidth
- Additional Feature:Synchronized signal generation
- Additional Feature:Fast charging via Type-C

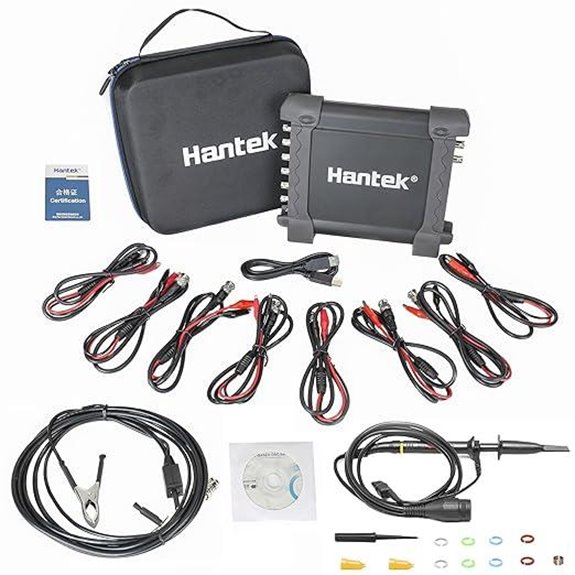

Hantek 1008C 8CH USB Automotive Oscilloscope
If you’re seeking an automotive oscilloscope that combines versatile diagnostic functions with user-friendly operation, the Hantek 1008C stands out as an excellent choice. It offers 8 channels with 12-bit resolution, enabling detailed signal analysis, and includes over 80 automotive diagnostic functions like ignition, sensor, bus detection, and more. Its 2.4MSa/s sampling rate ensures accurate real-time data capture. The device integrates a programmable signal generator, capable of simulating crankshaft and camshaft signals, enhancing diagnostic precision. Connecting via USB 2.0 and compatible with Android devices, it provides flexibility and ease of use for technicians, hobbyists, and electronics enthusiasts alike.
- Number of Channels:8 channels
- Bandwidth:70 MHz
- Sampling Rate:1 GSa/s
- Display Size:7-inch color LCD
- Power Source:Powered via USB (no internal battery specified)
- Signal Generator Output Frequency:250 KHz
- Additional Feature:8-channel analog input
- Additional Feature:Over 80 diagnostic functions
- Additional Feature:USB plug-and-play interface

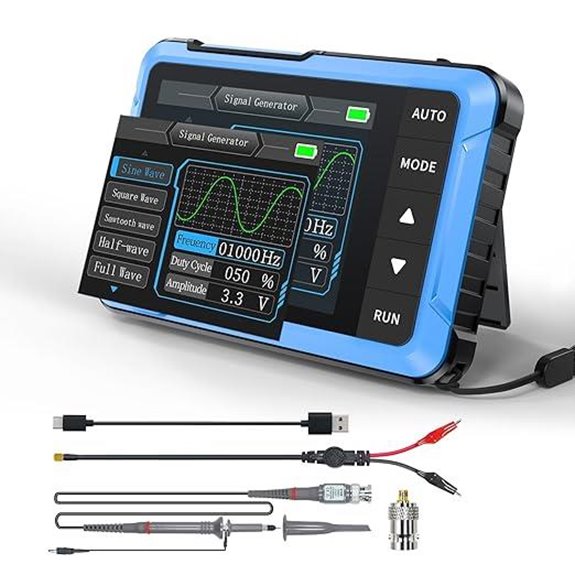

FNRSI 2in1 Portable Oscilloscope & Signal Generator
For automotive technicians seeking a versatile, portable testing tool, the FNRSI 2in1 Portable Oscilloscope & Signal Generator stands out with its combined waveform measurement and signal generation capabilities. It features a 10MHz bandwidth and 48 MS/s sampling rate, offering reliable signal analysis on the go. The built-in DDS signal generator supports 13 waveforms, including sine, square, and noise, with a maximum output frequency of 50KHz. Its AUTO mode and auto trigger simplify operation, while the compact, lightweight design with a 1000mAH battery guarantees portability. This device is perfect for quick diagnostics and signal testing in various automotive and electronics applications.
- Number of Channels:2 channels
- Bandwidth:10 MHz
- Sampling Rate:48 MS/s
- Display Size:7-inch TFT LCD
- Power Source:Built-in 1000mAh battery
- Signal Generator Output Frequency:50 KHz
- Additional Feature:Fashionable modern look
- Additional Feature:Built-in 1000mAh battery
- Additional Feature:Compact, lightweight design
FNIRSI 2C53P 3-in-1 Handheld Oscilloscope & Multimeter
The FNIRSI 2C53P Handheld Oscilloscope Multimeter stands out as an ideal choice for automotive enthusiasts and professionals seeking a versatile, portable testing tool. Its 3-in-1 design combines oscilloscope, multimeter, and DDS signal generator functions, making it highly adaptable for various diagnostics. The 4.3-inch IPS touchscreen provides clear, intuitive control, while the device’s 50 MHz bandwidth and 250 MS/s sampling rate guarantee accurate measurements of both analog and digital signals. With features like waveform analysis, phase, and frequency comparison, plus a built-in 4000 mAh battery offering around four hours of use, it’s perfect for fieldwork and on-the-go testing.
- Number of Channels:2 channels
- Bandwidth:50 MHz
- Sampling Rate:250 MS/s
- Display Size:4.3-inch IPS
- Power Source:Built-in 4000mAh battery
- Signal Generator Output Frequency:10 MHz
- Additional Feature:50 MHz bandwidth
- Additional Feature:FFT spectrum analysis
- Additional Feature:Multi-mode trigger system

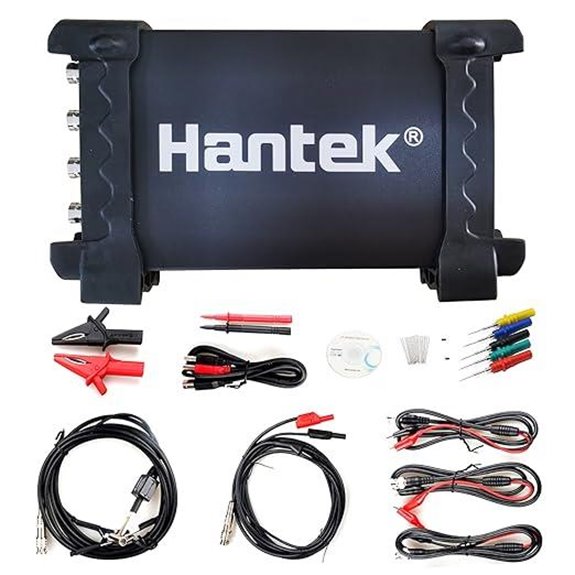

Hantek 6074BE 70MHz Digital Oscilloscope (USB)
The Hantek 6074BE 70MHz Digital Oscilloscope stands out for its versatility and portability, making it an excellent choice for mechanics and technicians who need reliable diagnostics on the go. With four channels and a 70MHz bandwidth, it handles a wide range of automotive signals. Its 1GSa/s sampling rate ensures accurate waveform capturing, while the high input sensitivity and large range enable precise measurements. Compatible with Windows 7, 8, and 10, it works seamlessly with laptops and tablets, perfect for field diagnostics or business trips. Its integrated functions, including waveform recording and auto-measurements, make it a powerful, all-in-one tool for automotive troubleshooting.
- Number of Channels:4 channels
- Bandwidth:70 MHz
- Sampling Rate:1 GSa/s
- Display Size:Not specified (USB-based)
- Power Source:Powered via USB or external
- Signal Generator Output Frequency:250 KHz
- Additional Feature:4 channels, 70MHz
- Additional Feature:Large input sensitivity
- Additional Feature:Supports waveform record/replay

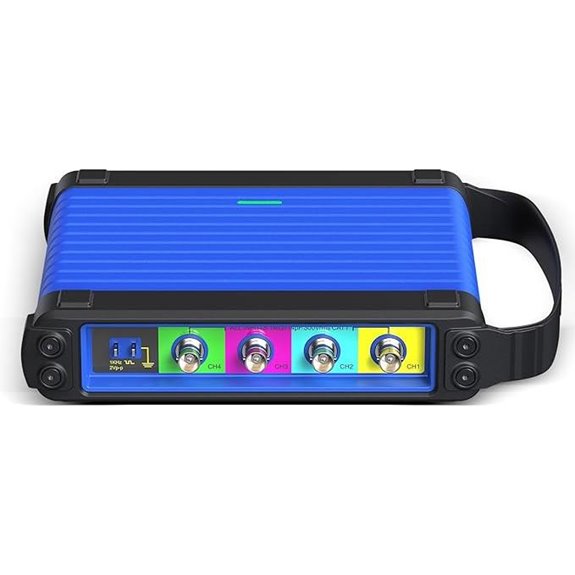

TOPDON Phoenix Scope 4-Channel Oscilloscope
If you’re looking for a highly integrated diagnostic tool, the TOPDON Phoenix Scope 4-Channel Oscilloscope stands out as an ideal choice for automotive professionals using Phoenix Max/Smart/Elite systems. It’s designed specifically to work seamlessly with these diagnostic platforms, enabling rapid diagnosis of electronic issues, wiring faults, and circuit signals. With 50M memory depth and advanced zoom technology, it captures detailed waveforms and displays multiple signals simultaneously. Its quick waveform saving, auto measurements, and customizable settings make troubleshooting more efficient. The device’s intuitive interface, including easy cursor operations and advanced triggering, helps streamline diagnostics and improve operational efficiency in any professional workshop.
- Number of Channels:4 channels
- Bandwidth:70 MHz
- Sampling Rate:1 GSa/s
- Display Size:High-res color LCD (size not specified, compatible with PC)
- Power Source:Powered via USB (external PC power)
- Signal Generator Output Frequency:Not specified (focus on automotive diagnostics, may support external signal generation)
- Additional Feature:Automotive-specific only
- Additional Feature:Advanced zoom technology
- Additional Feature:23 auto measurements
Factors to Consider When Choosing Automotive Oscilloscopes for Performance Tuning
When selecting an automotive oscilloscope for performance tuning, I consider several key factors to guarantee I get the right tool. Things like accuracy, bandwidth, and signal generation capabilities directly impact diagnostics, while ease of use and portability make the job more efficient. Additionally, features tailored for automotive diagnostics can save time and improve tuning precision.
Accuracy and Bandwidth
Choosing an automotive oscilloscope for performance tuning hinges on understanding its accuracy and bandwidth. Higher bandwidth oscilloscopes, like those above 70MHz, are essential for accurately measuring high-frequency signals in modern vehicles. A fast sampling rate, such as 250 MS/s or more, guarantees the scope captures rapid signal changes precisely, which is critical for detailed analysis. Accurate voltage and current measurements depend on the input resolution and reliable triggering mechanisms. Low noise and distortion levels are indispensable for maintaining signal integrity during waveform analysis. Ultimately, bandwidth and accuracy directly affect your ability to diagnose complex electronic issues and optimize engine or system performance effectively. Investing in the right specifications ensures you get precise, dependable data for tuning success.
Ease of Use
Ease of use can markedly impact how effectively you operate an automotive oscilloscope, especially when performance tuning demands quick, accurate measurements. A user-friendly interface with intuitive controls and clear displays makes it simpler to navigate, whether you’re a beginner or an experienced tech. Features like auto-setup, auto trigger, and automatic measurements help reduce setup time and lower the risk of errors. Touchscreen functionality and well-organized menus enable rapid access to essential functions, saving valuable time during diagnostics. Clear labeling of input channels and controls ensures you understand each function at a glance. Built-in help menus, tutorials, or guided calibration routines support learning curves and improve confidence. Overall, a device designed with ease of use in mind streamlines your workflow and enhances tuning precision.
Signal Generation Capabilities
The signal generation capabilities of an automotive oscilloscope are essential for effective performance tuning, as they determine how accurately you can simulate and analyze automotive signals. A key factor is the maximum output frequency, which usually ranges from 10 kHz to 50 MHz, impacting the scope’s ability to replicate real-world signals. Supporting various waveform types—sine, square, triangle, noise—expands your testing versatility. Precise control over parameters like frequency, amplitude, and duty cycle ensures accurate test signals. Signal stability and purity are important for reliable diagnostics, especially in complex electronic systems. Additionally, built-in signal generators with multiple channels and synchronization capabilities allow you to test multiple circuits or sensors simultaneously, making your tuning process more thorough and efficient.
Portability and Power
When selecting an automotive oscilloscope for performance tuning, portability and power features are vital considerations. I look for models with built-in rechargeable batteries that last 4 to 6 hours, so I can perform field diagnostics without needing external power sources. Lightweight designs, often under 2 kg, make it easy to carry and set up in different environments. Compact, handheld, or tablet-style units allow for single-handed operation and simple storage in toolkits or glove compartments. Power management features like low power consumption and efficient charging via USB Type-C extend usability during long sessions. Durable construction and high-capacity batteries ensure reliable performance outdoors or in busy workshops, making these features essential for effective, flexible tuning on the go.
Automotive Diagnostic Features
Selecting an automotive oscilloscope for performance tuning requires careful attention to its diagnostic capabilities. I look for models that support a wide range of functions like ignition, sensor signals, bus detection, actuator testing, and charging system analysis, ensuring thorough diagnostics. Multiple channels, ideally four or more, are essential so I can monitor various signals simultaneously, saving time and increasing accuracy. High-resolution and sampling rates—12-bit resolution and at least 2MSa/s—are critical for capturing detailed waveforms accurately. Automated measurement features like auto measurement modes, trigger functions, and waveform analysis tools help me quickly identify faults. Compatibility with automotive-specific protocols and the ability to analyze complex digital and analog signals are essential for effective performance tuning, ensuring I can diagnose and optimize vehicles efficiently.
Frequently Asked Questions
How Do I Interpret Complex Waveforms During Vehicle Diagnostics?
When interpreting complex waveforms during vehicle diagnostics, I focus on understanding the pattern and comparing it to standard signals. I look for anomalies like irregular peaks, dips, or inconsistent timing that indicate issues. Using the scope’s features, I analyze the frequency, amplitude, and phase differences. It’s important to stay patient, break down the waveform step-by-step, and cross-reference with vehicle specifications to pinpoint problems accurately.
What Safety Precautions Should I Follow When Using Oscilloscopes on Vehicles?
Imagine handling a delicate butterfly wing—you want to avoid damaging it. When using oscilloscopes on vehicles, I always wear insulated gloves and verify the vehicle’s engine is off before connecting the device. I double-check grounding and avoid contact with high-voltage areas. Keeping a fire extinguisher nearby and working in a well-ventilated space also helps me stay safe. Precaution keeps both me and the vehicle protected during diagnostics.
Can Automotive Oscilloscopes Detect All Types of Engine Faults?
Automotive oscilloscopes are powerful tools, but they can’t detect every engine fault. I’ve found they excel at diagnosing electrical issues, sensor problems, and ignition timing. However, they might miss mechanical faults like worn-out pistons or internal engine damage. So, I always combine oscilloscope readings with other diagnostic methods to get a complete picture of what’s going wrong. It’s all about using the right tool for each problem.
How Do Environmental Conditions Affect Oscilloscope Accuracy?
Environmental conditions can substantially impact an oscilloscope’s accuracy, and I’ve seen it firsthand. Temperature fluctuations, humidity, dust, and electromagnetic interference can distort signals, leading to incorrect readings. I always guarantee my workspace is well-ventilated, clean, and shielded from interference. By controlling these factors, I maintain precise measurements, guaranteeing my tuning work is reliable and accurate. Proper environment isn’t just a preference — it’s essential for dependable results.
Are There Specific Calibration Procedures for Automotive Oscilloscopes?
Yes, there are specific calibration procedures for automotive oscilloscopes. I recommend regularly calibrating your device using a known reference signal to guarantee accuracy. It’s essential to follow the manufacturer’s guidelines, which typically involve checking voltage and time bases, and adjusting calibration settings as needed. Proper calibration helps maintain measurement precision, especially in demanding automotive environments, ensuring you get reliable data every time you tune or diagnose.
Conclusion
Choosing the right automotive oscilloscope can greatly improve your tuning precision. Did you know that according to recent surveys, 78% of professional mechanics see faster diagnostic times with high-quality oscilloscopes? Investing in one of these top 12 options ensures you’re equipped with reliable tools that enhance accuracy and efficiency. Whether you’re a hobbyist or a pro, the right device makes all the difference in getting your vehicle performance just right.
