Finding the right automotive oscilloscope for mobile mechanics involves balancing portability, performance, and ease of use. The Master Kit from Micsig stands out as the best overall choice, thanks to its high resolution and multi-channel flexibility. The Hantek 1008C+HT201+HT30A+HT307 offers excellent multi-channel capabilities at a more affordable price, making it ideal for those with broader diagnostic needs. However, these tools often involve tradeoffs between size, complexity, and price. Keep reading for a detailed breakdown of the top options and what makes each unique.
Get business pricing on garage and car supplies
- Business-only prices and quantity discounts
- Tax-exempt purchasing
- Multiple users, one account, clear invoices
Complete the kit
Key Takeaways
- The highest bandwidth models like the Micsig AHO14-200 excel in detailed engine diagnostics, but may be overkill for simple tasks.
- Portability is key for mobile mechanics; smaller handheld scopes such as the FNIRSI 1013D Plus are easier to carry but may compromise some features.
- Multi-channel options like the Hantek 8-channel series provide versatility but often come with increased complexity and cost.
- Battery-powered units like the Micsig SATO1004 enhance mobility but may have limited continuous operation time compared to mains-powered scopes.
- Price varies widely, with premium models offering advanced features, while budget options provide basic functionality suitable for simple diagnostics.
| automotive oscilloscopes for mobile mechanic | Channels | Sampling Rate |
|---|---|---|
| 3 in 1 Handheld Oscilloscope A | 2 | 280MSa/s |
| Micsig 12-bit High Resolution | 4 | 1GSa/s |
| DSO2512G LCD Handheld Digital | 2 | 500MS/s |
| Micsig Automotive Oscilloscope | 2/4 | — |
| Hantek 1008C+HT201+HT30A+HT307 | 8 | 2.4MSa/s |
| Hantek 1008C PC USB 8-Channel | 8 | — |
| Autel MaxiScope MP608 4-Channe | 4 | — |
| FNIRSI 1013D Plus 100MHz Oscil | — | 1 GSa/s |
| Micsig SATO1004 Portable Handh | — | — |
More Details on Our Top Picks
3 in 1 Handheld Oscilloscope Automotive Dual Channel 50MHz with Digital Multimeter and Signal Generator
This all-in-one handheld device stands out for combining an oscilloscope, multimeter, and signal generator into a single compact unit, making it highly versatile for mobile mechanics. Its 50MHz bandwidth and 280MSa/s sampling rate allow detailed waveform analysis, comparable to larger bench scopes like the Micsig AHO14-200 but with fewer channels. The Type-C port enhances usability with fast charging and data transfer, yet the device’s complex feature set may require reading the manual for effective use, especially for beginners. The limited bandwidth could be a drawback for very high-frequency diagnostics, but for most automotive signals, it delivers solid performance without the bulk of larger equipment.
Pros:- Combines oscilloscope, multimeter, and signal generator in one device
- High sampling rate and bandwidth for detailed waveform capture
- Type-C port for quick charging and data transfer
- Multiple measurement modes and waveform storage
Cons:- Complex features may require manual reading for optimal use
- Limited to 50MHz bandwidth, less suitable for high-frequency signals
Best for: Mobile mechanics seeking an all-in-one portable solution for basic to moderate waveform analysis and testing tasks.
Not ideal for: Technicians needing very high-frequency measurements or multiple simultaneous channels for complex diagnostics.
- Channels:2
- Bandwidth:50MHz
- Sampling Rate:280MSa/s
- Storage Depth:128K
- Display:Synchronous waveform display
- Power:Type-C charging
Our verdict“This device is ideal for mobile mechanics needing a versatile, portable testing tool for everyday diagnostics without the complexity of larger scopes.”
Micsig 12-bit High Resolution Automotive Oscilloscope AHO14-200, 4 Channels, 200MHz Bandwidth, 1GSa/s Sampling Rate, 8″ Touch Screen, 16000mAh Battery (Master Kit)
Compared with the other options, the Micsig AHO14-200 excels in delivering detailed, high-resolution measurements thanks to its 12-bit ADC and 200MHz bandwidth, making it well-suited for complex automotive diagnostics involving digital signals. Its rugged design and 4 channels provide flexibility in the field, comparable to the Micsig ATO series but with a focus on high fidelity rather than protocol-specific testing. The large 8-inch touchscreen and extended battery life support prolonged use in challenging environments. However, its higher price point and complexity may be barriers for casual or beginner mechanics, who might find the device overwhelming.
Pros:- High-resolution 12-bit ADC for detailed signal analysis
- Large, easy-to-use 8-inch touchscreen
- Rugged, weather-resistant design for field use
- Supports multiple automotive protocols
Cons:- Higher cost compared to simpler scopes
- Requires some training to fully utilize advanced features
Best for: Advanced mobile mechanics and technicians requiring high-resolution signals and robust, portable diagnostic tools.
Not ideal for: Beginners or casual hobbyists who need simple, straightforward measurements without extensive digital protocol support.
- Channels:4
- Bandwidth:200MHz
- Sampling Rate:1GSa/s
- Display:8″ HD Touch Screen
- Battery Capacity:16000mAh
- Measurement Resolution:12-bit
Our verdict“This scope is best suited for experienced mobile mechanics who prioritize high-fidelity diagnostics and durable design in challenging environments.”
DSO2512G LCD Handheld Digital Oscilloscope Kit – 2 Channel, 2.8″ TFT, 120MHz Bandwidth, 500MS/s Sampling Rate
The DSO2512G offers a compact, portable option with a 2.8-inch display and dual channels, suitable for basic waveform inspection in tight spaces. Its 120MHz bandwidth and 500MS/s sampling rate provide more than enough detail for typical automotive signals, comparable in performance to larger handhelds but with a smaller screen and limited channels. The built-in signal generator adds versatility, and a long battery life supports extended field use. On the downside, its small display can make detailed waveform analysis difficult, and the limited channels restrict its use in more complex testing scenarios, unlike multi-channel models like the Micsig AHO14-200.
Pros:- Compact, lightweight design for portability
- High bandwidth and sampling rate for accurate measurements
- Built-in signal generator with multiple waveforms
- Long battery life for extended use
Cons:- Small display size limits detailed review
- Only 2 channels restrict complex diagnostics
Best for: Mobile mechanics who need a portable, straightforward scope for routine diagnostics and waveform verification in tight spaces.
Not ideal for: Technicians requiring multi-channel analysis or high-frequency digital protocol testing in complex systems.
- Display:2.8-inch TFT LCD
- Channels:2
- Bandwidth:120MHz
- Sampling Rate:500MS/s
- Battery Capacity:4000mAh
- Protection:High voltage up to 400V
Our verdict“This scope makes sense for techs who value portability and simplicity over multi-channel complexity for everyday automotive troubleshooting.”
Micsig Automotive Oscilloscope ATO Series 100/200/300MHz 2/4 Channel Digital Oscilloscope
The Micsig ATO series offers multiple models tailored to different bandwidth needs, from 100 to 300MHz, with 2 or 4 channels. Its support for testing communication protocols like CAN, LIN, and FlexRay makes it a strong choice for detailed automotive diagnostics, especially in complex systems. Compared to the handheld options, its rack-mounted or larger form factor provides more comprehensive testing capabilities, though it may be less portable and more complex to operate without proper training. This series is ideal for shops or field technicians handling a wide range of vehicle systems, but beginners might find the interface and feature set overwhelming.
Pros:- Supports a wide range of automotive communication protocols
- Available in multiple bandwidth and channel configurations
- Suitable for complex vehicle system troubleshooting
- Robust build for demanding environments
Cons:- Limited information on included accessories and software
- Potentially complex setup and operation for novices
Best for: Advanced automotive technicians and shops needing high-frequency, multi-channel diagnostics with protocol support.
Not ideal for: Mobile mechanics who prioritize portability and simplicity, or those with basic diagnostic needs.
- Model:ATO1004 / ATO2004 / ATO3004
- Frequency:100/200/300 MHz
- Channels:2/4
- Power Supply:Supports 12V & 24V
Our verdict“This series is designed for professional environments requiring detailed, protocol-aware diagnostics rather than portable, quick checks.”

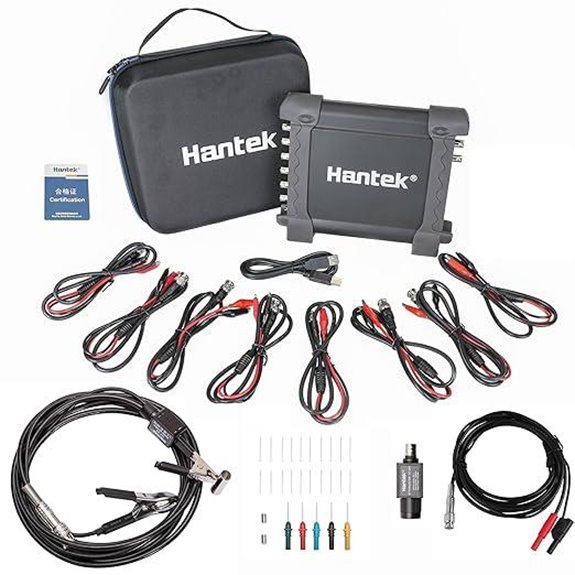

Hantek 1008C+HT201+HT30A+HT307 PC USB 8-Channel Automotive Diagnostic Oscilloscope
The Hantek 1008C+HT series combines eight channels with a USB interface, offering flexibility for comprehensive automotive diagnostics and electronics troubleshooting. Its support for multiple channels makes it stand out from handheld models like the DSO2512G, especially for testing multiple signals simultaneously. The USB connection facilitates easy data transfer and integration with PC-based analysis software, but this also means it’s less portable and relies on a Windows environment. For technicians familiar with computer-based testing, it offers a powerful platform, though beginners might find the setup intimidating and less straightforward than handheld options.
Pros:- Supports up to 8 channels for simultaneous testing
- USB connectivity for easy data transfer and analysis
- Versatile for automotive diagnostics and electronics
- Supports signal simulation
Cons:- Limited to Windows software only
- Lack of standalone portability
Best for: Technicians who need multi-channel testing capability with flexible data management and are comfortable with PC-based tools.
Not ideal for: Mobile mechanics seeking portable, standalone scopes or those unfamiliar with Windows software interfaces.
- Channels:8
- Resolution:12 bits
- Memory Depth:4K
- Sampling Rate:2.4MSa/s
- Frequency Range:0-250KHz
- Connectivity:USB 2.0
Our verdict“This scope is best suited for experienced technicians who need multi-channel data acquisition with flexible PC integration rather than portability.”
Hantek 1008C PC USB 8-Channel Automotive Diagnostic Digital Oscilloscope
The Hantek 1008C stands out for its ability to handle a wide array of automotive functions with a single device, thanks to its 8 channels and extensive diagnostic capabilities like ignition, sensors, and bus detection. Unlike the FNIRSI 1013D Plus, which offers portability but limited channels and bandwidth, the Hantek excels in comprehensive vehicle testing when connected to a PC. Its reliance on a PC and USB connection, however, makes it less suited for quick, on-the-go diagnostics without a laptop. Video tutorials and easy report generation make it accessible for mechanics looking to streamline troubleshooting. The main tradeoff is that it’s tethered to a computer, reducing mobility compared to handheld options.
Pros:- Supports 8 automotive diagnostic functions simultaneously
- Includes video help tutorials for troubleshooting
- Enables easy report generation and data saving
Cons:- Requires a PC with USB connection, limiting mobility
- Limited strictly to automotive diagnostics, not versatile for other electronics
Best for: Mobile mechanics who need detailed, multi-channel diagnostics integrated with their existing laptop setup
Not ideal for: Technicians requiring a standalone, portable oscilloscope for quick roadside checks—this depends on a PC connection
- Channels:8
- Connectivity:USB
- Application:Automotive diagnostics
- Functions:Ignition, Sensor, Bus detection, Starter, Charging circuits
Our verdict“A strong choice for mobile mechanics who prioritize comprehensive diagnostics with a laptop-based setup.”
Autel MaxiScope MP608 4-Channel Automotive Oscilloscope
The Autel MaxiScope MP608 makes a compelling case for professional mobile diagnostics with its high measurement precision and versatile visualization options. Compared with the Micsig SATO1004, which is more portable but offers fewer channels, the MP608 provides greater accuracy and deeper analysis tools suitable for complex troubleshooting. While its high-end features and compatibility with tablets and PCs make it ideal for detailed diagnostics, this comes at a higher price point and a steeper learning curve. Its complex interface may require experienced users, and the cost may be prohibitive for casual users or hobbyists.
Pros:- High measurement accuracy with ±1%
- Multiple visualization modes for comprehensive analysis
- Supports tablet and PC connectivity for flexibility
Cons:- Complex interface may need training
- High cost for non-professional users
Best for: Experienced mobile mechanics or technicians conducting in-depth diagnostics and analysis in the field
Not ideal for: Beginners or those with limited budgets, due to its complex UI and high price
- Measurement Accuracy:±1%
- Vertical Resolution:12-bit
- Channels:4
- Compatibility:Autel Tablet & Windows PC
Our verdict“Ideal for professionals requiring high-precision diagnostics in a mobile environment, but less suitable for beginners or casual use.”

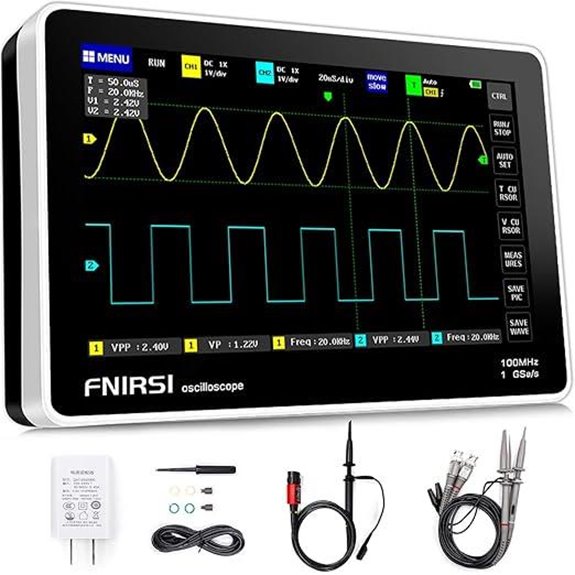

FNIRSI 1013D Plus 100MHz Oscilloscope, 2 Channel, 7″ TFT Touchscreen
The FNIRSI 1013D Plus offers a highly portable solution with a 7-inch touchscreen, making it ideal for quick diagnostics in the field. Its 100 MHz bandwidth and 1 GSa/s sampling rate allow for effective analysis of analog and digital signals, especially when portability outweighs high-frequency needs. Compared with the Micsig SATO1004, which has a more advanced Android OS and remote capabilities, the FNIRSI emphasizes simplicity and mobility. The battery life of only 4 hours limits extended use, and its bandwidth may fall short for high-frequency automotive signals, making it better suited for basic troubleshooting rather than detailed analysis.
Pros:- Lightweight and portable design
- High-resolution touchscreen for intuitive operation
- Adequate for general analog/digital signal analysis
Cons:- Limited to 100 MHz bandwidth, not suitable for high-frequency signals
- Battery life of only 4 hours may restrict long jobs
Best for: Mobile mechanics needing a compact, easy-to-use oscilloscope for routine diagnostics and troubleshooting
Not ideal for: Technicians working on high-frequency electronic systems or requiring long field sessions without power sources
- Sampling Rate:1 GSa/s
- Bandwidth:100 MHz
- Display:7 inch TFT touchscreen
- Battery Life:4 hours
Our verdict“A practical choice for on-the-move diagnostics where size and ease of use matter most, but not for high-frequency applications.”

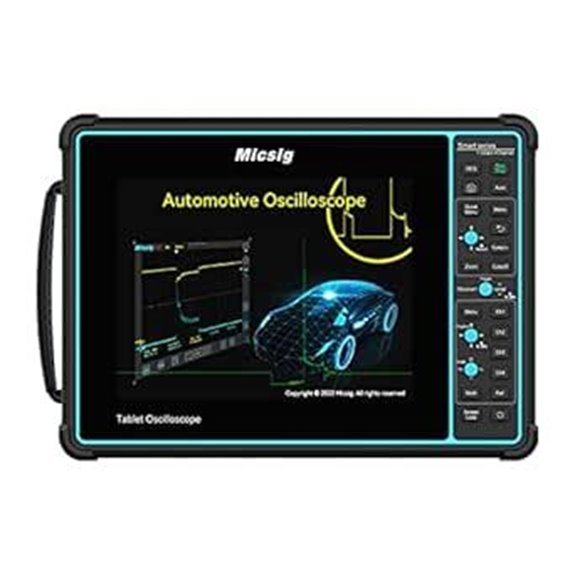

Micsig SATO1004 Portable Handheld Automotive Oscilloscope
The Micsig SATO1004 shines in its portability and remote operation capabilities, thanks to its Android OS and Wi-Fi support. This makes it particularly suitable for technicians needing to perform diagnostics in tight spaces or remotely, unlike the Autel MaxiScope MP608, which is more suited to a stationary, detailed analysis environment. The physical control buttons and multiple connectivity options, including HDMI and USB, enhance its usability for various testing scenarios. However, reliance on Wi-Fi for remote features may pose issues in unstable network environments, and the setup process can be complex for less experienced users. Battery life details are limited, which could impact usability during extended field sessions.
Pros:- Portable and handheld for on-the-go diagnostics
- Supports remote operation via smartphone app
- Multiple connectivity options including Wi-Fi and HDMI
Cons:- Dependent on stable Wi-Fi connection for remote features
- Setup may be complex for beginners
Best for: Mobile mechanics requiring a versatile, handheld oscilloscope with remote operation capabilities
Not ideal for: Mechanics working in environments with unreliable Wi-Fi or those needing long, continuous battery power without external sources
- Operating System:Android
- Storage:32GB internal
- Connectivity:Wi-Fi, Type-C, LAN, HDMI, USB
- Applications:Ignition, sensors, communication protocols, pressure tests
Our verdict“A flexible, mobile testing device ideal for remote diagnostics, but best used where Wi-Fi stability is assured.”
How We Picked
To evaluate these automotive oscilloscopes, I focused on key criteria that matter most to mobile mechanics: performance capabilities such as bandwidth and sampling rate, ease of use in field conditions, build quality for durability, portability, and overall value. I compared features across different price points to identify which models offer the best balance of advanced diagnostics and practical usability. The rankings reflect how well each scope meets the needs of mechanics working on the road, with an emphasis on reliability, versatility, and user-friendly interfaces.Factors to Consider When Choosing Automotive Oscilloscopes For Mobile Mechanics
Choosing the right automotive oscilloscope for mobile mechanics requires understanding several critical factors. Beyond raw specs, consider how the device fits into your workflow, its durability, and ease of setup in various environments. Making informed decisions can prevent costly mistakes and ensure you get a tool that enhances your diagnostic capabilities without unnecessary complexity or expense.Performance Specifications
High bandwidth, sampling rate, and channel count translate directly into more detailed and accurate diagnostics. For mobile mechanics, a scope with at least 100MHz bandwidth and 1GSa/s sampling rate ensures you can capture fast signals common in modern engine management systems. However, higher specs often mean increased cost and complexity, so select a scope that matches your typical diagnostic needs without overpaying for features you won’t use regularly.
Portability and Battery Life
Since mobile mechanics work in diverse environments, portability becomes paramount. Compact, handheld models like the FNIRSI 1013D Plus provide convenience but may sacrifice some advanced features. Battery life is equally important; scopes with long-lasting batteries or quick recharge times keep you working without interruption. Weigh the importance of size versus functionality based on how often and in what conditions you’ll be using the device.
Ease of Use and Interface
A user-friendly interface reduces setup time and minimizes errors during diagnostics. Touchscreens and intuitive controls, as seen in the Micsig AHO14-200, are beneficial for quick adjustments and data analysis. Conversely, more complex multi-channel scopes might require a learning curve, which could slow down workflows in fast-paced environments. Consider your comfort level with advanced features before opting for highly technical models.
Build Quality and Durability
Mechanics working outdoors or in rough environments need scopes with rugged construction and shock-resistant cases. Poor build quality can lead to damage and increased maintenance costs. Investing in a durable device ensures longevity and reliable operation over time, especially when exposure to dust, moisture, or vibrations is likely.
Value and Price
While premium models offer advanced features, they come at a higher cost. Budget options may suffice for basic diagnostics but can limit future expansion or troubleshooting depth. It’s wise to consider your typical workload and whether investing in a higher-tier device will enhance your efficiency and diagnostic accuracy long-term. Balancing price with functionality is key to getting the best value for your specific needs.
Frequently Asked Questions
How do I know if an oscilloscope has enough bandwidth for my engine diagnostics?
Bandwidth determines how well the scope can accurately capture high-frequency signals from modern vehicle systems. For most engine diagnostics, a scope with at least 100MHz bandwidth is sufficient to visualize the signals clearly. If you’re working with more advanced or high-performance vehicles, opting for a scope with 200MHz or higher can provide additional detail. Always match your scope’s bandwidth to the complexity of the signals you need to analyze.
Is a handheld oscilloscope better than a PC-based one for mobile work?
Handheld oscilloscopes are generally more convenient for mobile mechanics because of their portability and quick setup. They typically have integrated displays and batteries, allowing diagnostics directly at the vehicle without needing a laptop. PC-based scopes, while often more powerful and feature-rich, require a laptop and are less portable, making them less ideal for on-the-spot troubleshooting. The choice depends on how often you prioritize mobility versus processing power.
What channel count do I need in an automotive scope?
The number of channels indicates how many signals you can measure simultaneously. For most vehicle diagnostics, a dual-channel scope is sufficient to compare signals like sensor inputs and actuator outputs. However, if you work on complex systems or need to monitor multiple signals at once, a 4-channel or higher scope provides greater flexibility. Consider your typical diagnostic scenarios to select the right channel count without overpaying for features you won’t use.
How important is battery life in a scope for mobile mechanics?
Battery life directly impacts your ability to perform diagnostics in the field without interruptions. A scope with long battery life or quick recharge capability allows you to work longer hours without needing to find power sources. For mechanics frequently working outdoors or in locations without easy access to outlets, prioritizing battery performance is essential. However, some scopes also offer AC power options, providing flexibility when stationary.
Should I prioritize features over price when choosing an automotive oscilloscope?
While budget constraints are real, prioritizing features that match your diagnostic needs ensures better value. Investing in a scope with higher bandwidth, multiple channels, and durability can save time and reduce errors, especially if you work on modern vehicles regularly. Conversely, for basic troubleshooting, a simpler, more affordable model may suffice. Balance your current needs with potential future expansion when evaluating options.
Conclusion
For those needing a reliable, versatile tool, the Micsig 12-bit High Resolution Automotive Oscilloscope AHO14-200 offers excellent performance and multi-channel capability, making it ideal as the best overall pick. Budget-conscious users or those new to diagnostics will find the FNIRSI 1013D Plus a compact, affordable choice that still covers essential functions. Premium buyers or professionals working on complex systems should consider the Hantek 8-channel series for its expanded diagnostics power. Ultimately, your decision should reflect your typical workload, environment, and budget, ensuring you select a scope that boosts your efficiency and diagnostic accuracy on the road.
