If you’re looking to upgrade your car repairs in 2026, I recommend exploring top automotive oscilloscope diagnostic kits like the Siglent SDS1204X, Hantek 1008C, and versatile kits that include probes and accessories. These tools offer high bandwidth, multiple channels, and user-friendly features for accurate diagnostics. Choosing the right kit depends on your vehicle type and diagnostic needs. Keep going, and you’ll find the essential details to make an informed choice.
Key Takeaways
- Top automotive oscilloscope models offer high bandwidth, fast sampling rates, and multiple channels for accurate vehicle diagnostics.
- Versatile kits support protocols like CAN, LIN, and FlexRay, ensuring compatibility with various vehicle systems.
- Advanced features like FFT, Bode plots, and automated testing improve diagnostic precision and efficiency.
- Portable, user-friendly designs with large displays enhance usability in field repairs and tight spaces.
- A wide range of accessories and compatibility options optimize troubleshooting across different car makes and electronic systems.
Siglent SDS1204X 200MHz 12-bit 4-Channel Oscilloscope
If you’re looking for a reliable oscilloscope to diagnose automotive electrical issues, the Siglent SDS1204X 200MHz 12-bit 4-channel model stands out. It offers a 200 MHz bandwidth, guaranteeing detailed waveform capture of high-frequency signals. With four analog channels and optional digital inputs, it provides extensive testing capabilities. Its 2 GSa/s sampling rate and 12-bit resolution deliver precise, high-resolution waveforms. The 100 Mpts memory depth allows for long, detailed recordings. The large 10.1-inch touchscreen makes control intuitive, while the high waveform capture rate ensures you won’t miss transient events. This scope is ideal for detailed, fast diagnostics.

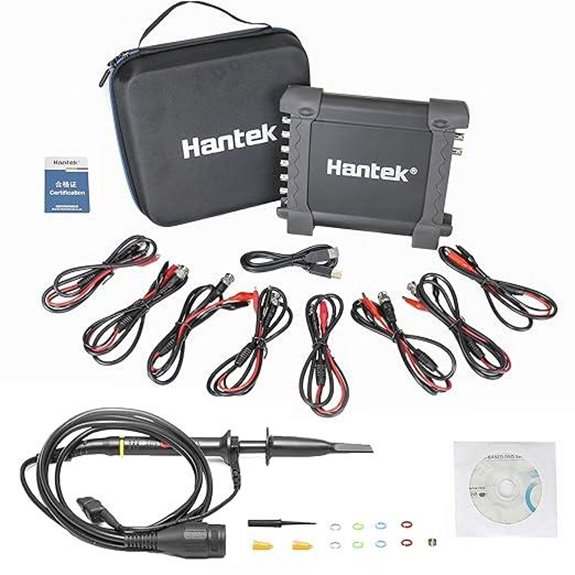

Hantek 1008C+HT201+HT30A+HT307 Automotive Oscilloscope
The Hantek 1008C+HT201+HT30A+HT307 automotive oscilloscope is an excellent choice for technicians and hobbyists who need a versatile, multi-channel diagnostic tool. It features 8 channels with 12-bit resolution, supporting over 80 automotive diagnostics, including sensors, ignition, and bus detection. Its USB 2.0 connection makes it compatible with Android devices, tablets, and PCs, streamlining signal transfer and control. The scope also includes a programmable 8-channel signal generator with up to 250 KHz frequency, ideal for simulating crankshaft or camshaft signals. Designed for ease of use, it’s perfect for troubleshooting and learning automotive electronics efficiently.
104PCS Automotive Circuit Test Leads Kit
Designed for professional automotive technicians and serious DIY enthusiasts, the PCS Automotive Circuit Test Leads Kit stands out with its extensive set of 104 high-quality components. It’s perfect for diagnosing, testing, and repairing complex automotive circuits, including electronic control systems, sensors, and actuators. The kit’s versatility allows it to work with most vehicles in Europe and the U.S., as well as other electronic systems like home appliances and industrial equipment. With durable rubber insulation, high-temperature resistance, and a portable case, this kit makes on-the-go diagnostics foolproof. It’s a reliable tool to enhance your repair capabilities and ensure accurate, efficient testing every time.
Hantek 4CH Automotive Oscilloscope Kit DSO3064
The Hantek 4CH Automotive Oscilloscope Kit DSO3064 stands out as an ideal choice for professional automotive technicians and engineers who need precise, real-time diagnostics. It offers a 60MHz bandwidth, 200MS/s sampling rate, and a flexible memory depth, making it suitable for detailed vehicle analysis. With four channels, an intuitive interface, and features like FFT spectrum analysis and automatic measurement functions, it simplifies complex diagnostics. Its compatibility across Windows platforms and optional LAN connectivity provide versatile integration. Designed for ease of use and durability, this scope is perfect for diagnosing engine, sensor, and bus issues, ensuring your repairs are accurate and efficient.

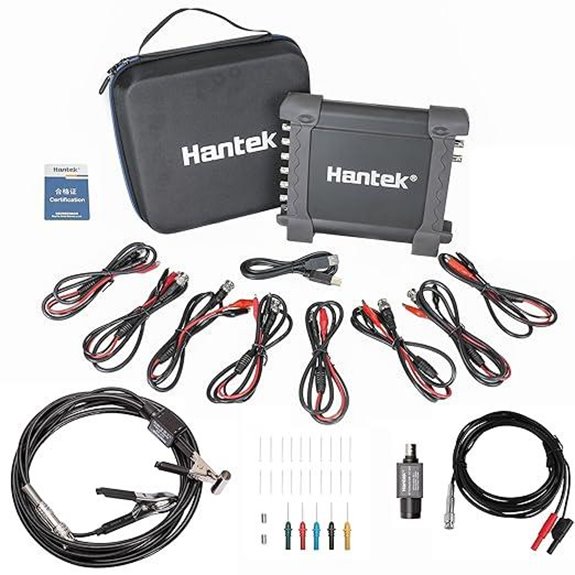

Hantek 1008C+HT201+HT30A+HT307 Automotive Oscilloscope
If you’re an automotive professional or enthusiast seeking a versatile diagnostic tool, the Hantek 1008C+HT201+HT30A+HT307 Automotive Oscilloscope stands out with its 8-channel design and extensive capabilities. It connects via USB 2.0, compatible with Android devices, tablets, smartphones, and PCs, making it highly flexible. With over 80 diagnostic functions, including ignition, sensors, and bus detection, it covers most automotive troubleshooting needs. The scope features 12-bit resolution, 4K memory, and a 2.4 MSa/s sampling rate. Its programmable 8-channel signal generator with up to 250 KHz frequency enhances testing, making it a powerful tool for professionals and hobbyists alike.

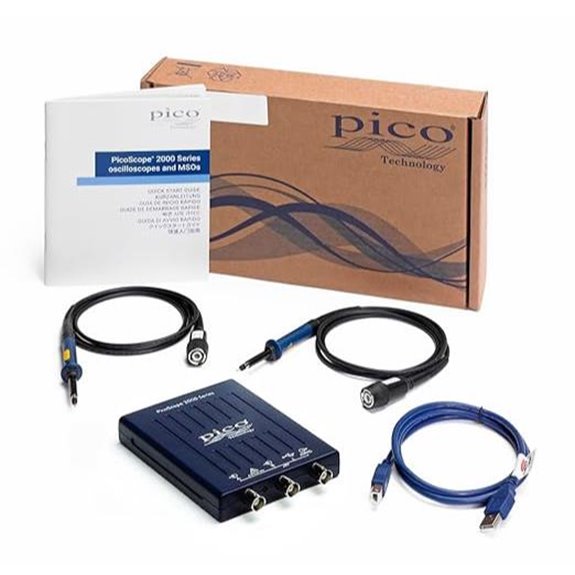

PicoScope 2204A Oscilloscope 2-Channel Portable Lab Kit
For automotive technicians seeking a portable yet capable oscilloscope, the PicoScope 2204A stands out with its dual-channel design and versatile functionality. This handheld USB device fits easily into a laptop bag and supports USB 2.0, 3.0, and 3.1 connections, compatible with Windows, Linux, and Mac. It offers a 10 MHz bandwidth, 100 MS/s sampling rate, and up to 12 bits of vertical resolution, ensuring detailed signal analysis. Beyond oscilloscopes, it functions as a spectrum analyzer, function generator, and protocol decoder for over 30 serial protocols. Powered by PicoScope 7 software, it provides advanced analysis tools, continuous updates, and lifetime support, making it a reliable diagnostic tool.

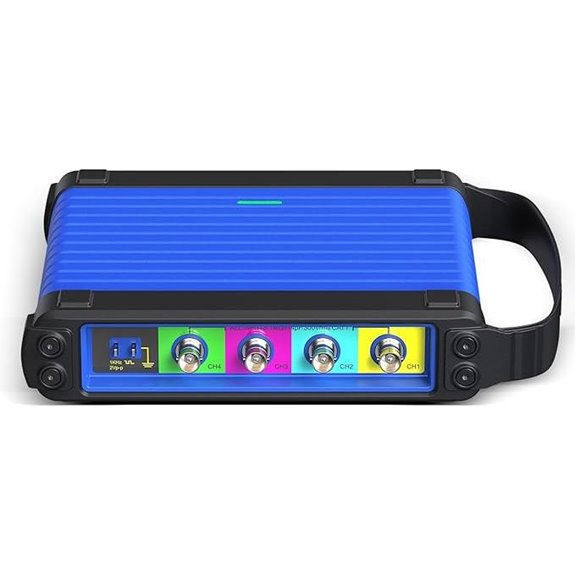

TOPDON Phoenix Scope 4-Channel Oscilloscope
Looking for an automotive oscilloscope that seamlessly integrates with your diagnostic tools? The TOPDON Phoenix Scope 4-Channel Oscilloscope is designed to work exclusively with Phoenix Max, Smart, and Elite diagnostic tools, ensuring smooth operation. It captures and displays circuit signals with advanced waveform analysis, supporting recording, saving, and playback. Its 50M memory depth, zoom tech, and FFT analysis provide detailed insights. The device’s intuitive interface, with a soft keyboard and customizable settings, boosts efficiency. With powerful triggering options and support for various automotive tests, the Phoenix Scope makes diagnosing complex electronic systems faster and more accurate. It’s a reliable tool for professional troubleshooting.

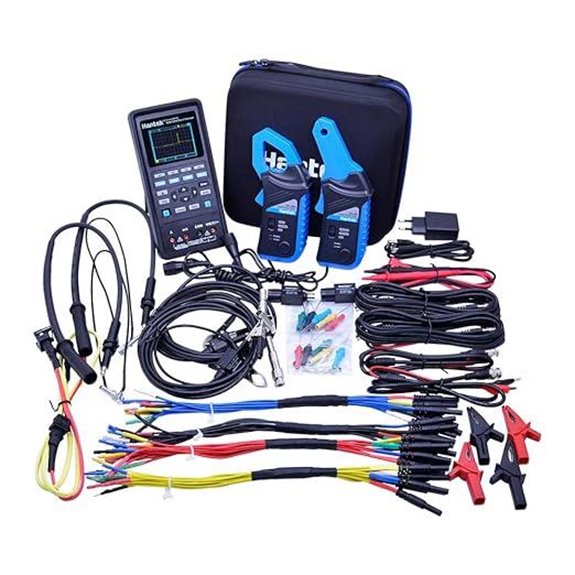

Hantek 4-in-1 Automotive USB Oscilloscope Kit
The Hantek 4-in-1 Automotive USB Oscilloscope Kit stands out as an all-in-one solution for automotive technicians and DIY enthusiasts who need versatile diagnostic tools. It combines four functions: diagnostics, oscilloscope, signal source, and multimeter, all in a compact, lightweight design. The high-definition color LCD offers clear visuals, while the adjustable suspending stand ensures ergonomic use. With up to two months of standby time and a quick 2-hour charge, it’s reliable for extended work. Its 80MHz bandwidth and dual channels deliver accurate signal measurement, making it a flexible, user-friendly device that simplifies complex diagnostics on the go.
Siglent Technologies SDS804X HD 70 MHz 12-bit Digital oscilloscopes 4CH
If you’re serious about diagnosing complex automotive signals, the Siglent Technologies SDS804X HD offers impressive 70 MHz bandwidth and 12-bit resolution that make detailed analysis possible. Its four channels and high sampling rate of up to 2 GSa/s ensure accurate capture of transient signals. The device’s 50 Mpts/ch memory depth allows for extensive waveform storage, while the 7-inch TFT-LCD display provides clear visualization. With advanced analysis features like FFT, Bode plots, and power analysis, it’s perfect for troubleshooting intricate electronic issues in vehicles. Overall, this scope combines high performance with versatile data processing, making it a valuable tool for any professional car technician.
3-in-1 Handheld Oscilloscope with Multimeter
This 3-in-1 handheld oscilloscope with a multimeter is ideal for automotive technicians who need versatile, portable testing tools. It combines dual-channel oscilloscope functionality with a high-precision multimeter, measuring resistance, capacitance, continuity, diodes, and current. With modes like AUTO for waveform recognition and storage of up to 128K, it streamlines diagnosis and analysis. The device offers normal and high-speed modes, adapting to various measurement needs with sampling rates up to 280MSa/s and 50MHz bandwidth. Its waveform generator and display features expand its capabilities, while the Type-C port ensures fast charging and data transfer, making it a complete, on-the-go diagnostic solution.
Hantek 1008B 8-Channel Automotive Oscilloscope
For automotive technicians seeking a versatile and all-encompassing diagnostic tool, the Hantek 1008B 8-Channel Automotive Oscilloscope stands out as an excellent choice. It’s USB-based and supports vehicle testing with over 80 diagnostic functions, including ignition, sensors, and bus detection. Its ability to simulate camshaft and crankshaft signals helps pinpoint complex issues quickly. I appreciate its long-term waveform recording, which simplifies data analysis and documentation. Plus, the video help features make operation straightforward, even for less experienced technicians. Overall, this scope enhances troubleshooting efficiency, offering extensive diagnostics in a compact, user-friendly package.
4CH Automotive Oscilloscope Kit for Car Diagnostics
The CH Automotive Oscilloscope Kit is an ideal choice for professional technicians and engineers who need precise, thorough vehicle diagnostics. With four channels, a 60MHz bandwidth, and a 200MS/s sampling rate, it handles complex signals like ignition, sensors, and CAN bus data effectively. Its industrial-grade design and Windows compatibility make it easy to operate and integrate into existing workflows. The kit offers advanced features like automatic testing, PASS/FAIL checks, and spectrum analysis, enabling quick troubleshooting of cranking, charging, and exhaust systems. Whether for engineering or professional repair, this oscilloscope provides extensive diagnostics to improve accuracy and efficiency.
Hantek HT307 Back Probe Pin Set (5 Colors)
If you’re working with delicate automotive connectors or small wires, the Hantek HT307 Back Probe Pin Set is an essential tool. These five colorful back probe pins are designed to help you make precise measurements without damaging sensitive components. The sharp tips easily pierce connector seals or wire insulation, allowing safe probing of small gauge wires or circuit boards. Plus, the tips are repairable and replaceable, saving you money over time. With included screws and replacement needles, this set offers versatility for various diagnostics. Its durable design and color coding make complex testing smoother, ensuring accurate data collection without risking damage to your vehicle’s electrical system.
Factors to Consider When Choosing Automotive Oscilloscope Diagnostic Kits
When selecting an automotive oscilloscope diagnostic kit, I consider key factors like vehicle compatibility, bandwidth, and sampling rate to guarantee accurate readings. I also evaluate the number of channels, diagnostic features, and how easy the device is to use and carry around. These points help me choose a kit that fits my specific needs and makes troubleshooting more efficient.
Compatibility With Vehicles
Choosing the right automotive oscilloscope diagnostic kit requires guaranteeing it’s compatible with your vehicle’s specific electrical systems and connector types. I always check that the kit supports the voltage range of 8-36V, which is standard for most cars, to avoid potential damage or inaccurate readings. It’s also essential to verify that the included probes and adapters fit the small, fragile, or complex connectors commonly found in vehicles. I look for kits that can interface seamlessly with electronic control units (ECUs) and support communication protocols like CAN bus, LIN, or FlexRay, since these are vital for accurate diagnostics. Additionally, I ensure the device’s software and hardware are compatible with my vehicle’s diagnostic standards, providing the right measurement functions for thorough vehicle analysis.
Bandwidth and Sampling Rate
Selecting the right automotive oscilloscope diagnostic kit hinges on understanding its bandwidth and sampling rate, which directly affect the accuracy of capturing electronic signals. Higher bandwidth, measured in MHz, allows the oscilloscope to accurately display high-frequency signals found in modern vehicle systems. The sampling rate, in GSa/s or MSa/s, determines how often data points are recorded; a higher rate helps resolve fast transient events and detailed waveforms. To prevent aliasing and guarantee precise signal representation, a minimum sampling rate should be at least twice the bandwidth (Nyquist criterion). For most automotive diagnostics, 50-100 MHz bandwidth suffices, but more complex systems benefit from higher bandwidths. Together, these factors influence waveform clarity, making them essential considerations for effective diagnostics.
Number of Channels Needed
The number of channels on an automotive oscilloscope directly impacts how efficiently and accurately you can diagnose complex vehicle systems. More channels allow you to analyze multiple signals simultaneously, which is vital for diagnosing modern vehicles with interconnected sensors and actuators. For complex systems, I recommend at least four channels to capture extensive data and compare related signals like ignition timing and fuel injection waveforms in real-time. If your work involves digital signals, you might need oscilloscopes with additional digital channels, increasing your troubleshooting capabilities. Choosing the right number of channels helps you avoid using multiple devices, saving both time and money. Ultimately, selecting an oscilloscope with enough channels ensures thorough diagnostics, especially when dealing with intricate automotive electronics.
Diagnostic Functionality Range
When evaluating automotive oscilloscope diagnostic kits, considering their diagnostic functionality range is vital for effective troubleshooting. I look for a bandwidth of at least 70 MHz to accurately capture high-frequency signals common in modern vehicles. It’s also important that the scope has multiple channels—ideally 4 to 8—to test several circuits simultaneously. Built-in automatic measurement functions, like voltage, current, and frequency, help streamline diagnostics. Advanced features such as FFT spectrum analysis, power analysis, and math functions provide a thorough view of complex signals. Triggering options like edge, pulse width, or pattern triggers are essential for capturing specific waveform events precisely. Together, these features ensure I can diagnose a wide array of automotive issues efficiently and accurately.
Ease of Use & Portability
A lightweight and compact design is essential because it allows me to carry the oscilloscope easily across various automotive environments. Portability is vital, especially when working on-site or in tight spaces. Battery-powered options or devices with low power consumption let me use the scope without relying on nearby power sources, increasing flexibility. Devices with integrated carrying cases or protective covers help me transport and deploy the scope quickly and safely. User-friendly interfaces, like touchscreens or simplified controls, cut down setup time and make operation straightforward, even for less experienced users. Compatibility with mobile devices or laptops via USB or wireless connections enhances portability, allowing me to control and analyze data remotely. Overall, ease of use and portability streamline diagnostics, saving time and effort during car repairs.
Software Support & Updates
Choosing an automotive oscilloscope diagnostic kit with robust software support and regular updates guarantees I stay compatible with the latest vehicle models and diagnostic protocols. Regular updates ensure the software keeps pace with evolving vehicle technology, preventing obsolescence. Good software support means troubleshooting assistance, bug fixes, and feature improvements, which enhance my user experience and diagnostic accuracy. Compatibility with operating systems like Windows, Linux, or macOS is essential for seamless integration and updates. Advanced kits often offer firmware upgrades that boost measurement precision and expand capabilities. A user-friendly interface is critical, reducing learning curves and making diagnostics more efficient. Overall, reliable software support and timely updates are indispensable for maintaining top performance and ensuring I can confidently diagnose even the newest vehicle systems.
Frequently Asked Questions
How Do I Interpret Complex Waveforms for Troubleshooting?
To interpret complex waveforms, I start by analyzing the shape, frequency, and amplitude of the signals. I compare them to known reference patterns and look for anomalies like irregular peaks or dips. Using the oscilloscope’s measurement tools helps me identify issues in circuits or sensors. Practice is key—I regularly review different waveforms to get better at recognizing what’s normal versus problematic, making troubleshooting faster and more accurate.
What Maintenance Is Required for Long-Term Accuracy?
To guarantee long-term accuracy, I regularly calibrate my oscilloscope according to the manufacturer’s instructions, usually using a known reference signal. I also keep it clean and store it in a dry, protected place when not in use. Periodic checks for any physical damage or loose connections help maintain precision. Staying updated with firmware upgrades and following proper handling practices make sure my diagnostics stay reliable over time.
Can These Oscilloscopes Diagnose Hybrid or Electric Vehicles?
A stitch in time saves nine, and that’s true for diagnosing hybrid and electric vehicles. These oscilloscopes can indeed handle hybrids and EVs, especially those with advanced features, but you’ll want models with high voltage and current ratings. I recommend checking the specs to make sure it can safely test high-voltage systems. With the right kit, you’ll pinpoint issues in EVs just as effectively as with traditional cars.
Are There Specific Safety Precautions During Testing?
Yes, there are specific safety precautions I always follow when testing with an automotive oscilloscope. I make sure the vehicle is turned off and the key removed before connecting equipment. I wear insulated gloves and eye protection to guard against electrical shocks. I also double-check grounding and wiring to prevent shorts or sparks. These steps help me stay safe and avoid damaging sensitive electronics during diagnostics.
How Do Firmware Updates Improve Device Performance?
Firmware updates are like giving my diagnostic kit a shot of new energy, making it faster and more reliable. I once struggled with a stubborn engine issue, but after updating the firmware, the device detected problems more accurately, saving me hours. These updates refine performance, fix bugs, and add features, ensuring your oscilloscope stays current. Staying updated means you’re always equipped to diagnose your car with precision and confidence.
Conclusion
If you’re serious about mastering car repairs, these oscilloscope kits are absolute game-changers—they’ll transform your diagnostic skills faster than you can say “mechanic’s magic.” Whether you’re a pro or a passionate DIYer, investing in the right kit can turn your garage into a high-tech repair hub. Don’t settle for guesswork; with these tools, you’ll diagnose like a wizard and leave problems in the dust. The future of car repair is here—are you ready?
