If you’re looking for the best automotive oscilloscope kits for 2026 diagnostics, I recommend checking out options like the Hantek 8-channel automotive oscilloscope, the USB-based Hantek 1008C, and PicoScope 2204A. These tools combine high-resolution measurement, multiple channels, and user-friendly features to make troubleshooting easier. Durable probes, portability, and software support are also key. Keep exploring further, and you’ll find detailed insights to choose the right kit for your needs.
Key Takeaways
- Prioritize kits with high bandwidth (≥70MHz) and multiple channels for comprehensive vehicle diagnostics.
- Choose models with durable, high-quality probes and accessories for reliable long-term use.
- Opt for user-friendly interfaces, automated setup, and software updates to enhance diagnostic efficiency.
- Consider compatibility with various vehicle communication protocols like CAN, LIN, and FlexRay.
- Evaluate build quality, portability, and customer support to ensure a valuable, lasting diagnostic investment.
| Hantek 8-Channel Automotive Diagnostic Oscilloscope |  | Best Overall | Number of Channels: 8 channels | Bandwidth: Not specified (oscilloscope) | Sampling Rate: 2.4 MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 1008C USB Automotive Oscilloscope |  | Professional Grade | Number of Channels: 8 channels | Bandwidth: Not specified | Sampling Rate: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| 104PCS Automotive Test Leads Kit with Clips and Probes |  | Most Comprehensive | Number of Channels: 104pcs (test leads set, not channels) | Bandwidth: Not applicable (test leads) | Sampling Rate: Not applicable (test leads) | VIEW LATEST PRICE | See Our Full Breakdown |
| PicoScope 2204A Oscilloscope Kit with Probes |  | Best Portable | Number of Channels: 2 channels | Bandwidth: 10 MHz | Sampling Rate: 100 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 1008C USB 8-Channel Automotive Oscilloscope |  | Versatile Diagnostic Tool | Number of Channels: 8 channels | Bandwidth: Not specified | Sampling Rate: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 4CH Automotive Oscilloscope Kit DSO3064 |  | Heavy-Duty Performance | Number of Channels: 4 channels | Bandwidth: 60 MHz | Sampling Rate: 200 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Micsig SATO1004 Portable Automotive Oscilloscope |  | Best Touchscreen | Number of Channels: 4 channels | Bandwidth: 100 MHz | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 1008B 8-Channel Automotive Oscilloscope |  | Reliable Choice | Number of Channels: 4 channels | Bandwidth: 70 MHz | Sampling Rate: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek HT307 Probe Kit for Automotive Diagnostics |  | Best Accessory Set | Number of Channels: 5 probes (accessories, not channels) | Bandwidth: Not specified | Sampling Rate: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 6074BE 70MHz Digital Oscilloscope (USB) |  | Advanced Features | Number of Channels: 4 channels | Bandwidth: 70 MHz | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Autel MP408 MaxiScope Basic Kit |  | Entry-Level Excellence | Number of Channels: 4 channels | Bandwidth: Not specified | Sampling Rate: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| VDIAGTOOL V500 Automotive Circuit Tester Kit |  | Best Multi-Function | Number of Channels: 6 channels | Bandwidth: 70 MHz | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
-
Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope/DAQ/Programmable Generator
8 channels oscilloscope for vehicle testing. Over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Performe/Starter and charging circuits...
As an affiliate, we earn on qualifying purchases.
Hantek 8-Channel Automotive Diagnostic Oscilloscope
If you’re an automotive technician, hobbyist, or electronics enthusiast looking for a versatile diagnostic tool, the Hantek 8-Channel Automotive Diagnostic Oscilloscope is an excellent choice. It features 8 channels with 12-bit resolution, a 4K memory depth, and a 2.4 MSa/s sampling rate, making detailed signal analysis straightforward. Compatible with Android devices, PCs, and tablets via USB 2.0, it offers over 80 diagnostic functions, including ignition, sensor, and bus detection. Its programmable 8-channel signal generator simulates crankshaft and camshaft signals, enhancing testing capabilities. Designed for ease of use, it’s perfect for troubleshooting, diagnostics, and learning about automotive electronics.
- Number of Channels:8 channels
- Bandwidth:Not specified (oscilloscope)
- Sampling Rate:2.4 MSa/s
- Storage/Memory:4K memory depth
- Compatibility/Connectivity:USB 2.0, Android, PC
- Automotive Diagnostic Functions:Over 80 functions (ignition, sensors, bus)
- Additional Feature:Programmable signal generator included
- Additional Feature:Android device compatibility
- Additional Feature:80+ diagnostic functions
-
104PCS Automotive Circuit Test Leads Kit Electrical Breakout Leads Automotive Kit Multimeter Test Leads Kit with Alligator Clips,Banana Plug Test Lead,Oscilloscope Probe
【104PCS Upgraded Auto Circuit Test Leads Kit】The 104PCS Automotive Circuit Terminal Test is multi-functional, its main function is...
As an affiliate, we earn on qualifying purchases.
Hantek 1008C USB Automotive Oscilloscope
The Hantek 1008C USB Automotive Oscilloscope stands out for its 8-channel design, making it an excellent choice for professional technicians who need extensive vehicle diagnostics. This scope supports over 80 diagnostic functions, including ignition, sensors, bus detection, and charging circuits. Its advanced features include online tutorials, diagnostic report generation, and easy data saving or sharing. The device’s versatility allows for thorough testing and troubleshooting, streamlining the diagnostic process. Compact and user-friendly, the Hantek 1008C integrates seamlessly with a PC, providing powerful diagnostic capabilities in a portable package—making it an essential tool for modern automotive repair.
- Number of Channels:8 channels
- Bandwidth:Not specified
- Sampling Rate:Not specified
- Storage/Memory:Not specified
- Compatibility/Connectivity:USB, PC; software tutorials
- Automotive Diagnostic Functions:Over 80 functions, report generation
- Additional Feature:Generates diagnostic reports
- Additional Feature:Supports online tutorials
- Additional Feature:USB PC connection
-
Pico Technology PicoScope 2204A Oscilloscope 2 Channels 10 MHz Bandwidth, 100 MS/s Sampling Rate, Handheld USB PC Digital Portable Lab Kit, with Probes, PS7 Software and Waveform Generator
Use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and decode...
As an affiliate, we earn on qualifying purchases.
104PCS Automotive Test Leads Kit with Clips and Probes
The PCS Automotive Test Leads Kit with Clips and Probes stands out as an essential tool for professional technicians and serious DIY enthusiasts tackling complex automotive electrical systems. With 104 pieces, it’s versatile enough to diagnose circuits, sensors, actuators, and electronic components across most vehicles in Europe and the U.S. It’s compatible with any multimeter or oscilloscope probe extension cable, making it highly adaptable. The kit includes a variety of clips, probes, connectors, and terminals created from durable, high-temperature, and abrasion-resistant rubber. Packaged in a portable case, it ensures easy storage and transport, making on-the-go diagnostics quick and efficient.
- Number of Channels:104pcs (test leads set, not channels)
- Bandwidth:Not applicable (test leads)
- Sampling Rate:Not applicable (test leads)
- Storage/Memory:Not applicable (test leads)
- Compatibility/Connectivity:Not applicable (test leads)
- Automotive Diagnostic Functions:Not applicable (test leads)
- Additional Feature:Well-organized storage case
- Additional Feature:High-temp, abrasion-resistant
- Additional Feature:Multiple connector types

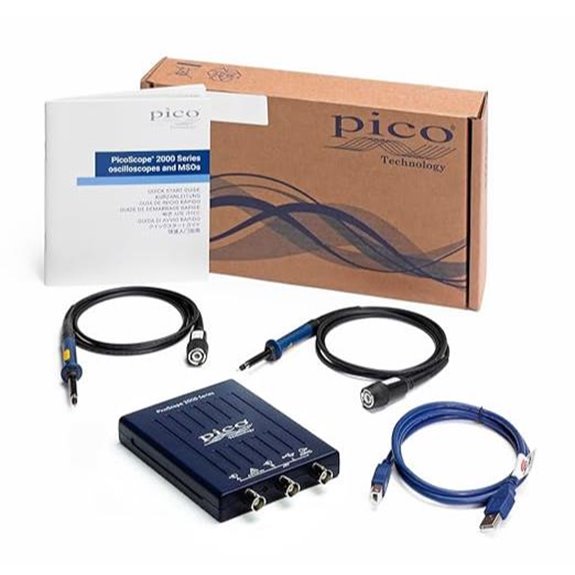

PicoScope 2204A Oscilloscope Kit with Probes
Designed for technicians and hobbyists who need portable, reliable testing tools, the PicoScope 2204A Oscilloscope Kit with Probes stands out with its compact size and versatile features. It’s a handheld USB oscilloscope that easily fits into a laptop bag, supporting USB 2.0, 3.0, and 3.1 connections across Windows, Linux, and Mac. The kit includes two passive probes, a USB cable, and a Quick Start Guide. With 2 channels, 10 MHz bandwidth, 100 MS/s sampling rate, and 8 kS memory, it provides detailed signal analysis. Its software offers advanced measurement, waveform generation, and protocol decoding, making it an excellent all-in-one diagnostic tool.
- Number of Channels:2 channels
- Bandwidth:10 MHz
- Sampling Rate:100 MS/s
- Storage/Memory:8 kS capture memory
- Compatibility/Connectivity:USB 2.0, Windows/Linux/Mac
- Automotive Diagnostic Functions:Over 80 functions, multimeter, generator
- Additional Feature:Spectrum and waveform analysis
- Additional Feature:Decodes serial protocols
- Additional Feature:Free software updates
Hantek 1008C USB 8-Channel Automotive Oscilloscope
If you’re looking for a versatile oscilloscope that combines automotive diagnostics with general-purpose measurement, the Hantek 1008C USB 8-Channel Automotive Oscilloscope stands out as an excellent choice. It connects easily to Android devices, tablets, smartphones, and PCs via USB 2.0, making it highly accessible. With 8 channels, 12-bit resolution, 4K memory depth, and a 2.4MSa/s sampling rate, it delivers detailed signals. It offers over 80 automotive diagnostic functions, including ignition, sensor, and bus detection, plus a programmable signal generator for simulating crankshaft signals. Designed for professionals and hobbyists alike, it simplifies complex diagnostics across various electronic devices.
- Number of Channels:8 channels
- Bandwidth:Not specified
- Sampling Rate:Not specified
- Storage/Memory:Not specified
- Compatibility/Connectivity:USB 2.0, PC
- Automotive Diagnostic Functions:Over 80 functions, auto setup
- Additional Feature:Simulates crank/cam signals
- Additional Feature:Supports learning diagnostics
- Additional Feature:User-friendly operation
Hantek 4CH Automotive Oscilloscope Kit DSO3064
For automotive technicians seeking a reliable and versatile diagnostic tool, the Hantek 4CH Automotive Oscilloscope Kit DSO3064 stands out with its robust features and user-friendly design. It offers a 60MHz bandwidth, 200MS/s sampling rate, and extensive memory per channel, making detailed signal analysis straightforward. The device supports vehicle diagnostics such as engine cranking, sensor testing, and CAN bus data viewing, all within an industrial-grade, easy-to-use interface. Its compatibility with Windows OS and optional LAN connectivity ensure seamless integration into existing workflows. Plus, the included software tools and technical support make it an excellent choice for professional automotive diagnostics.
- Number of Channels:4 channels
- Bandwidth:60 MHz
- Sampling Rate:200 MS/s
- Storage/Memory:10k–16M memory depth
- Compatibility/Connectivity:USB 2.0, Windows
- Automotive Diagnostic Functions:Extensive vehicle diagnostics, engine, sensors
- Additional Feature:LAN connectivity option
- Additional Feature:FFT spectrum analysis
- Additional Feature:Wide input voltage range
Micsig SATO1004 Portable Automotive Oscilloscope
The Micsig SATO1004 Portable Automotive Oscilloscope stands out as an excellent choice for technicians who need a compact yet powerful diagnostic tool. It features four channels, 100MHz bandwidth, and a 1GSa/s sampling rate, ensuring precise measurements. The 8-inch touchscreen tablet interface, powered by an upgraded Android system, offers smooth operation and easy navigation. With Wi-Fi connectivity and remote operation via smartphone app, I can monitor waveforms in real-time, even on the go. Its versatile application covers ignition, sensors, networks, and pressure testing. Plus, the 32GB storage lets me save large files, making data management straightforward and efficient.
- Number of Channels:4 channels
- Bandwidth:100 MHz
- Sampling Rate:1 GSa/s
- Storage/Memory:8 GB internal storage
- Compatibility/Connectivity:Wi-Fi, Android, PC
- Automotive Diagnostic Functions:Ignition, sensors, circuits, pressure tests
- Additional Feature:8-inch touchscreen display
- Additional Feature:Remote via Wi-Fi
- Additional Feature:32GB internal storage
Hantek 1008B 8-Channel Automotive Oscilloscope
As a versatile tool designed for automotive technicians, the Hantek 1008B 8-Channel Automotive Oscilloscope stands out with its ability to perform extensive diagnostics using multiple channels simultaneously. It’s a USB-based device that functions as both a DAQ card and a programmable generator, supporting over 80 diagnostic functions like ignition, sensors, bus detection, and circuit testing. Its capacity to simulate camshaft and crankshaft signals helps pinpoint issues precisely. Plus, it enables long-term waveform recording, making data analysis straightforward. With user-friendly video guides and options to save, print, or generate diagnostic reports, it streamlines vehicle troubleshooting and documentation effectively.
- Number of Channels:4 channels
- Bandwidth:70 MHz
- Sampling Rate:Not specified
- Storage/Memory:Not specified
- Compatibility/Connectivity:USB, Windows
- Automotive Diagnostic Functions:Vehicle diagnostics, sensor, ignition, bus
- Additional Feature:Long waveform recording
- Additional Feature:Data screenshot printing
- Additional Feature:Supports detailed data export
Hantek HT307 Probe Kit for Automotive Diagnostics
If you’re working on modern automotive electrical systems, the Hantek HT307 Probe Kit stands out as an essential tool thanks to its precise and gentle probing capabilities. It includes five assorted color back probe pins, perfect for testing small, fragile connectors without causing damage. The sharp tips easily pierce wire insulation or seals, enabling accurate measurements on delicate components. Plus, the tips are repairable and replaceable, saving you money and extending the kit’s lifespan. With its versatile design, the kit is ideal for probing tiny wires and circuit boards, making it a must-have for anyone serious about automotive diagnostics.
- Number of Channels:5 probes (accessories, not channels)
- Bandwidth:Not specified
- Sampling Rate:Not specified
- Storage/Memory:Not specified
- Compatibility/Connectivity:Not specified
- Automotive Diagnostic Functions:Not specified
- Additional Feature:Reusable, replaceable tips
- Additional Feature:Assorted color probes
- Additional Feature:Piercing small wires
Hantek 6074BE 70MHz Digital Oscilloscope (USB)
Designed for automotive technicians and hobbyists alike, the Hantek 6074BE 70MHz Digital Oscilloscope (USB) offers a powerful combination of portability and advanced diagnostic features. It has 4 channels, a 70MHz bandwidth, and a 1GSa/s real-time sampling rate, making it suitable for detailed engine and sensor analysis. Its high input sensitivity and large input range simplify complex measurements. The device features a high-resolution color LCD, waveform recording, and dynamic cursor tracking, all operated through user-friendly preset modes. Compatible with Windows and portable devices via USB, it’s ideal for field diagnostics, providing versatile tools in a compact, easy-to-use package.
- Number of Channels:4 channels
- Bandwidth:70 MHz
- Sampling Rate:1 GSa/s
- Storage/Memory:Not specified
- Compatibility/Connectivity:USB 2.0, Windows
- Automotive Diagnostic Functions:Over 80 functions, comprehensive testing
- Additional Feature:Multimeter, waveform generator
- Additional Feature:High-resolution LCD
- Additional Feature:Portable for field use
Autel MP408 MaxiScope Basic Kit
The Autel MP408 MaxiScope Basic Kit stands out for its user-friendly interface, making it an excellent choice for technicians who want quick, accurate results. Its color-coded 4-channel control panel simplifies operation, while the high-resolution waveform display offers clear visualization. The kit features one-click auto setup for voltage scale and time base, saving time during diagnostics. Waveform recording and playback help analyze issues efficiently. Plus, it includes free online software updates via the internet, ensuring you stay current with the latest features. Overall, this scope combines ease of use with powerful functions, making it a reliable tool for automotive diagnostics.
- Number of Channels:4 channels
- Bandwidth:Not specified
- Sampling Rate:Not specified
- Storage/Memory:Not specified
- Compatibility/Connectivity:Internet updates, PC
- Automotive Diagnostic Functions:Basic auto diagnostics, waveform display
- Additional Feature:Auto setup voltage/time
- Additional Feature:Color-coded control panel
- Additional Feature:Waveform playback
VDIAGTOOL V500 Automotive Circuit Tester Kit
The VDIAGTOOL V500 Automotive Circuit Tester Kit stands out as a versatile, all-in-one testing tool perfect for professional technicians and serious DIYers alike. It combines circuit testing, relay testing, oscilloscope, and multimeter functions into one device, enabling troubleshooting of 9-30V DC automotive systems. With features like waveform analysis, component activation, and fuel injector testing, it covers a broad range of diagnostics. The device’s clear digital displays, LED indicators, buzzer alarms, and foldable screen make it user-friendly even in tight spaces. Built for durability, it supports various vehicle types and comes with extensive accessories, ensuring reliable performance in any diagnostic scenario.
- Number of Channels:6 channels
- Bandwidth:70 MHz
- Sampling Rate:1 GSa/s
- Storage/Memory:Not specified
- Compatibility/Connectivity:USB, PC
- Automotive Diagnostic Functions:Fuel injectors, circuits, relay testing
- Additional Feature:Multi-function testing
- Additional Feature:Fuel injector diagnostics
- Additional Feature:Built-in flashlight
Factors to Consider When Choosing Automotive Oscilloscope Diagnostic Kits
When choosing an automotive oscilloscope kit, I focus on how well it works with my vehicle’s make and model. I also consider the features and specs it offers, along with how easy it is to set up and use. Ultimately, portability, storage options, and the range of diagnostic functions are key factors that influence my decision.
Compatibility With Vehicles
Choosing the right automotive oscilloscope kit requires ensuring it’s compatible with your specific vehicles. I always check if the kit supports the makes and models I work on, including European and American cars. It’s vital that the device handles standard automotive electrical systems within 9V to 36V, so I verify this before purchasing. I also look for adapters or probes that fit small, delicate, or complex connectors, especially in modern wiring. Compatibility with communication protocols like CAN, LIN, or FlexRay is essential for thorough diagnostics. Lastly, I confirm that the software and hardware support my vehicle’s ECUs and diagnostic ports. Ensuring these factors match my vehicle’s requirements saves time and guarantees accurate readings during diagnostics.
Oscilloscope Features & Specs
Selecting an automotive oscilloscope kit involves evaluating several key features to guarantee it meets your diagnostic needs. Bandwidth, ranging from 10 MHz to 70 MHz, determines how well it captures high-frequency signals typical in modern vehicles. The sampling rate, usually between 100 MS/s and 200 MS/s, affects the clarity and detail of waveforms by how often data points are recorded. Resolution, often 8 or 12 bits, influences measurement precision and waveform sharpness. The number of channels, from 4 to 8, allows monitoring multiple signals simultaneously for exhaustive diagnostics. Built-in automatic measurement functions and versatile trigger modes simplify analysis and help you capture specific events effortlessly. These features collectively determine how effectively the scope can diagnose complex automotive systems.
Ease of Use & Setup
A user-friendly automotive oscilloscope makes diagnostics faster and less frustrating by offering an intuitive interface with simple controls and clear menus. This reduces setup time and helps me focus on diagnosing issues rather than figuring out how to operate the device. Kits that include automated measurement modes and one-key functions make initial setup and signal analysis straightforward, saving valuable time. Compatibility with common operating systems like Windows, Linux, or macOS simplifies installation and reduces software adjustment hassles. Additionally, bundled accessories such as probes, test leads, and quick-start guides help guarantee proper setup and calibration right out of the box. Devices with pre-configured diagnostic templates and minimal calibration requirements are especially convenient, enabling quick, hassle-free operation even for less experienced users.
Diagnostic Functionality Range
To effectively diagnose a wide range of vehicle electrical issues, I look for oscilloscopes with extensive diagnostic capabilities. A broad functionality range lets me identify problems in ignition systems, sensors, and bus networks efficiently. Devices supporting over 80 diagnostic functions enable exhaustive testing of critical vehicle systems like starting, charging, and actuators. Programmable signal generators are a bonus, as they allow me to simulate engine signals such as crankshaft and camshaft pulses, improving accuracy. Advanced features like real-time waveform analysis, auto measurement modes, and report generation streamline troubleshooting. Supporting multiple automotive protocols, including CAN, LIN, and FlexRay, ensures I can diagnose various electronic systems across different vehicle models. This versatility is essential for thorough, efficient diagnostics in today’s complex automotive landscape.
Portability & Storage Options
When choosing an automotive oscilloscope diagnostic kit, portability and storage options play a essential role in guaranteeing I can perform accurate diagnostics anywhere. A well-designed carrying case protects the device and accessories during transport, making fieldwork more manageable. Compact, lightweight designs enhance ease of use and reduce fatigue during extended use. Some kits feature foldable or detachable parts, saving space in my toolbox or vehicle. Wireless connectivity, such as Wi-Fi or Bluetooth, allows me to monitor data remotely and minimizes cable clutter, streamlining my workflow. Storage capacity is also imperative; kits with internal memory or external options ensure I can save large waveform files and diagnostic data without hassle. These features collectively boost my efficiency and convenience during on-the-go repairs.
Software & Data Management
Choosing an automotive oscilloscope diagnostic kit goes beyond portability; software support and data management are vital for effective troubleshooting. I look for kits with extensive software that’s regularly updated and compatible across Windows, Linux, and Mac. Versatile data management options are essential—I prefer the ability to save waveforms as screenshots, export detailed reports, and share data easily via USB, SD card, or cloud storage. Built-in data logging capabilities are a big plus, allowing me to record long-term waveforms for thorough analysis. Advanced software features like waveform measurement, filtering, and protocol decoding considerably improve diagnostic accuracy. Finally, I prioritize kits with reliable customer support for software issues and straightforward firmware or algorithm updates, ensuring my diagnostic tools stay current and effective.
Build Quality & Durability
Since automotive environments are often harsh and unpredictable, I prioritize build quality and durability in an oscilloscope diagnostic kit. A sturdy design guarantees the device can handle vibrations, shocks, and temperature changes that are common on the job. I look for kits made from high-quality plastics, reinforced connectors, and impact-resistant cases, which help extend their lifespan. Weatherproof or sealed designs are essential to protect internal components from dust, moisture, and oil. Precise manufacturing standards and top-grade parts reduce signal interference and hardware failures, ensuring reliable performance. Well-made probes and cables with secure connections minimize signal loss, maintaining diagnostic accuracy over time. Overall, a robust build ensures the kit remains dependable in demanding automotive settings, making it a valuable investment.
Price & Value
Finding the right automotive oscilloscope kit means balancing features and cost to get the best value for your needs. I recommend considering whether the price includes essential accessories like probes, leads, and software updates, since these add significant value. Higher-priced kits with advanced features such as multi-channel support and extensive diagnostics often provide better long-term value, especially for professional use. It’s also important to compare kits based on durability, warranty, and customer support, ensuring you get a reliable product that lasts. For hobbyists or those on a budget, simpler options may lack some advanced features but still deliver dependable diagnostics for basic repairs, offering good value. Ultimately, aim for a kit that meets your diagnostic needs without overpaying for unnecessary extras.
Frequently Asked Questions
How Do I Interpret Oscilloscope Waveforms for Automotive Diagnostics?
To interpret oscilloscope waveforms for automotive diagnostics, I start by understanding what normal signals look like for each component. I look for irregular patterns, fluctuations, or missing signals that indicate issues. I compare the waveforms to known good patterns, check amplitude and timing, and note any deviations. With practice, I quickly identify problems by recognizing familiar waveform shapes and anomalies, helping me diagnose efficiently and accurately.
What Is the Ideal Bandwidth for Automotive Oscilloscope Applications?
Think of the ideal bandwidth as a camera lens that captures all the detail in a fast-moving scene. For automotive diagnostics, I recommend an oscilloscope with at least 100 MHz bandwidth. This range effectively captures the high-frequency signals in modern vehicle electronics, helping you diagnose issues accurately. Anything lower might miss critical waveform details, leading to incomplete diagnostics. So, aim for that 100 MHz mark or higher for best results.
How Do Different Probe Types Affect Diagnostic Accuracy?
Different probe types substantially impact diagnostic accuracy because each is designed for specific signals and test conditions. For example, passive probes are versatile but may introduce signal distortion at high frequencies, while active probes offer better accuracy for delicate signals. Using the right probe guarantees precise readings, reduces noise, and prevents damage to your equipment. I always choose the appropriate probe type based on the specific diagnostic task to get the best results.
Can These Kits Diagnose Hybrid or Electric Vehicle Systems?
Yes, these kits can diagnose hybrid and electric vehicle systems. Think of them as high-tech detective tools, uncovering hidden electrical secrets in complex systems. They allow me to monitor high-voltage circuits, analyze signal integrity, and troubleshoot powertrain issues safely. With the right probe and settings, I can unravel the mysteries of EVs’ intricate electronics, ensuring accurate diagnostics and keeping these advanced vehicles running smoothly.
What Training Is Recommended for Beginners Using Automotive Oscilloscopes?
For beginners using automotive oscilloscopes, I recommend starting with online tutorials and manufacturer-specific training courses. Hands-on practice is key, so I suggest working on real vehicles under supervision or guidance. Understanding basic electrical principles and signal analysis helps too. Don’t rush—building a solid foundation guarantees you become confident and effective in diagnosing automotive issues. Most importantly, stay curious and keep practicing regularly.
Conclusion
In wrapping up, I recommend weighing the wise choices that suit your specific needs. Whether you’re seeking simplicity, sophistication, or extensive testing, selecting the right scope can considerably streamline your service. By balancing budget, bandwidth, and features, you’ll be better equipped to diagnose and decipher vehicle issues with confidence. Remember, a well-wielded, wisely chosen oscilloscope kit will not only enhance your expertise but elevate your automotive troubleshooting experience.
