Choosing the best oscilloscopes for automotive diagnostics involves balancing performance, ease of use, and price. The top pick, the Autel MaxiScope MP608, offers professional-grade features suitable for serious technicians. For those seeking portability, the Micsig SATO1004 Portable provides a compact, handheld solution. Budget-conscious buyers might lean toward the Hantek 1008C, which offers solid functionality at a lower cost. However, tradeoffs often include limited features or complexity in setup. Continue reading for a detailed comparison to find the right fit for your diagnostic needs.
Get business pricing on garage and car supplies
- Business-only prices and quantity discounts
- Tax-exempt purchasing
- Multiple users, one account, clear invoices
Complete the kit
Key Takeaways
- The top overall pick, the Autel MaxiScope MP608, balances advanced features with user-friendly operation, making it suitable for professional automotive diagnostics.
- Portability is a key advantage of the Micsig SATO1004, which is best suited for mobile technicians needing quick, on-site testing.
- Budget options like the Hantek 1008C provide reliable basic functionality but may lack advanced features needed for in-depth diagnostics.
- Multi-channel capability significantly improves diagnostic efficiency, with 8-channel models offering the best flexibility for complex tasks.
- Ease of use and interface design vary widely; touchscreen controls and intuitive menus are common among higher-end models, reducing setup time.
| Micsig Automotive Tablet Oscilloscope SATO1004, 4-Channel 8-Inch |  | Best Overall for Integrated Automotive Diagnostics | Display: 8-inch touchscreen | Channels: 4 | Storage: 32GB | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 1008C+HT201+HT30A+HT307 PC USB 8-Channel Automotive Diagnostic Oscilloscope |  | Best for Versatility and Signal Simulation | Channels: 8 | Resolution: 12 bits | Memory Depth: 4K | VIEW LATEST PRICE | See Our Full Breakdown |
| Autel MaxiScope MP608 4-Channel Automotive Oscilloscope |  | Best for High-Precision Professional Diagnostics | Channels: 4 | Measurement Accuracy: ±1% | Vertical Resolution: 12-bit | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 1008C PC USB 8-Channel Automotive Diagnostic Digital Oscilloscope |  | Best for Wide-Range Automotive Functionality | Channels: 8 | Connectivity: USB | Application: Automotive diagnostics | VIEW LATEST PRICE | See Our Full Breakdown |
| Micsig SATO1004 Portable Handheld Automotive Oscilloscope |  | Best for Fieldwork and Portability | Operating System: Android | Storage: 32GB | Connectivity: Wi-Fi, Type-C, LAN, HDMI, USB Host/Device | VIEW LATEST PRICE | See Our Full Breakdown |
| FNIRSI 1013D Plus 100MHz Oscilloscope, 2 Channel, 7″ TFT Touchscreen |  | Best Portable Oscilloscope for On-the-Go Diagnostics | Sampling Rate: 1 GSa/s | Bandwidth: 100 MHz | Display: 7 inch TFT touchscreen, 800×480 resolution | VIEW LATEST PRICE | See Our Full Breakdown |
| oscilloscopes for automotive diagnostic | Channels | Connectivity | Storage |
|---|---|---|---|
| Micsig Automotive Tablet Oscil | 4 | Wi-Fi, Type-C, LAN, HDMI, USB, GND, DC power | 32GB |
| Hantek 1008C+HT201+HT30A+HT307 | 8 | — | — |
| Autel MaxiScope MP608 4-Channe | 4 | Tablet & Windows PC | — |
| Hantek 1008C PC USB 8-Channel | 8 | USB | — |
| Micsig SATO1004 Portable Handh | — | Wi-Fi, Type-C, LAN, HDMI, USB Host/Device | 32GB |
| FNIRSI 1013D Plus 100MHz Oscil | — | — | 1 GB |
More Details on Our Top Picks
Micsig Automotive Tablet Oscilloscope SATO1004, 4-Channel 8-Inch
This Android-based tablet oscilloscope stands out for its comprehensive connectivity and high-speed waveform capture, making it ideal for detailed automotive diagnostics. Compared to the Micsig SATO1004 Portable, this version’s larger 8-inch touchscreen and extensive connectivity options like HDMI and LAN facilitate more complex diagnostic workflows. While its bulkier size may hinder portability, its ability to support remote monitoring and store large data sets makes it suitable for professional workshops that need robust analysis tools. The requirement for familiarity with diagnostic software might be a hurdle for beginners, but advanced users will appreciate its capabilities.
Pros:- High-speed waveform capture at 130,000 waveforms/sec for precise diagnostics
- Supports remote monitoring via smartphone app for real-time data access
- Multiple connectivity options including Wi-Fi, HDMI, LAN, and USB for flexible integration
- Large 8-inch touchscreen enhances user interface and ease of navigation
Cons:- Requires familiarity with automotive diagnostic software, potentially steep learning curve
- Higher cost compared to simpler handheld or USB scopes
- Bulkier design may impact portability during fieldwork
Best for: Professional automotive technicians who need a versatile, high-capacity diagnostic device with remote monitoring capabilities
Not ideal for: Hobbyists or DIYers seeking a lightweight, portable solution without the need for complex software setup
- Display:8-inch touchscreen
- Channels:4
- Storage:32GB
- Connectivity:Wi-Fi, Type-C, LAN, HDMI, USB, GND, DC power
- Waveform Capture Rate:130,000 waveforms/sec
- Interface:Universal BNC
- Operating System:Android
Our verdict“This scope suits professional environments where comprehensive diagnostics and connectivity are prioritized over portability.”
Hantek 1008C+HT201+HT30A+HT307 PC USB 8-Channel Automotive Diagnostic Oscilloscope
This combination of an 8-channel scope with signal generator capabilities makes it a flexible tool for automotive diagnostics and electronics testing. Unlike the Hantek 1008C USB, which is primarily a basic scope, this setup adds programmable signal generation, broadening its use beyond diagnostics to include simulation and research. Its reliance on Windows PC connectivity limits portability but enhances processing power and software options. The complex features might be overwhelming for casual users, but for technicians with some experience, it provides valuable functionality at a reasonable price point.
Pros:- Supports a wide range of automotive functions including ignition, sensors, and bus detection
- Includes programmable signal generator for simulation tasks
- USB data transfer compatible with PC software for detailed analysis
- 12-bit resolution enhances measurement precision
Cons:- Limited to Windows OS, restricting flexibility for Mac or Linux users
- Requires a PC for operation, reducing portability
- Complex features may require prior oscilloscope experience
Best for: Automotive technicians and electronics hobbyists who need both diagnostic and signal testing functions in one device
Not ideal for: Users seeking a portable, standalone device without the need for a PC, or those unfamiliar with oscilloscope software
- Channels:8
- Resolution:12 bits
- Memory Depth:4K
- Sampling Rate:2.4MSa/s
- Frequency Range:0-250KHz
- Interface:USB 2.0
- Compatibility:Windows
Our verdict“This scope is ideal for professionals needing multi-functional testing and simulation capabilities within a Windows environment.”
Autel MaxiScope MP608 4-Channel Automotive Oscilloscope
The Autel MaxiScope MP608 provides high measurement accuracy and versatile visualization modes, making it highly suitable for advanced diagnostic tasks. Its ±1% measurement accuracy surpasses many consumer-grade options, and features like spectrum and XY modes allow detailed signal analysis. Unlike portable options like the Micsig SATO1004 Portable, this model emphasizes accuracy and data analysis, which justifies its higher cost. Its complex interface may deter casual users, but for specialists requiring precise, multi-modal diagnostics, it delivers significant value. Connectivity with tablets and PCs supports diagnostics on the move, although training will likely be necessary for optimal use.
Pros:- High measurement accuracy at ±1% for reliable diagnostics
- Multiple visualization modes including spectrum and XY for detailed analysis
- Supports tablet and PC connectivity for flexible diagnostics
- Includes AI-generated math channels and cloud sync for advanced data handling
Cons:- Complex interface may require training for new users
- Higher price point may be a barrier for smaller workshops
- Designed more for professional use than casual testing
Best for: Advanced automotive diagnostics professionals who need precise measurements and multiple visualization options
Not ideal for: Beginners or hobbyists who prefer simple, plug-and-play devices without extensive training requirements
- Channels:4
- Measurement Accuracy:±1%
- Vertical Resolution:12-bit
- Modes:Oscilloscope, Spectrum, XY, Multi-View
- Connectivity:Tablet & Windows PC
- Features:AI-Generated Math, Cloud Sync
Our verdict“This scope is best suited for technicians needing detailed, high-precision diagnostics and versatile visualization tools.”
Hantek 1008C PC USB 8-Channel Automotive Diagnostic Digital Oscilloscope
The Hantek 1008C excels in offering a broad spectrum of automotive diagnostic functions, from ignition to bus detection, making it a reliable choice for comprehensive vehicle testing. Unlike the Hantek 1008C+HT201+HT30A+HT307 setup that adds signal generation, this model focuses solely on diagnostics. Its USB connectivity and video help features make report generation straightforward. However, being dependent on a PC limits its use in field environments without a laptop. Its focus on automotive functions makes it less suitable for general electronics testing, but it is highly effective for vehicle-specific diagnostics.
Pros:- Supports over 80 automotive diagnostic functions including ignition and sensor checks
- Includes video help and easy report generation features
- USB connectivity simplifies data transfer and analysis
- Designed specifically for vehicle testing, covering key circuits and systems
Cons:- Requires a PC to operate, reducing portability
- Limited to automotive diagnostics, not suitable for general electronics
- No standalone or handheld operation option
Best for: Automotive technicians needing a cost-effective, multi-function scope focused on vehicle diagnostics with easy report features
Not ideal for: Mobile technicians or hobbyists without a dedicated PC setup looking for portable testing tools
- Channels:8
- Connectivity:USB
- Application:Automotive diagnostics
- Functions:Ignition, Sensor, Bus detection, Starter, Charging
Our verdict“This scope offers a broad range of automotive-specific functions ideal for workshop environments with a PC setup.”

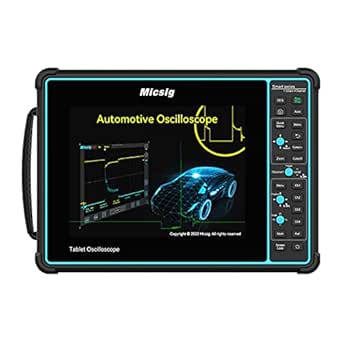

Micsig SATO1004 Portable Handheld Automotive Oscilloscope
The Micsig SATO1004 handheld oscilloscope prioritizes portability without sacrificing core diagnostic functions. Its upgraded Android OS and physical control buttons make it user-friendly, especially for technicians on the move. While the device’s compact size and remote operation via smartphone app are advantageous for field repairs, the limited internal storage and reliance on Wi-Fi for remote features could pose challenges in areas with weak connectivity. Compared to larger, more feature-rich scopes like the Autel MaxiScope MP608, this model excels in mobility but lacks some of the advanced measurement precision and visualization modes. It’s a strong choice for technicians who need quick, reliable diagnostics in the field.
Pros:- Compact, handheld design ideal for field use
- Supports remote operation via smartphone app for real-time data monitoring
- Multiple I/O ports for versatile connectivity
- Upgraded Android OS enhances user interface and software flexibility
Cons:- Requires stable Wi-Fi for remote operation, which may be unreliable in some locations
- Limited internal storage for large data files without external solutions
- Setup complexity can be a hurdle for non-technical users
Best for: Technicians and mobile mechanics who need a portable, easy-to-use scope for on-the-spot diagnostics
Not ideal for: Workshops or users requiring high-precision measurements and extensive visualization options
- Operating System:Android
- Storage:32GB
- Connectivity:Wi-Fi, Type-C, LAN, HDMI, USB Host/Device
- Applications:Ignition, sensors, networks, pressure tests
Our verdict“This scope is best suited for mobile technicians needing a portable, easy-to-operate device with remote control features.”
FNIRSI 1013D Plus 100MHz Oscilloscope, 2 Channel, 7″ TFT Touchscreen
The FNIRSI 1013D Plus stands out for its portability and user-friendly interface, making it ideal for technicians who need to perform diagnostics in various locations. Its 7-inch high-resolution touchscreen simplifies measurement tasks, especially compared to bulkier, traditional bench scopes like the Autel MaxiScope MP608, which is better suited for stationary use but less convenient for fieldwork. While the 100 MHz bandwidth is sufficient for most automotive signals, it may fall short for high-frequency engine management systems, representing a tradeoff for its compact design. The scope’s 1 GSa/s sampling rate ensures detailed waveform capture, but the limited storage capacity of 1 GB could be a constraint during extended testing, unlike larger-capacity models. Its battery life of around 4 hours supports a full day of field diagnostics without needing a power source, though frequent recharging might be necessary for heavy use. Overall, this pick is best for mobile mechanics or technicians needing quick, precise readings on-site, but less so for those requiring ultra-high bandwidth or extensive data storage.
Pros:- Lightweight and portable for easy transport between jobs
- High-resolution touchscreen simplifies operation and measurements
- Supports waveform storage, FFT, and Lissajous analysis for versatile testing
- Battery life of approximately 4 hours allows for prolonged use in the field
Cons:- Limited to 100 MHz bandwidth, which may not suffice for all high-frequency automotive signals
- Storage capacity of only 1 GB could restrict data collection during intensive testing
- Battery life might require frequent recharging during long diagnostic sessions
Best for: Automotive technicians who need a portable, easy-to-use oscilloscope for field diagnostics and quick troubleshooting.
Not ideal for: Professionals working on high-frequency electronic components or conducting extensive data logging, as the 100 MHz bandwidth and limited storage could hinder detailed analysis.
- Sampling Rate:1 GSa/s
- Bandwidth:100 MHz
- Display:7 inch TFT touchscreen, 800×480 resolution
- Storage:1 GB
- Battery:6000 mAh, approx. 4 hours use
- Protection:High-voltage protection up to 400 V
Our verdict“This scope is ideal for mobile mechanics and field technicians needing a compact, intuitive device for everyday automotive diagnostics, but it may fall short for high-frequency or data-intensive applications.”
How We Picked
The products in this roundup were evaluated based on their performance in automotive environments, usability, build quality, and value. We prioritized features like multi-channel support, connectivity options, and ease of operation, especially for technicians working on engines and electrical systems. Additional considerations included portability for mobile diagnostics and durability for workshop use. Our rankings reflect a balance of professional-grade capabilities and affordability, ensuring that each option serves a specific user need without unnecessary complexity or cost.| oscilloscopes for automotive diagnostic | Connectivity |
|---|---|
| Micsig Automotive Tablet Oscil | Wi-Fi, Type-C, LAN, HDMI, USB, GND, DC power |
| Hantek 1008C+HT201+HT30A+HT307 | — |
| Autel MaxiScope MP608 4-Channe | Tablet & Windows PC |
| Hantek 1008C PC USB 8-Channel | USB |
| Micsig SATO1004 Portable Handh | Wi-Fi, Type-C, LAN, HDMI, USB Host/Device |
| FNIRSI 1013D Plus 100MHz Oscil | — |
Factors to Consider When Choosing Best Oscilloscopes For Automotive Diagnostics
When choosing an oscilloscope for automotive diagnostics, understanding key factors can help you find the best match. The right device should combine performance with ease of use, especially in demanding workshop settings. Here are the most important considerations:Channel Count and Bandwidth
Higher channel counts, like 8 channels, allow for simultaneous testing of multiple signals, which is vital for complex automotive systems. Bandwidth determines the frequency range the scope can accurately measure; a range of 100MHz or more is recommended for detailed engine and sensor diagnostics. Balancing these factors against your typical diagnostic scope is essential to avoid overspending or underperforming.
Portability and Power Options
If you frequently work on the go or in different locations, a portable, handheld scope offers significant advantages. Battery-powered models reduce the need for constant power access, but may sacrifice some features or screen size. Conversely, desktop models often provide larger displays and more robust interfaces but limit mobility.
Connectivity and Compatibility
Look for scopes with USB, Wi-Fi, or Bluetooth capabilities to connect with laptops, tablets, or diagnostic software. Compatibility with automotive protocols like CAN, LIN, or OBD-II can streamline testing. Ensuring your scope supports your existing tools can save time and improve diagnostic accuracy.
Ease of Use and Interface
An intuitive interface with a clear display, responsive touchscreen, or simple controls reduces setup time and minimizes errors. Consider models with pre-set functions for automotive signals, which can speed up testing for less experienced users. Complex menus or clunky controls may hinder workflow under time pressure.
Durability and Maintenance
Automotive environments can be harsh—vibrations, dust, and temperature extremes demand rugged construction. Look for scopes with sturdy cases, sealed connectors, and easy calibration options. Investing in a durable device reduces downtime and long-term costs.
Frequently Asked Questions
Is a higher bandwidth scope always better for automotive diagnostics?
Not necessarily. While higher bandwidth allows for more detailed measurements, most automotive signals are well within the 100-200MHz range, making extremely high bandwidth scopes unnecessary for many applications. Choosing a scope with the right bandwidth ensures you get sufficient detail without overspending on features you won’t use regularly.
Should I prioritize portability or advanced features?
This depends on your typical work environment. Portable scopes are invaluable for mobile mechanics or field diagnostics, but they may lack some advanced measurement capabilities. If most work is done in a workshop, investing in a larger, feature-rich model can provide deeper insights and easier operation.
How important is software compatibility with diagnostic tools?
Software integration can significantly streamline troubleshooting by allowing direct data transfer or automated testing. Check whether the scope supports your preferred diagnostic platforms and protocols. Compatibility reduces manual data entry and helps maintain a smooth workflow.
Can I use a general-purpose oscilloscope for automotive diagnostics?
While a general-purpose scope can work in a pinch, specialized automotive models often include features like automotive-specific triggers, higher channel support, and automotive protocol decoding. These tailored features save time and improve diagnostic precision, making dedicated scopes a worthwhile investment.
Is digital storage important in an automotive oscilloscope?
Yes, digital storage allows you to save waveforms for later analysis, comparison, or sharing with colleagues. This feature is especially useful for troubleshooting intermittent issues or documenting repairs. Look for scopes with sufficient onboard memory or external storage options for your needs.
Conclusion
For those who need a reliable, all-around solution with professional features, the Autel MaxiScope MP608 remains the best overall choice, offering a good balance of performance and ease of use. Budget-conscious technicians or hobbyists should consider the Hantek 1008C, which delivers solid functionality at a lower price point. For mobile mechanics, the Micsig SATO1004 Portable provides excellent portability without sacrificing too much capability. Beginners or those just starting out might find the FNIRSI 1013D Plus a simple, affordable entry point. Ultimately, the right scope depends on your specific diagnostic needs, budget, and working environment.
